150 Megapixel Lenses 3.5μm E.F.L 55mm Φ67 < 0.01% Low Distortion FA Machine Vision Factory Automation Positioning Measurement China Camera Optical Line Scan Lens
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SOYO
Place of Origin:
China
Model Number:
SLS5515M72-150M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
2 days
Related Products
-
120Megapixel Lenses 2.2μm 50mm Φ48 FormatUS$ 1 - 100MOQ: 1 Piece -
China 120Megapixel Lenses 2.2μm 50mm Φ48 FormatUS$ 1 - 100MOQ: 1 Piece
-
Bottle Cap Inspection 360 Degree Out Surface Wall Imaging Lenses Low Distortion Industrial Pharmacy Factory Automation Machine Vision LensUS$ 1 - 100MOQ: 1 Piece
-
Inner Tube Inspection Panoramic SRV3652 Inner Barrel 360° Inspection Megapixel FA Lenses 2/3US$ 1 - 100MOQ: 1 Piece
-
12mm 1.1" 20MP Machine Vision FA LensesUS$ 1 - 100MOQ: 1 Piece
Brand Name
SOYO
Place of Origin
China
Model Number
SLS5515M72-150M

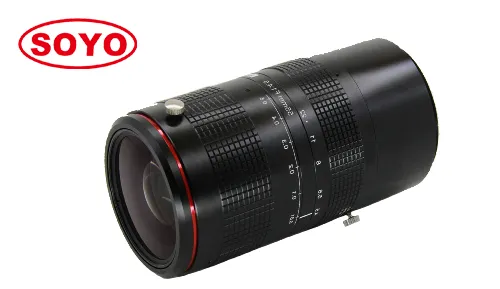

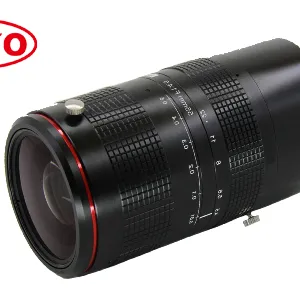

150 Megapixel Lenses 3.5μm E.F.L 55mm Φ67 0.01% Low Distortion FA Machine Vision Factory automation Positioning Measurement China Camera Optical Line Scan Lens
High resolution : 3.5μm 150 Megapixel
Large format: Φ67
Magnification : 0.5x ~ 0.01x
Low distortion : Low distortion 0.01% for measurement and vision
Application : Automation, machine vision, medical, life science, measurement.
Model |
SLS5515M72-150M ( Download ) |
|||||
Magnification(x) |
0.5x |
0.4x |
0.3x |
0.2x |
0.1x |
0.01x |
W.D |
97.55mm |
128.3mm |
179.1mm |
280.6mm |
585.9mm |
6074mm |
Resolution |
3.5μm |
|||||
Distortion |
0.01% |
|||||
Angle of view ° |
29° |
|||||
Max format |
φ67 |
|||||
E.F.L |
55mm |
|||||
Aperture |
M72*P0.75 |
|||||
Dimension |
Φ79.2*69.3mm |
|||||
Mount |
M72*P0.75 |
|||||
