Waterproof Fiber Optic Adapter Outdoor IP68 SC Mini Type for Fibre Splice Enclosure
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP68 Outdoor Waterproof OptiTap Adaptador SC/APC Corning OptiTap AdapterNegotiableMOQ: 1 -
Outdoor Waterproof OptiTap Connector FTTH Fiber Optic Drop Cable Patch CordNegotiableMOQ: 1
-
FTTH SC Connector Drop Cable Dielectric/Tonable Ftth Ip68 Drop Cable AssembliesNegotiableMOQ: 1
-
DYS 1 Core Outdoor Fiber Optic MINI IP Connector Compatible OptiTap SC APC to SC/APC FTTH Drop Cable AssemblyNegotiableMOQ: 1
-
Compatible Fullaxs IP67 Waterproof Optical LC to LC FTTA Patch CordNegotiableMOQ: 1
Product Description

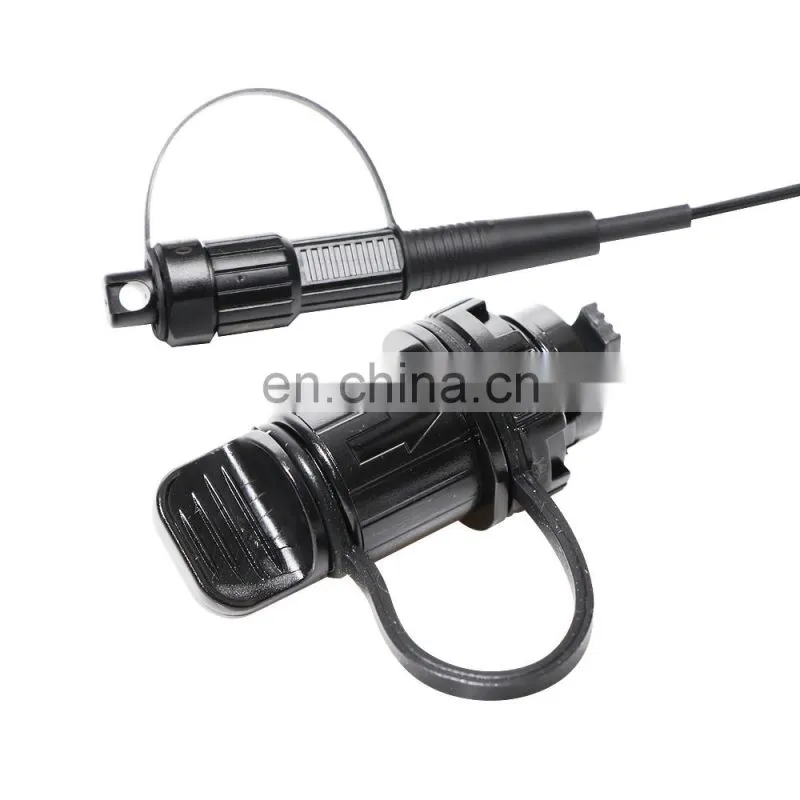

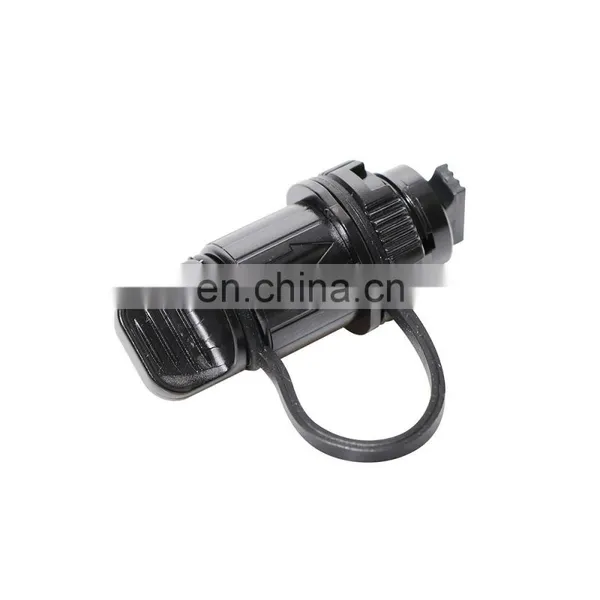

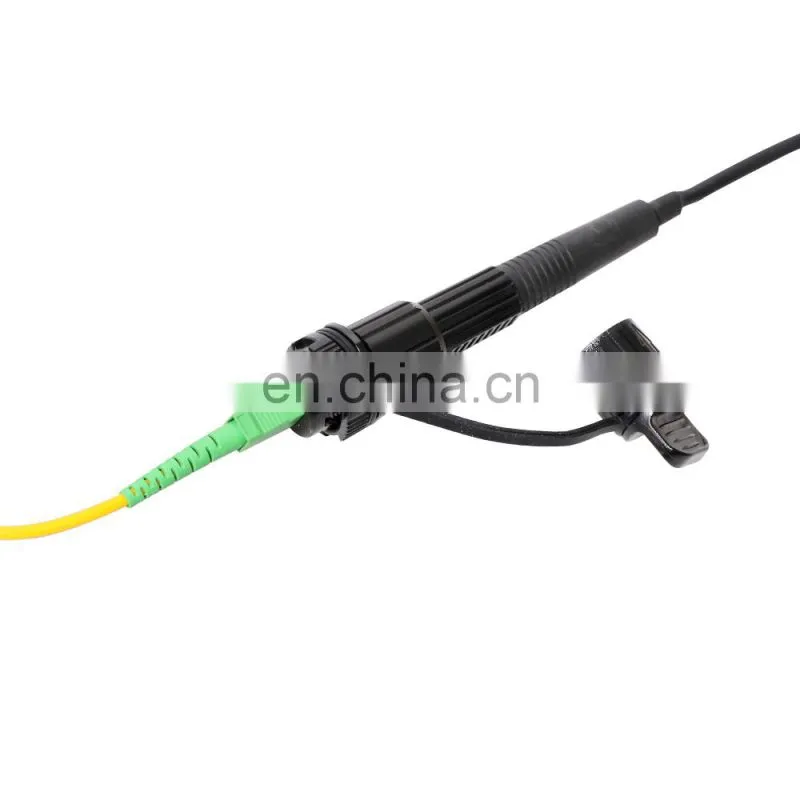

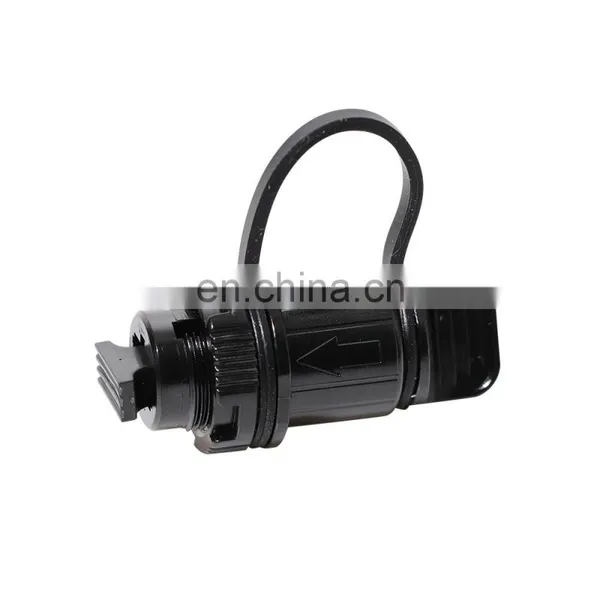

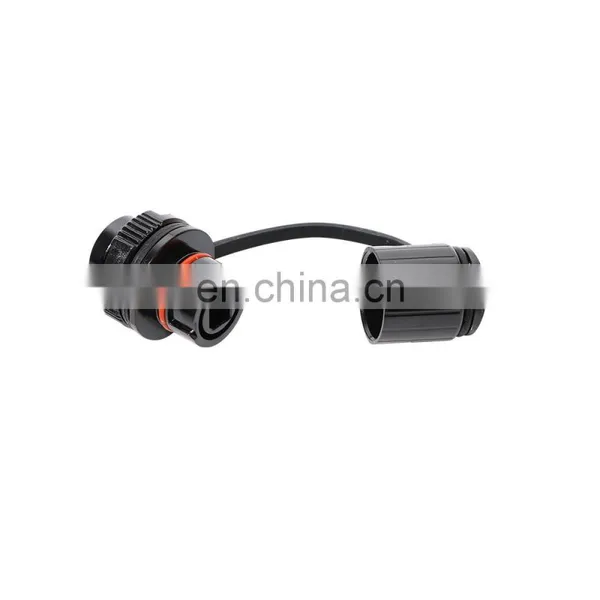

Waterproof Fiber Optic Adapter Outdoor IP68 SC Mini Type for Fibre Splice Enclosure
Outdoor waterproof Mini SC fiber optic adapter compatible with Huawei fastconnect system, which offer a very easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses.

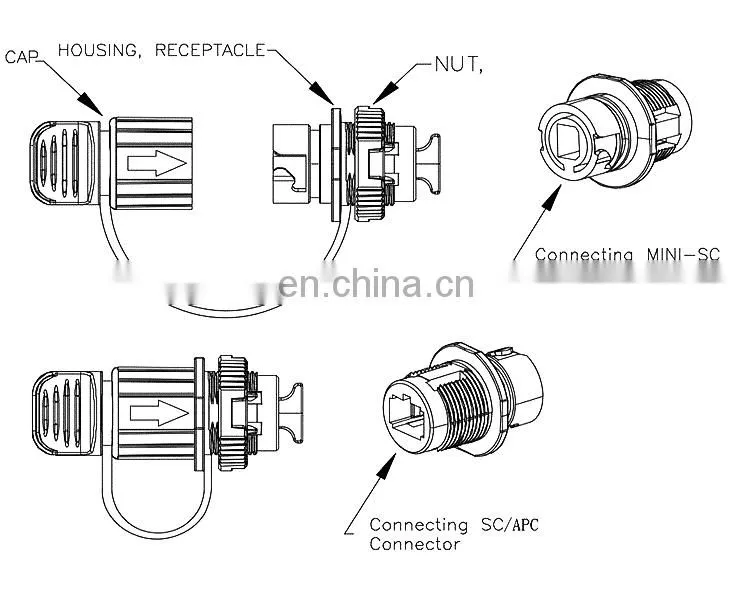

This hardened Mini SC adapter is compatible with HUAWEI MINI SC connectors, easy, environmental seal and mechanical protection for simplex SC style connections. Special fool-proofing design make sure connector has blind-mating function; provides quick installation solutions and has good performance on mating with Huawei Mini SC receptacle. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
Model |
SM MM |
SC Connector Fiber Count |
1 core |
SC SX Adapter Mini SC compatible |
PC, APC |
Insertion Loss Standard type |
less than 0.25dB |
Insertion loss Elite type |
Less than 0.2dB |
Return Loss |
PC >50dB, APC>60dB |
Durability (500 matings) |
less than 0.2dB |
Pulling Force (N) |
450N |
