LGX Module MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette For MPO Patch Panel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OM3 12 Fiber Optic MTP/MPO LC Cassette ModuleNegotiableMOQ: 1 -
24 Core High Density MPO Cassette, Fiber Optic 24 F MPO Box MTP Cassette for 1U Rack Mount MPO ChassisNegotiableMOQ: 1
-
FTTX Solution Provider 24 Core MTP -LC Optical Fiber CassetteNegotiableMOQ: 1
-
OS2 OM3 OM4 12 24 36 Fiber Optic MTP MPO LC Cassette ModuleNegotiableMOQ: 1
-
Fiber Optic 12F 24F OM3 MPO Cassette MTP CassetteNegotiableMOQ: 1
Product Description

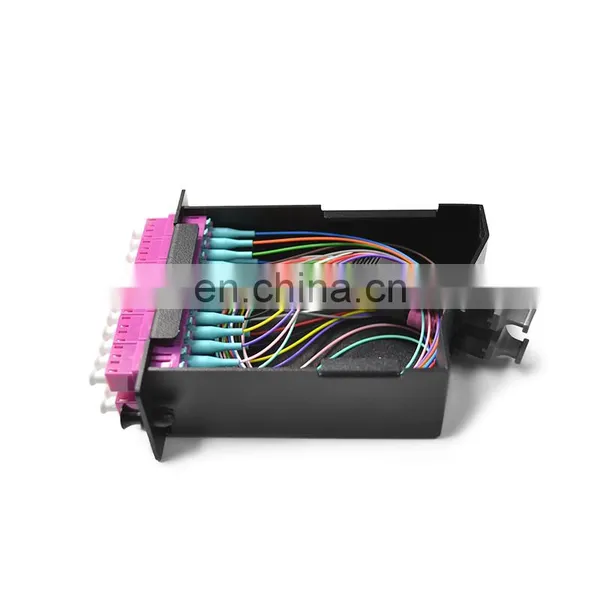

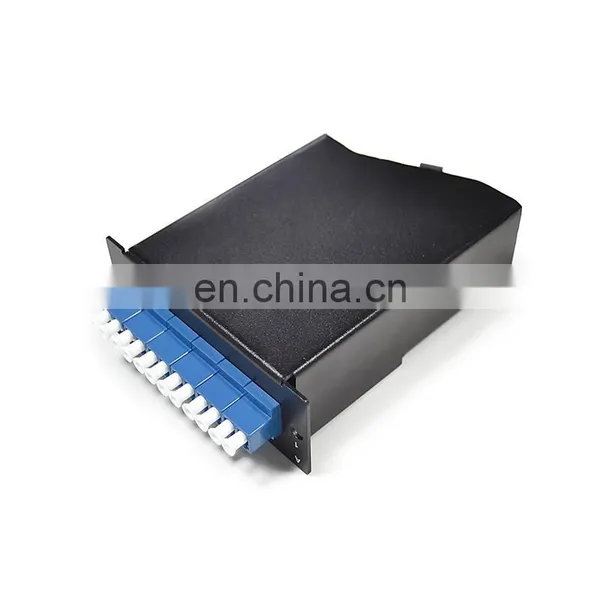

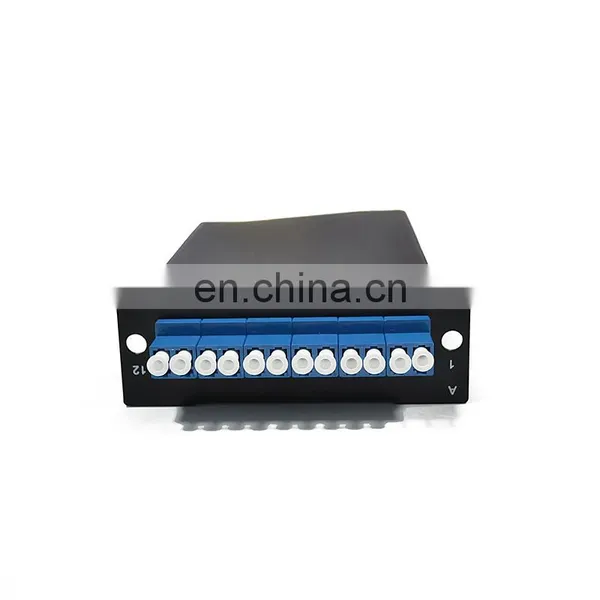

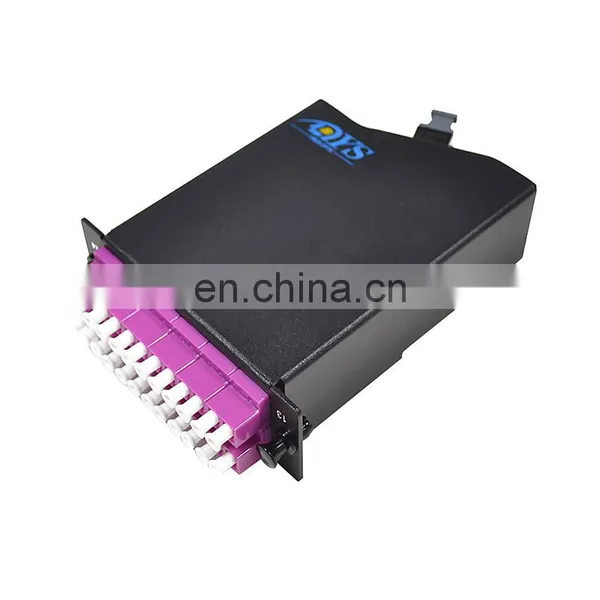

LGX Module MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette For MPO Patch Panel
MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Advantage:
1,Versatile panel with extendable double slide rails for smooth sliding
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available
Type |
Single Mode |
Single Mode |
Multi Mode |
||||||
(APC Polish) |
(UPC Polish) |
(PC Polish) |
|||||||
Fiber Count |
8,12,24 etc. |
8,12,24 etc. |
8,12,24 etc. |
||||||
Fiber Type |
G652D,G657A1 etc. |
G652D,G657A1 etc. |
OM1,OM2,OM3 etc. |
||||||
Maximum Insertion Loss |
Elite |
Standard |
Elite |
Standard |
Elite |
Standard |
|||
Low Loss |
Low Loss |
Low Loss |
|||||||
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.60dB |
||||
Return Loss |
≥60 dB |
≥60 dB |
NA |
||||||
Durability |
≥500 times |
≥500 times |
≥500 times |
||||||
Operating Temperature |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
||||||
Test Wavelength |
1310nm |
1310nm |
1310nm |
||||||
