FOSC-001 48 72 96 Core 2 Input and 2 Output Ports Horizontal Fiber Optic Splice Closure
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Fiber Optic Access Terminal Closure Wall Pole Mounted Joint Closure Fiber Optic Splice ClosureNegotiableMOQ: 1 -
GJS-6016 FTTH Telecom Aerial 16 Cores Fiber Optic Splice ClosureNegotiableMOQ: 1
-
288 Cores In Line Type Horizontal Fiber Optic Splice Closure Enclosure FromNegotiableMOQ: 1
-
High Quality 48 96 Core Optical Fiber Joint Closure/2 Inlet 2 Outlet Fiber Optic Joint Closure/Mini Fiber Optic Splice ClosureNegotiableMOQ: 1
-
Manufacturer FTTH Outdoor 144 288 576 Core Fiber Optic Cross Connect Cabinet Telecom Cabinet Optical Distribution CabinetNegotiableMOQ: 1
Product Description

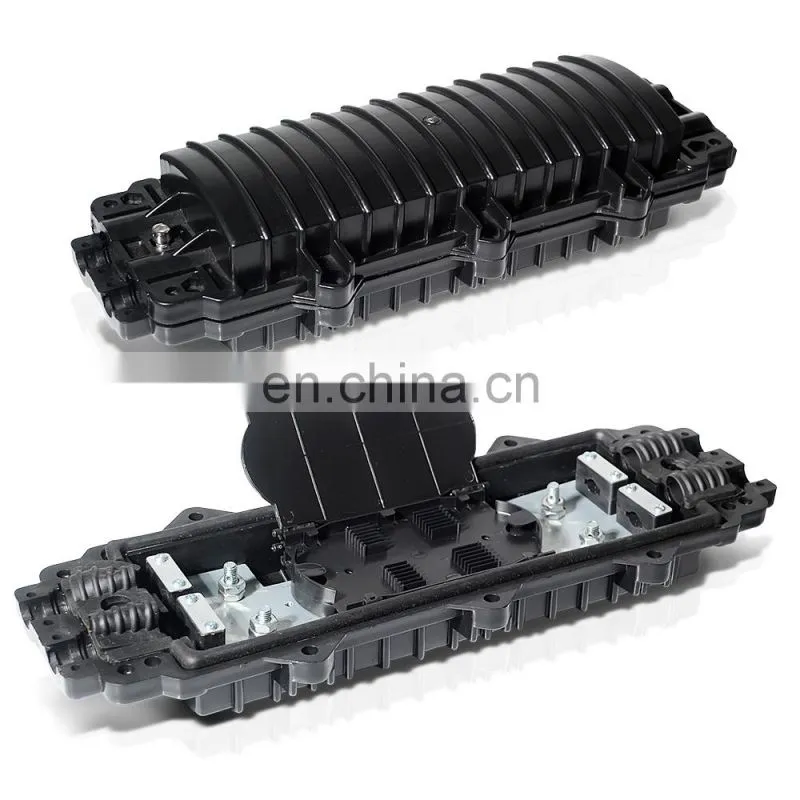

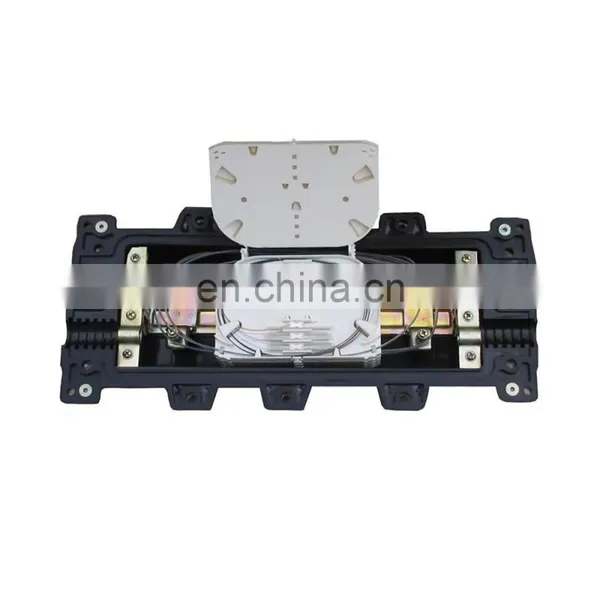

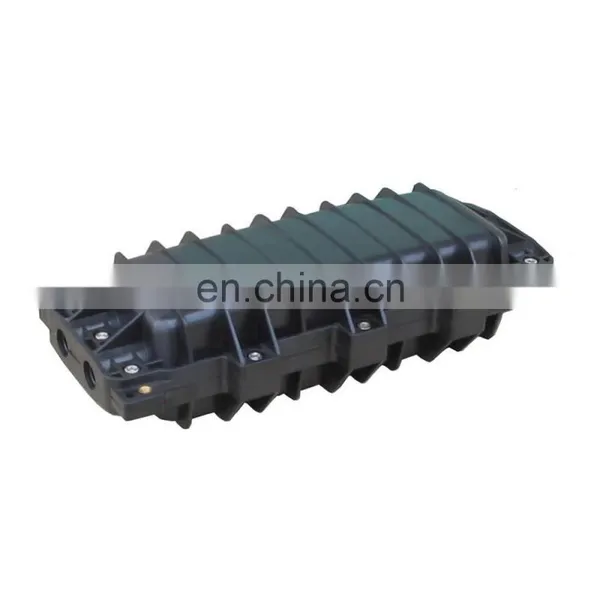

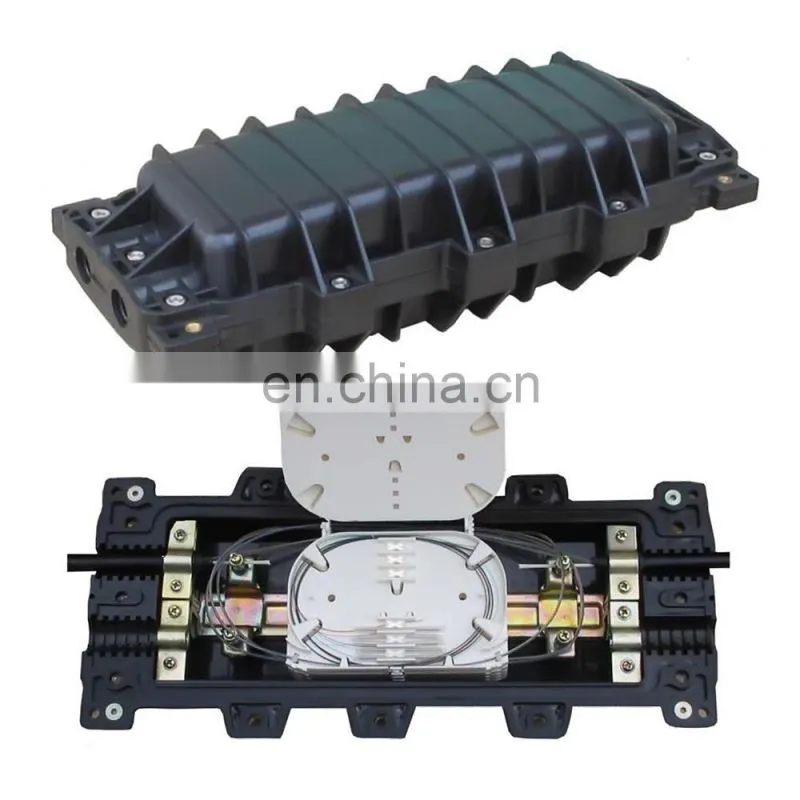

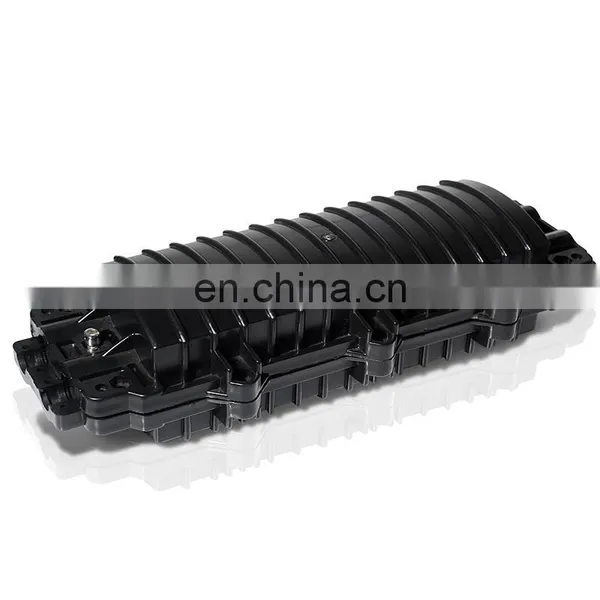

FOSC-001 48 72 96 core 2 input and 2 output ports horizontal fiber optic splice closure
FOSC-001 provide with 4 fiber cable in-out round ports and the cable diameter is from Ф10-Ф22. It can be used in aerial, duct, and direct buried application. This product is made from the high-quality and with the mechanical sealing structure filled with the sealing material. The external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing.
Available for duct, Aerial, Direct buried |
||
Item |
FOSC-001 |
|
Dimension (mm) |
435×190×120 |
|
Weight (Kg) |
2.8 |
|
Cable diameter (mm) |
Φ10-Φ22 |
|
Cable entry ports |
Two cable entry port on each end |
|
Max capacity of fiber splice |
24(single) |
|
Max Capacity of splice tray |
8 |
|
Max capacity |
192(single) |
|
Sealing structure |
Sticky cincture |
|

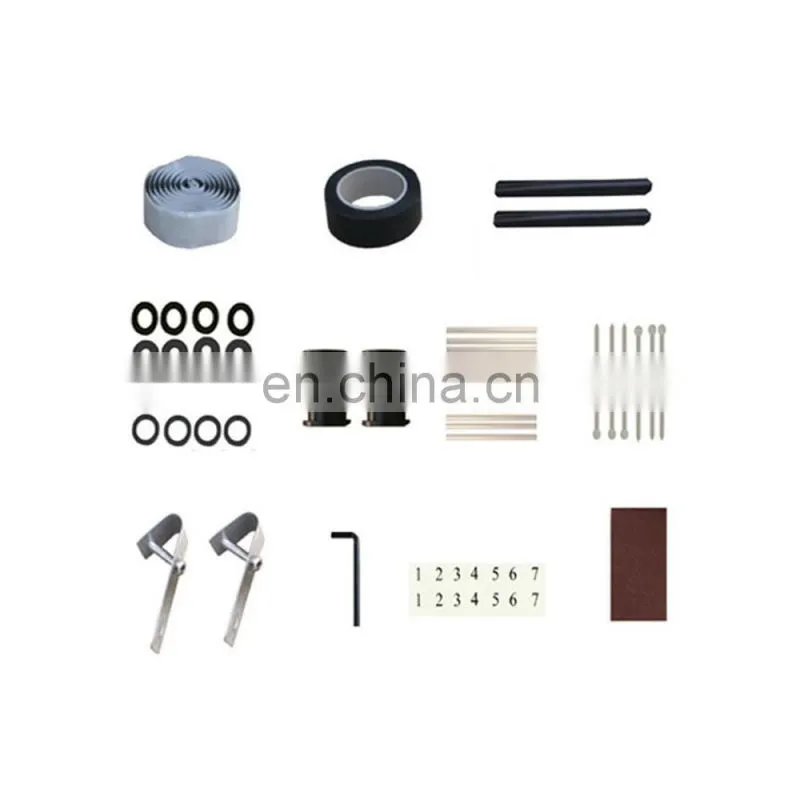

Kit contents
Description |
Type |
Quantity |
Splice protector tube |
According to the fiber cores |
|
Sticky cincture |
Widen |
1pcs |
Sticky cincture |
Narrow |
2pcs |
Insulated robber belt |
1pcs |
|
Cables ties |
4×splice tray |
|
Sealing washer |
4sets |
|
Block |
2 ( piece) |
|
Marking note |
4×fiber cores |
|
Hanging hook |
Aerial-hanger |
1pair |
Allen wrench |
6mm |
1pcs |
Pack information
Inner carton dimension(mm） |
Inner carton weight（kg） |
Outside carton dimension（mm） |
Outside carton weight（kg） |
No of units per carton（pcs） |
496*196*138 |
2.8 |
515*425*575 |
23．8 |
8 |
