8-28mm FTTH Armored Cable Stripper Longitudinal Horizontal Cable Sheath Cutter FTTH Armored Fiber Cable Slitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 4-28mm Transverse Armoured Cable Stripping Knife Optical Cable Stripper FTTH Armored Fiber Cable SlitterNegotiableMOQ: 1 -
High Quality FTTH Armored Cable Stripper Fiber Optic Cable Slitter Fiber Cutter for 8-28mm Fiber Optic Cable StripperNegotiableMOQ: 1
-
Ftth High Precision Fiber Optic Cleaver Cutting Tool Machine Auto Rotating Blades FC-6s Optical Fiber CleaverNegotiableMOQ: 1
-
FTTH Network Tool Fiber Optic Equipment Cleaver Fiber Cleaver Fc-6sNegotiableMOQ: 1
-
DYS High Precision for Fusion Splicing Optical Fiber Cleaver Tool Kit Fiber Optic Cutting Cutter Korea ImportedNegotiableMOQ: 1
Product Description

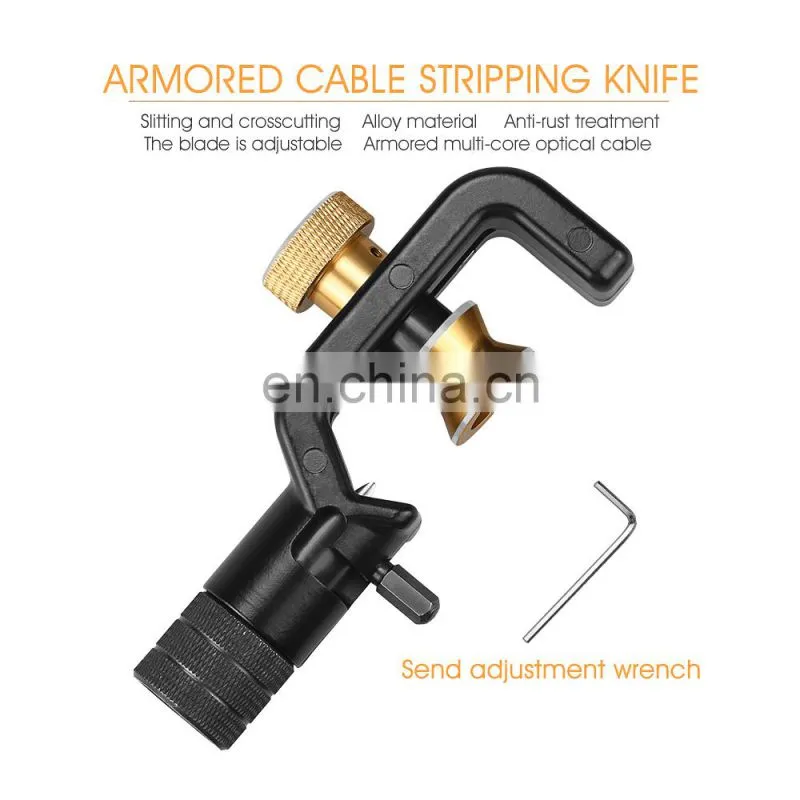

8-28mm FTTH armored cable stripper Longitudinal horizontal cable sheath cutter FTTH Armored Fiber Cable Slitter

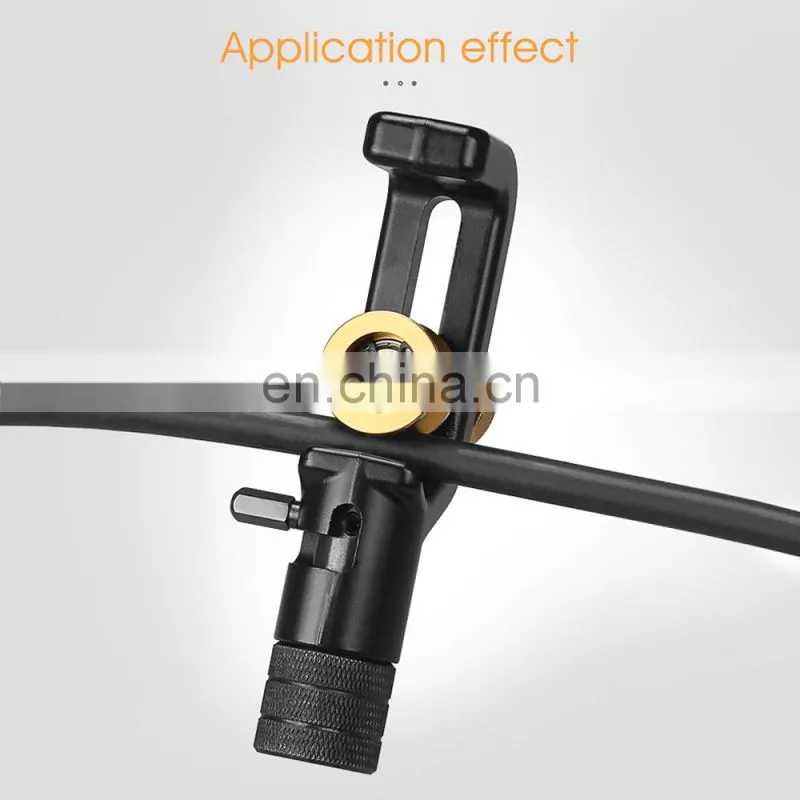

1. The tool design is suitable for multi-core cables with sheathed or armored jackets. Its main purpose is to cut off the armor sheath of the outer layer of the cable to obtain the internal fiber optic cable.

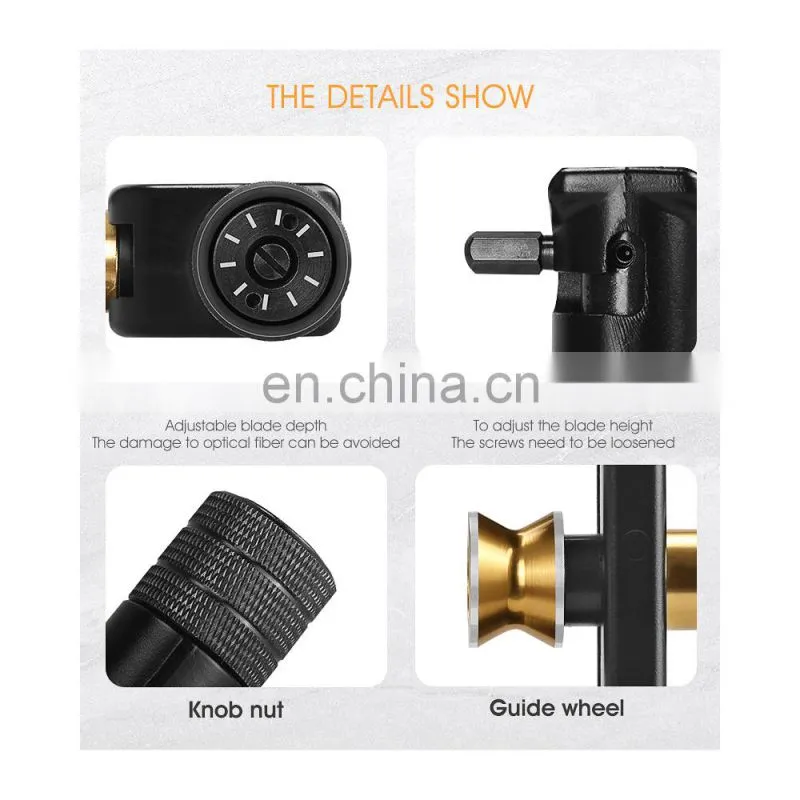

2. The tool is designed with a precision adjustable blade to avoid damage to the fiber. Adjustable stripping outer diameter 4-10 mm, cutting depth 5.5 mm. Suitable for different skin thicknesses. The tool can be replaced with a blade.

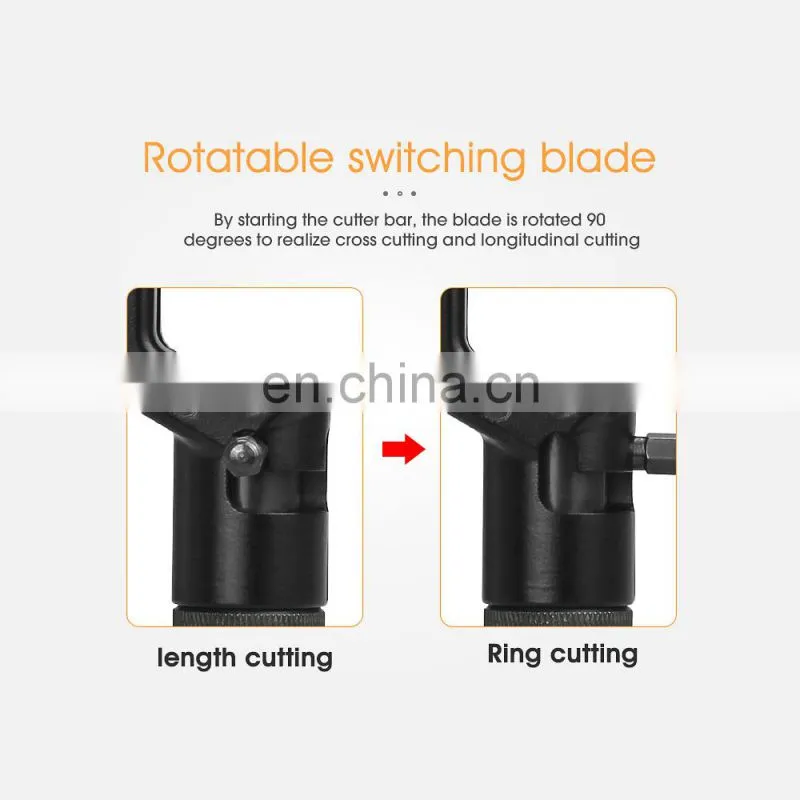

3.Rotate the pull rod to rotate the blade 90o, so that the window stripping can realize the slit or loop cut conversion.

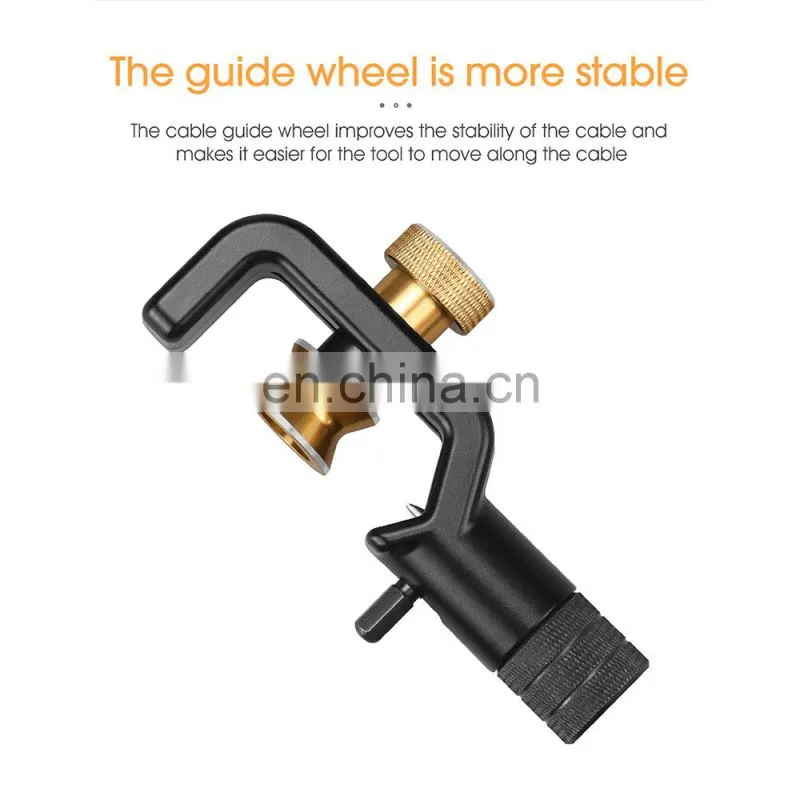

4. Aluminium steel structure anode treatment, drum type cable follower, to ensure the stability of the cable during the stripping process, the tool is easy to extend the cable operation direction.

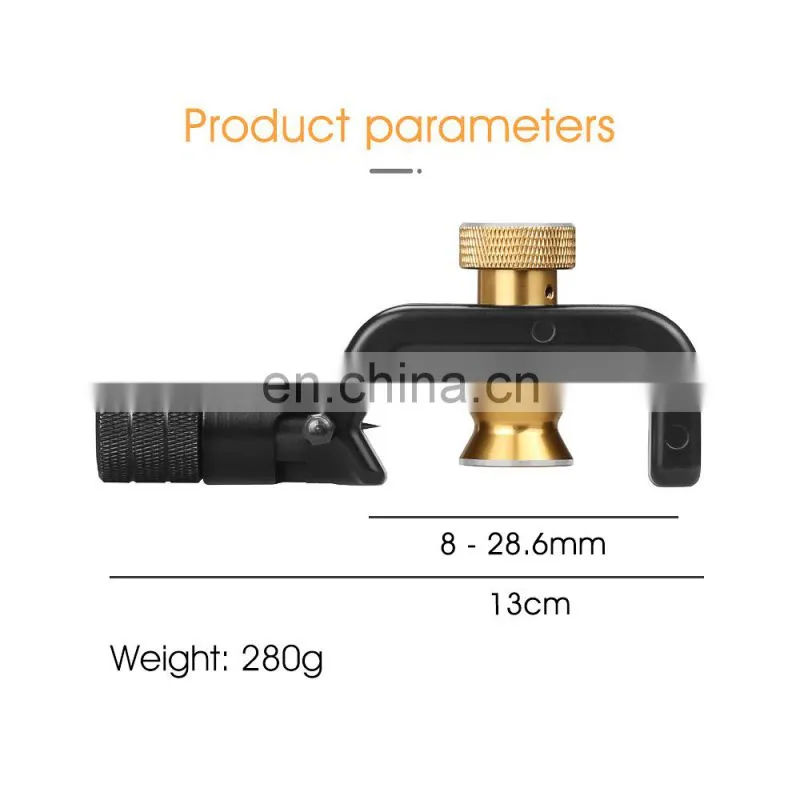

Product name |
Armoured horizontal vertical cable slitter |
Model |
ASC-2 |
Suit for cable diameter |
8-28mm 4-10mm |
Product size |
130*57*25mm |
Product weight |
269g |
Rotation angle |
90° |
Function |
Slitting for Armored fiber cable jacket |

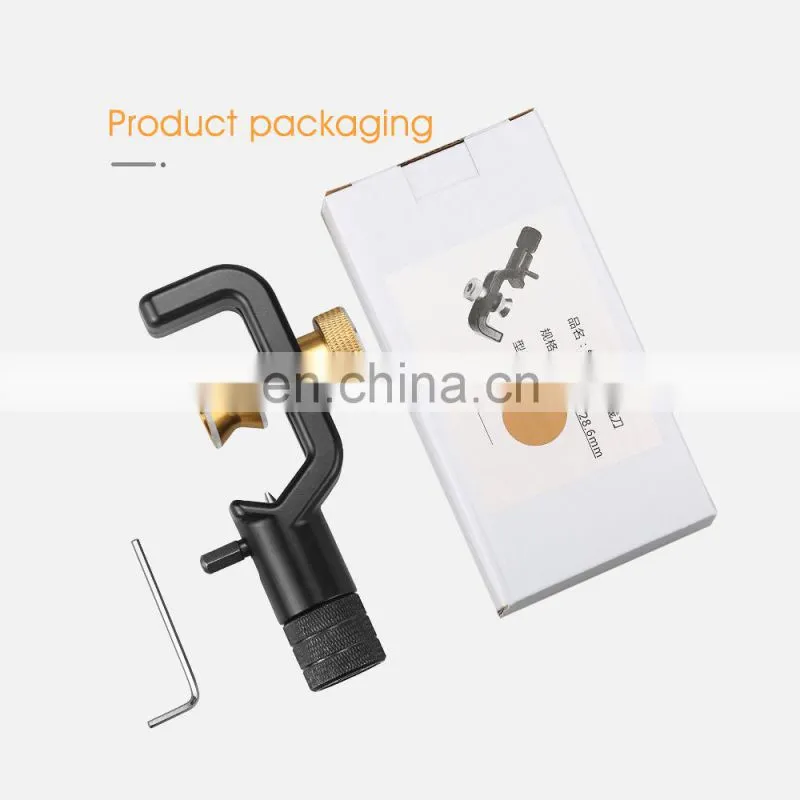

Packing |
Blister packaging |
Company Profile
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
End User
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
