Marine electronics maritime navigation communication Furuno FAR-2228 BB 22X8 series X BAND 25KW X BAND ship boat marine radar



Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.



Specifications

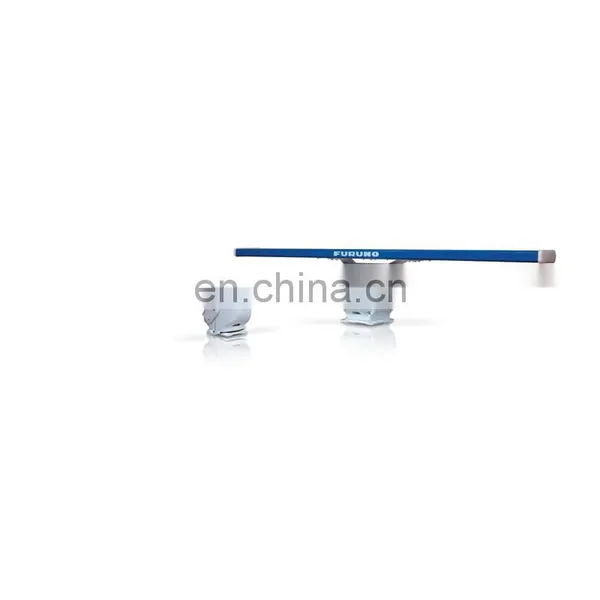

ANTENNA

Peak Output Power
FAR-2218-BB:12 kW
FAR-2228-BB:25 kW
FAR-2228-NXT-BB: 600 W (equivalent to magnetron radar 25 kW)
FAR-2238S-BB:30 kW
FAR-2238S-NXT-BB:250 W (equivalent to magnetron radar 30 kW)
Type
X-band (Magnetron) 9410 MHz ±30 MHz, P0N
X-band (Solid State) CH1 P0N: 9403.75 MHz / Q0N: 9423.75 MHz ± 5 MHz or CH2 P0N: 9413.75 MHz / Q0N: 9433.75 MHz ± 5 MHz
S-band (Magnetron) 3050 MHz ±30 MHz, P0N
S-band (Solid state) CH1 P0N: 3043.75 MHz/ Q0N: 3063.75 MHz ±5 MHz or CH2 P0N: 3053.75 MHz/ Q0N: 3073.75 MHz ±5 MHz
Beam Width (Horizontal)
XN12CF:1.9°
XN20CF:1.23°
XN24CF*:0.95°
SN24CF:2.6°
SN30CF:2.3°
SN36CF:1.8°
*: 24 rpm only.
Beam Width (Vertical)
XN12CF:20°
XN20CF:20°
XN24CF:20°
SN24CF:25°
SN30CF:25°
SN36CF:25°
Antenna Rotation Speed
24 rpm or 42 rpm (for high speed craft)

DISPLAY

Display Unit
Optional supply
Display Mode
Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up
Other Mode / Functions

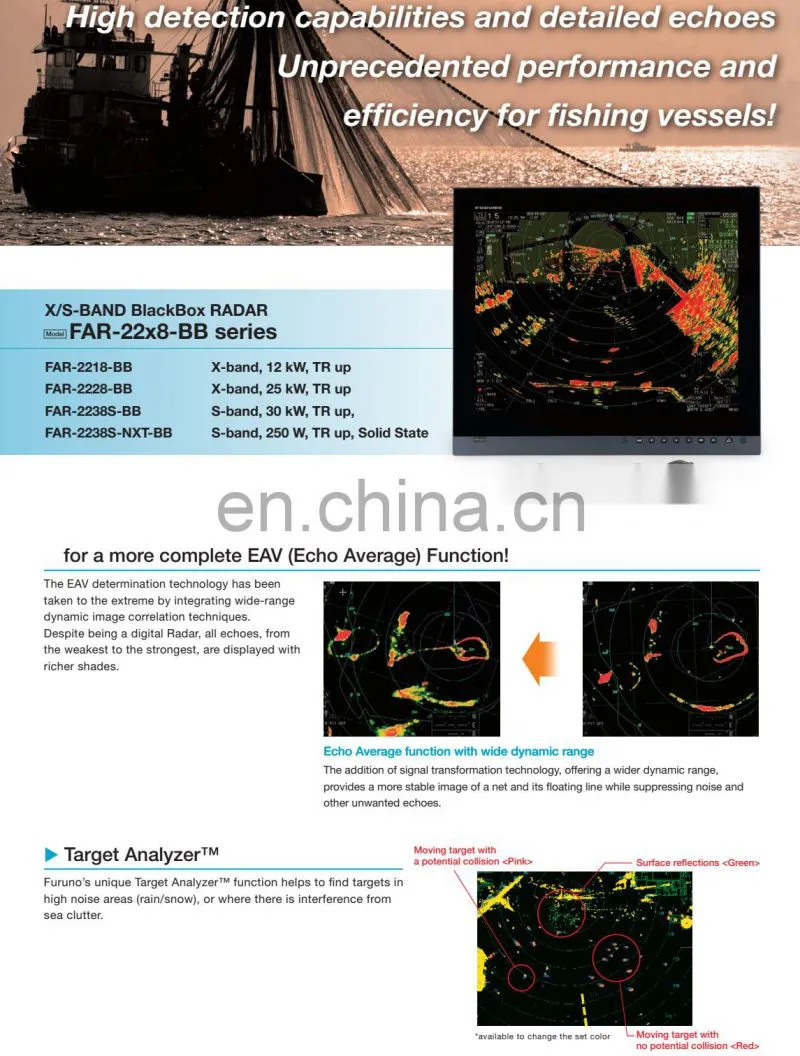

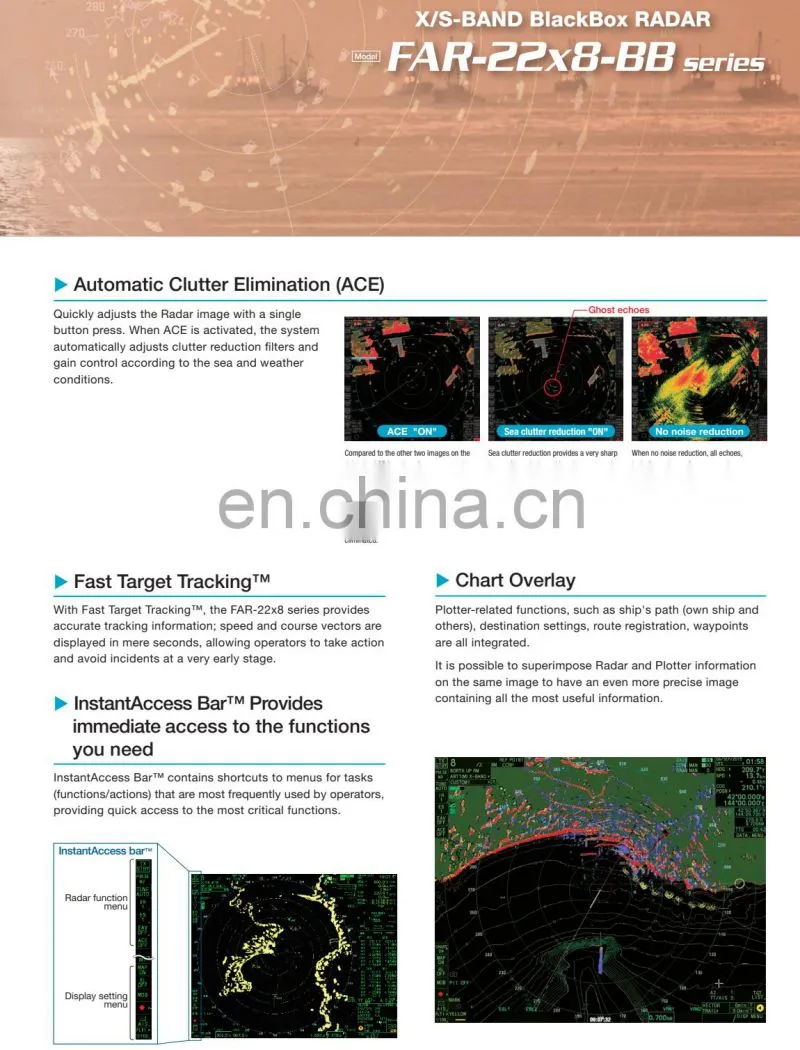

Target Analyzer™, Fast Target Tracking™ (TT), EAV (Echo Average), Automatic Clutter Elimination (ACE), AIS, Echo Trails

ENVIRONMENT

Temperature
Antenna unit :-25°C to +55°C (storage: -25°C to +70°C)
Indoor units :-15°C to +55°C (storage: -20°C to +70°C)
Waterproofing
Antenna unit:IP56
Processor unit:IP22
Control unit:IP20 (RCU-014/015/016), IP22 (RCU-031)
HUB:IP20 (HUB-100), IP22 (HUB-3000)

POWER SUPPLY

Power Supply / Consumption Current
Processor unit (w/ antenna unit)
FAR-2218/2318:
100-230 VAC: 2.1-1.0 (2.9-1.3 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2 V): 5.4 A (9.0 A)
FAR-2228/2328:
100-230 VAC: 2.3-1.1 (3.2-1.4 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2V): 8.9 A (12.4 A)
FAR-2228-NXT/2328-NXT:
100-230 VAC: 2.1-1.1 A (2,9-1.3 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2V): 8.2 A (11.1 A)
FAR-2238S:
100-230 VAC: 3.2-1.5 (5.6-2.5 A), 1 phase, 50-60Hz
FAR-2238S-NXT:
100-230 VAC: 2.6-1.2 (5.1-2.2) A, 1 phase, 50-60 Hz (A): 42 rpm

HUB (option)
100-230 VAC: 0.1 A max. 1 phase, 50/60 Hz

De-icer (option)
100-115/220-230 VAC: 2.6/1.3 A, 1 phase, 50-60 Hz
