lease contact with me before purchasing for the shipment, product price and configuration.
If you want to make bulk purchase or be our agent, please contact with us.

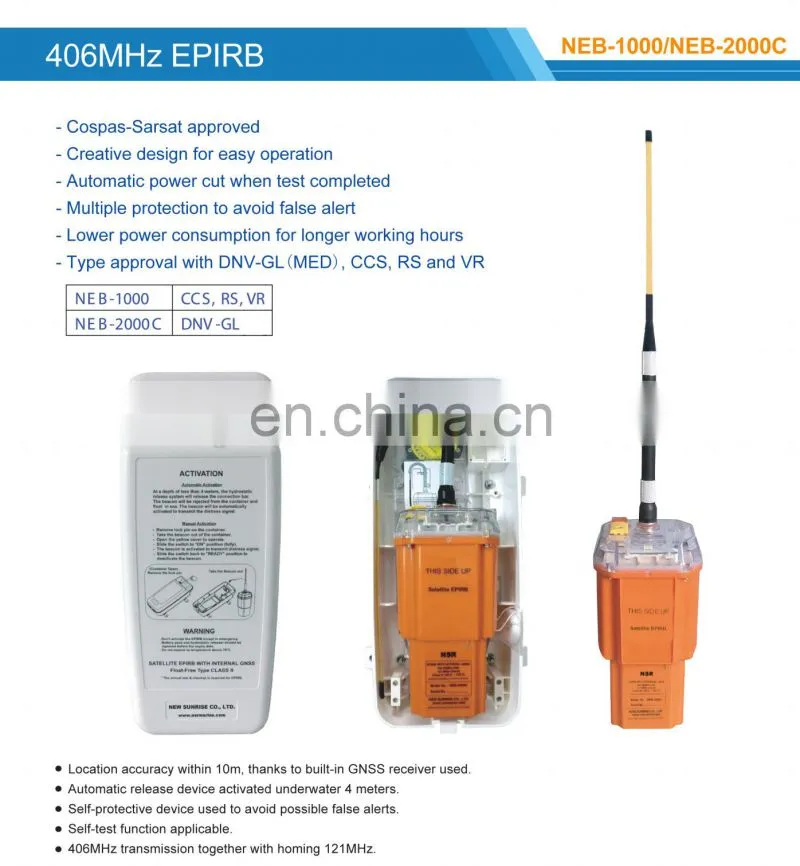

[FEATURES]
- Designed to use for alert search and rescue service at sea. Confirming to IMO and IEC rules.
- Location accuracy within 10m, thanks to built-in GNSS receiver used.
- Automatic release device activated underwater 4 meters.
- Self-protective device used to avoid possible false alarms.
- Self-test function applicable.
- 406MHz transmission together with homing 121MHz.
- Cospas-Sarsat approved.
- Creative design for easy operation.
- Automatic power cut when test completed.
- Multiple protection to avoid false alert.
- Lower power consumption for longer working hours.
- CCS/DNV-GL/RS/VR type approval.
[SPECIFICATIONS]
| General | |
| Model: | NEB-1000 / NEB-2000C |
| Case Material: | Special ABS+PC |
| Color: | Orange |
| IP Grade: | IP67 |
| Buoyant: | Yes |
| Deployment: | Automatic hydrostatic release or Manual switch control |
| Accessories: | Hydrostatic Release Unit |
| Physical | |
| Weight: |
1.8 kg (Beacon), 1.6 kg (Container) |
| Size: | 116 x 116x 692 mm (Beacon), 220 x 415 x 144 mm (Container) |
| 406 MHz Transmitter | |
| Frequency: | 406.040MHz |
| Output Power: | 5W ± 2dB |
| 121.5 MHz Homer | |
| Frequency: | 121.5MHz |
| Output Power: | 50mW ± 3dB |
| GPS Receiver | |
| Type: | Built-in GNSS antenna |
| Center Frequency: | L1-1575.42MHz |
| Satellites Tracked: | 50 |
| Battery | |
| Type: | NBT300 / NBT400 |
| Total Voltage Rating: | 14.4 V (4ea x 3.6V each) |
| Storage: | max 5 years on board (see Note 1) |
| Operating: | ≥48hrs. (-20℃) |
| Environment | |
| Operating Temperature: | -20℃ ~ +55℃ |
| Storage Temperature: | -30℃ ~ +70℃ |
*Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 5 years after supplied to a vessel.
