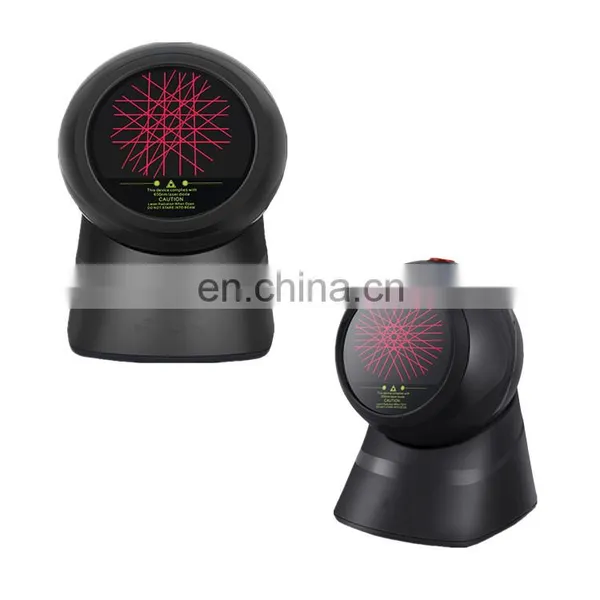

Factory price 1D laser scanner high speed 1500times/sec
|
Product Specification: OBC-9000 1D Wired Laser Omni-directional Barcode Scanner |
|
|
Scanner parameters: |
|
|
Light source |
Visible Laser Diode |
|
Wave length |
650nm |
|
Scan mode |
20-line scanning |
|
Scan speed |
1500times/sec |
|
Scan distance |
0-200mm |
|
Scan window |
128mm @ 200mm |
|
Scan direction |
5 scan directions |
|
Resolution |
4 mil |
|
Decoding capability |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Postal Code, etc. |
|
Interface |
USB,RS232,PS2 |
|
Print contrast |
30% |
|
Error rate |
1/5 million |
|
Indicator |
Two color LED (green & red) |
|
Beeper Operation |
Programmable tone & volume |
|
Physical parameter
|
L*W*H: 110mm*100mm*155mm |
|
Material |
ABS+PC |
|
Cable |
2 meters long |
|
Electrical parameter |
Voltage: 5V; Electric current: 200mA; Power: 1.0 Watts |
|
Laser safety |
CDRH Class IIa: IEC 60825-1: Class I |
|
EMC |
CE & FCC DOC compliance |
|
Environmental parameter |
Operating temperature: -20℃-45℃ Storage temperature: -20℃-60℃ Humidity: relative humidity 5%-95% (non-condensing) Light level: sunlight 4.000lux Max |
|
Shock resistance |
Designed to withstand 2 meters drop on concrete surface |
Click Here For More Information!
Click here for more information!
Click here for more information!
FAQ:
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.
Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/BT/ Ibutton...etc)
Q3. What about minimum order quantity?
A: MOQ=1, since we have all materials in stock.
Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test.
Sample with faster lead time 1-3 days . The bulk production only need 5-7 days according to quantity and color request.
Q5. What’s your payment terms?
A: Bank transfer, Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period?
A: 1-2 Years
Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment .
2. we also accept the inspection by the third part you appointed.
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.
Q8.How do you make our business long-term and good
relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
