Home > Industrial Equipment & Components > Engine & Part > Engine Parts > FG-500C High Reliability Meeting the Requirements of Long-endurance Applications Fiber Optic Gyro Compass System

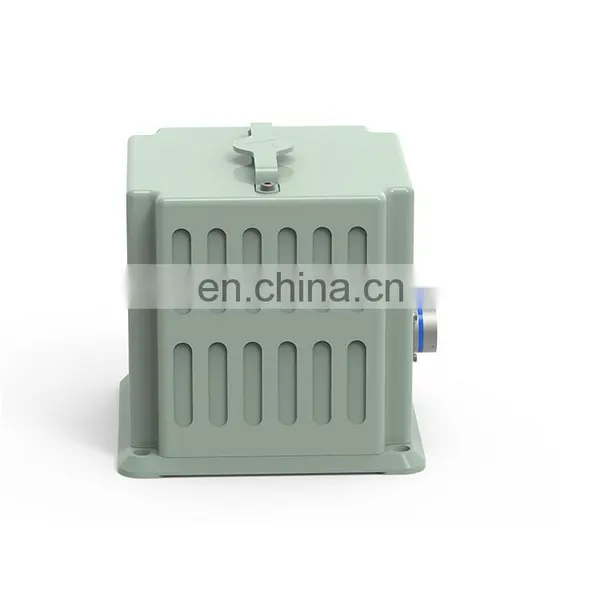

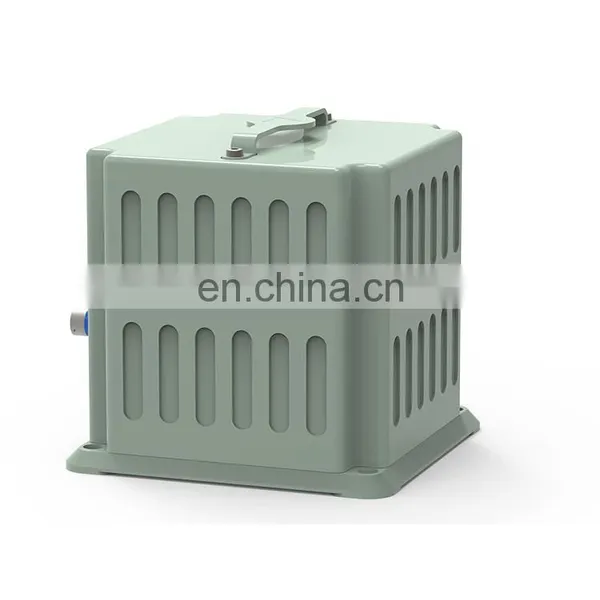

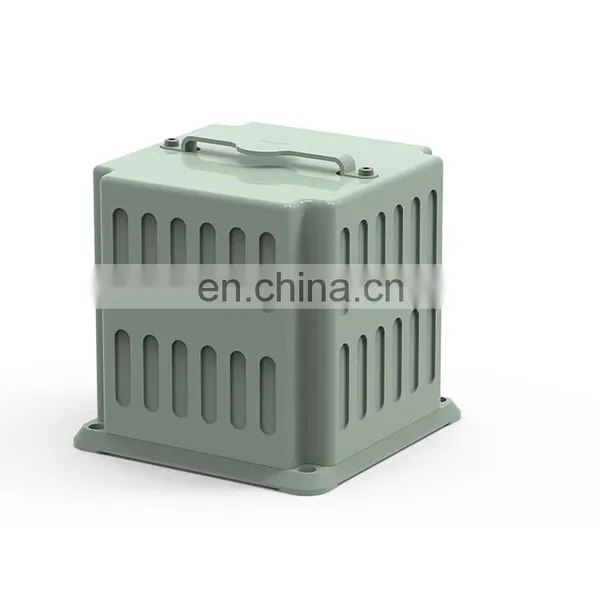

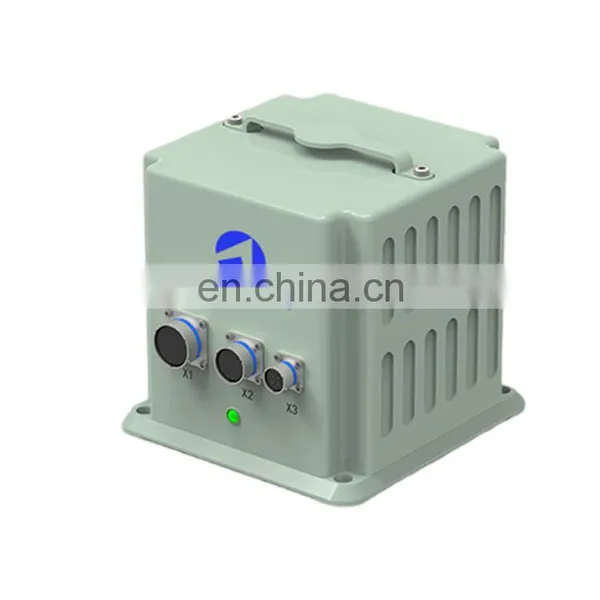

FG-500C High Reliability Meeting the Requirements of Long-endurance Applications Fiber Optic Gyro Compass System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FG-980S Inertial Navigation SystemNegotiableMOQ: 1 -
INEM-100 Fiber Optic Gyro Compass System Attitude Reference System and Motion SensorNegotiableMOQ: 1
-
FG-700B Fiber Optic Gyrocompass And Attitude Reference SystemNegotiableMOQ: 1
-
PTK-20 Fiber Optic Gyro Compass System Inertial Measuring System for Pipeline SurveyingNegotiableMOQ: 1
-
FG-800A Model Fog Attitude And Heading ReferenceNegotiableMOQ: 1
FG-500C High reliability meeting the requirements of long-endurance applications Fiber Optic Gyro Compass System
Settling Time |
Static Align: 10min Dynamic Align: 15min |
||
Accuracy |
Roll & Pitch (1σ) |
0.4° |
|
Heading(1σ) |
0.2° |
||
Dynamic Range |
Angular Rate |
±400°/s |
|
Acceleration |
±12g |
||
Power Consumption |
24VDC/20W |
||
Interface |
RS-232/RS-422/CAN |
||
Dimension |
Navigation unit: 207mm×194mm×192mm |
||
Weight |
4.5kg(excluding receiving antenna) |
||
