Multifunction Agriculture Dryer for Sawdust, Chicken Manure, Wood Chips, Etc
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coal Briquettes DryerNegotiableMOQ: 1 -
CE Certificates Mesh Belt Dryer for BriquettesNegotiableMOQ: 1
-
Coal Mineral Powder Fly Ash Dryer MachineNegotiableMOQ: 1
-
Industrial Rotary Drum Drying MachineNegotiableMOQ: 1
-
KeHua Rotary Dryer/Rotay Drum Dryer/Dryer Machine Used For Cement Plant/CoalNegotiableMOQ: 1
Why Choose Us
Products Description

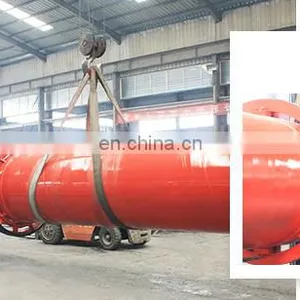

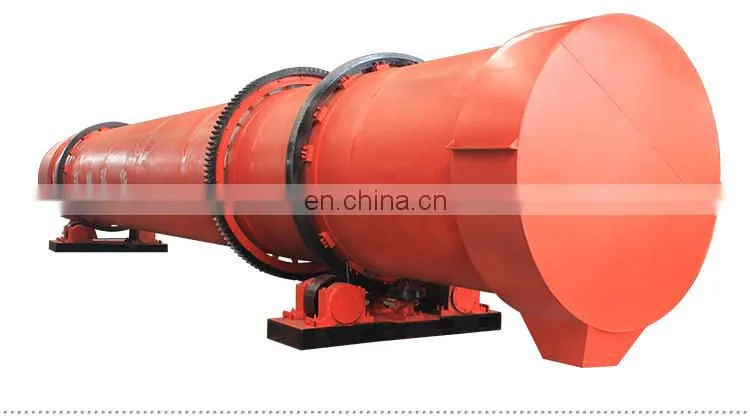

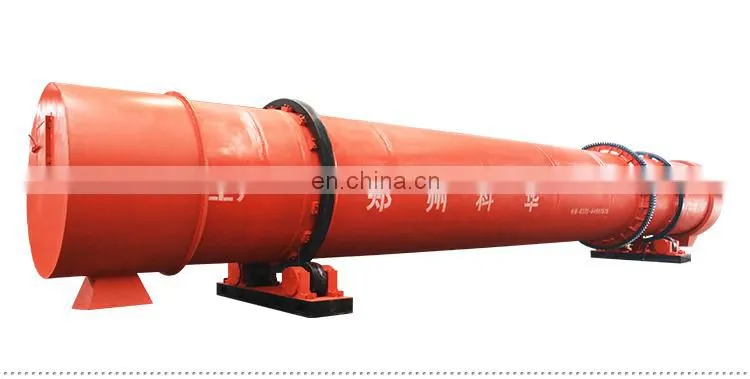

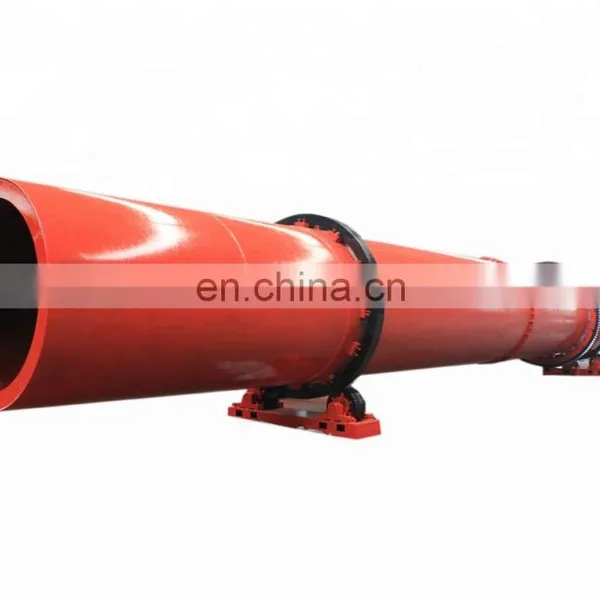

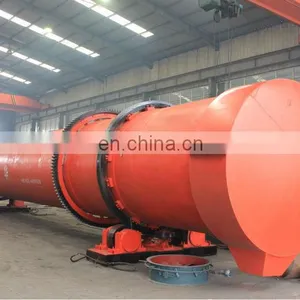

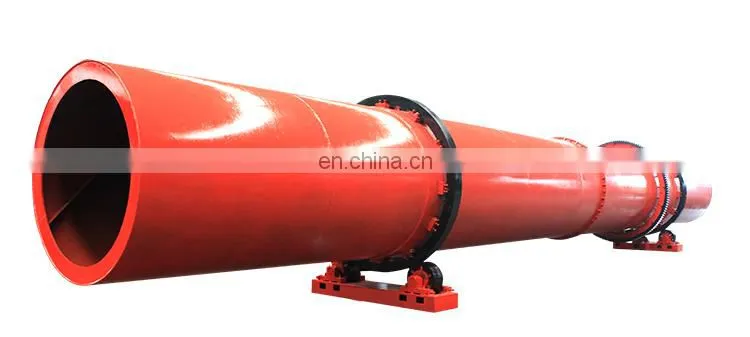

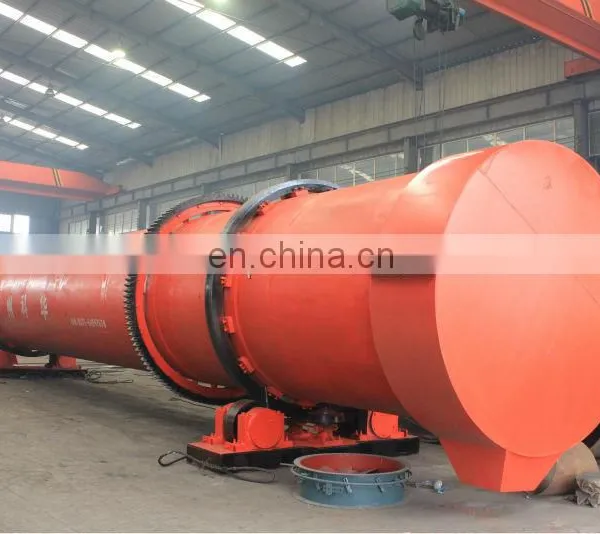

Rotary Dryer
Rotary dryer is a kind of drying equipment used to minimize the moisture content of the materials containing much water to below 5% in the end. It is used for drying coal, sand, sludge, fly ash and iron ore powder and various mineral powder and biomass materials. It is widely used in building materials industry, metallurgy, cement and mining industry. It has features of reasonable structure, excellent fabrication, high production, low consumption, economical & environmental etc.
Model
(mm)
|
Gradient
(°)
|
Speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Weight
(t)
|
ZKRDφ600×6000 |
3-5 |
3-8 |
3 |
0.5-1.5 |
2.9 |
ZKRDφ800×8000 |
3-5 |
3-8 |
4 |
0.8-2.0 |
3.5 |
ZKRDφ800×10000 |
3-5 |
3-8 |
4 |
0.8-2.5 |
5.6 |
ZKRDφ1000×10000 |
3-5 |
3-8 |
5.5 |
1.0-3.5 |
6.7 |
ZKRDφ1200×10000 |
3-5 |
3-8 |
7.5 |
1.8-5 |
14.5 |
ZKRDφ1200×12000 |
3-5 |
3-8 |
11 |
2-6 |
14.8 |
ZKRDφ1500×12000 |
3-5 |
2-6 |
15 |
3.5-9 |
17.8 |
ZKRDφ1800×12000 |
3-5 |
2-6 |
18.5 |
5-12 |
25 |
ZKRDφ1800×14000 |
3-5 |
2-6 |
18.5 |
5-15 |
27 |
ZKRDφ1800×20000 |
3-5 |
2-6 |
22 |
8-20 |
30 |
ZKRDφ2000×18000 |
3-5 |
2-6 |
30 |
8-23 |
45 |
ZKRDφ2200×18000 |
3-5 |
1.5-6 |
37 |
10-25 |
48 |
ZKRDφ2200×20000 |
3-5 |
1.5-6 |
37 |
12-28 |
56 |
ZKRDφ2400×20000 |
3-5 |
1.5-5 |
45 |
18-30 |
60 |
ZKRDφ2800×20000 |
3-5 |
1.5-5 |
55 |
20-35 |
68 |
ZKRDφ3000×20000 |
3-5 |
1.5-5 |
55 |
25-40 |
78 |
ZKRDφ3000×25000 |
3-5 |
1.5-5 |
75 |
30-45 |
104.9 |
Note: Above technical parameter just for reference, it can be designed according to customer's actual situation.

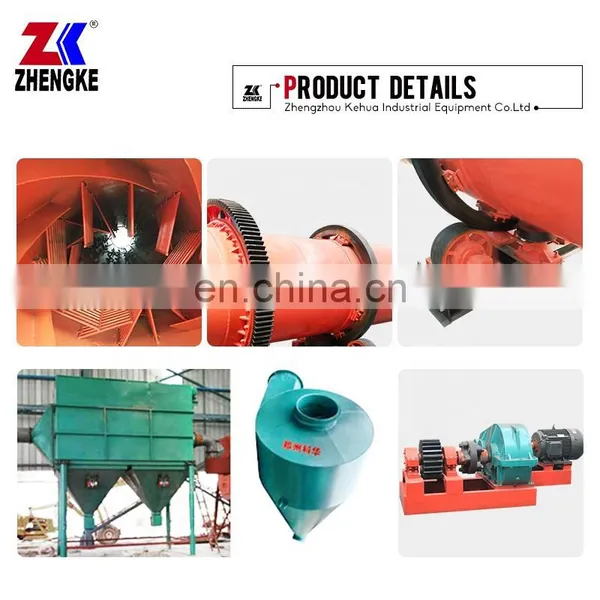

Details Images

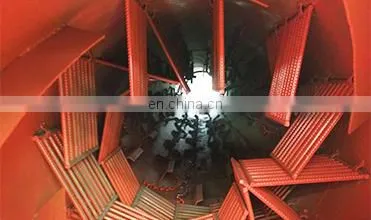

Inner Structure
This part mainly about chain, lifting board, removable racket. These accessories can prevent sticky materials from sticking to the drum barrel so that the rotary dryer can dry the material effectively.

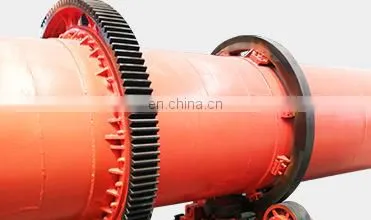

It is the important accessory of the transmission part. It’s connected to the motor and reducer to drive the rotation of the rotary dryer.

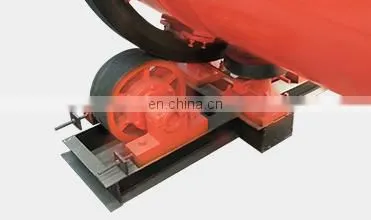

It is an indispensable part of the rotary dryer. They support the drum barrel and help the dryer runs smoothly.

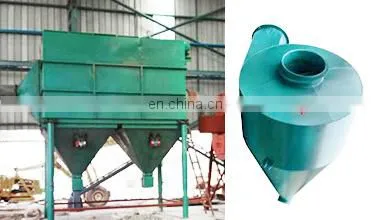

It is the important part of the drying system. It can purify the dust of exhausted humidity air to protect the environment.

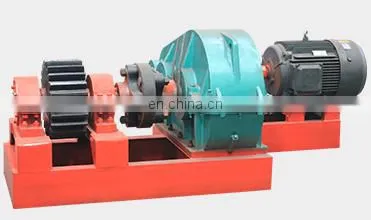

This part mainly consists of motor and reduction gears and pinion. The pinion is used to connect with the big gear to drive the rotary dryer.
Related Products
Rotary Cutting Machine
Remove Dust
Double Shaft Mixer
About Us
Zhengzhou Kehua Industrial Equipment Co., Ltd. is a trustworthy and specialist designer and manufacturer with more than 30 years of producing drying machine,briquette machine etc.
1.The company set up special research and development department to update the products.
2.The company cooperates with well-known domestic universities to jointly develop new energy-saving briquetting equipment.
3.The company invites well-known experts in the industries to jointly develop new type of equipment.
4.The company spends 10% of the sales revenue on product research and development every year.
5.The company attached great importance to the cultivation of talents and rewards those who have research and development capabilities.
6.The company guarantees no less than 10 patented products per year.
The products are widely sold in over 20 provinces and regions in China and exported to India, Malaysia, Vietnam, Philippines, Indonesia, Thailand, Russia, The North of Ireland, Australia, Oman, Egypt, Israel, Africa, South America, Europe, USA.
Our service is honest firstly,quality most. Owing to our powerful team our products exported to various countries and regions around the world.

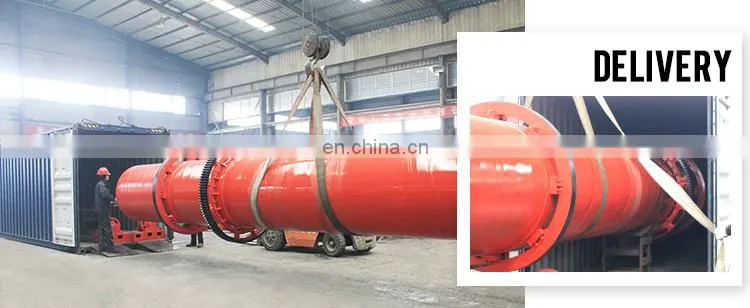

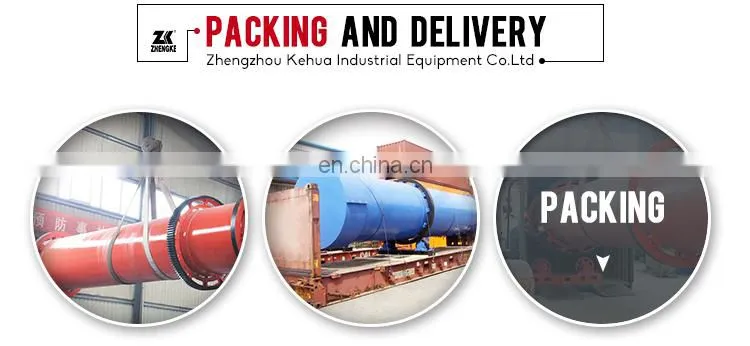

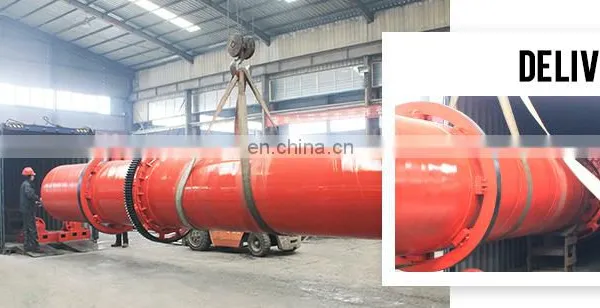

The equipment is packaged in plastic film and fixed in a container with wire, and the parts are packed in plywood boxes.
Certifications
FAQ
1. I want to purchase a rotary dryer?
Hello, We are glad to receive your inquiry. In order to supply a proper proposal of drying line for you, please confirm the following info:
1. What is your raw material for drying?
2. How much inlet moisture in your material before drying?
3. How much outlet moisture do you want to keep after drying?
4. How larger capacity per hour do you want?______TPH
5. Which kind of heating source do you want to use for drying raw material?
Natural gas? Coal block? Available hot air or others.
2. We want to purchase a sawdust/wood chips rotary drum dryer, can you tell us the price?
Dear Sirs, thanks for your inquiry about the sawdust/wood chips rotary drum dryer. There are many models of rotary drum dryer, different model is with different price. Firstly, we should choose a proper model of dryer based on the moisture range during drying. Secondly, the sawdust, wood chips belong to biomass type material, the density is light, around 400kg/m3; So that when dry biomass type materials, required larger drying space than common type material. We will make a detail proposal with price of rotary dryer based on your actual demand.
3. Which kind of heating source can we use for this rotary dryer?
Dear Sirs, thanks for your professional inquiry of rotary dryer. You can use natural gas, coal block, diesel, heavy oil, wood log, biomass, electricity etc. Different heating source required different burner, along with combustion chamber. We can design a proper proposal based on your choice of heating source.
