500kg per hour palm kernel expeller oil press oil none hydrogenated malaysia
The brief introduction of palm kernel oil expeller:
Palm kernel oil, which is extracted from the nut, or kernel, of a species of African palm tree, is commonly referred to as tropical oil. Palm kernel oil is one of most popular edible oil in Africa. In order to get palm kernel oil the Commercial palm kernel oil extraction machine is essential.
Palm fruit bunches, palm krnel and crude palm kernel oil
In general, Complete Commercial palm kernel oil expeller machine mainly include two plant. one is palm kernel cracking separating plant. Another is palm kernel oil crushing plant .Finally you get palm kernel oil (CPKO)
Palm kernel cracking separaitng plant is optional, If your palm kernel is with shell (we also called palm nut) ,It is better to have palm kernel separating plant to separate palm kernel and shell . So that you get palm kernel . Then palm kernel will be sent to palm kernel oil pressing plant for getting palm kernel oil . If you directly processing palm kernel,You save cost of palm kernel cracking separating plant.
Small scale Commercial palm kernel oil extraction machine
Palm kernel cracking separating plant :
Our palm kernel cracker and separator system is our company newly developed system.
This system abandoned traditional technology, adopts cracking and air separator method, it is high efficiency and no pollution. Especially for like palm kernel (Shell thickness ≤1.4mm),
The advantage of palm kernel cracking and crushing /separating system
After crushing the palm nut, the shell and kernel weight is very close; To separate it is a very complicated process; We adopt professional palm kernel cracker, crushing rate is above 90%; Then use air separator system, through adjusting the transducer to control high pressure air speed and volume; When the speed and air volume arrive the critical value, which can separate the shell and kernel; Kernel in shell rate is less than 5%; shell in kernel rate is less than 5%; This system is mainly for cracking and separating palm kernel
2-3 tons per hour palm kernel cracker and separator
For palm kernel oil expeller crushing plant ,We have two method for different capacity :
The main process for small and medium capacity Commercial palm kernel oil expeller machine :
1.Crushing : Crushing palm kernel into small 4-6 pieces ,make palm kernel easy for pressing
2, Cooking : To fry and cook palm kernel ,make it reach the best condition for pressing
3.Pressing : Use special palm kernel oil extraction machine ,to extract palm kernel oil from palm kernel ,the oil residue in the cake is about 6%-8%
4. Filtration : Removing impurities in the palm kernel oil
Raw material Palm kernel

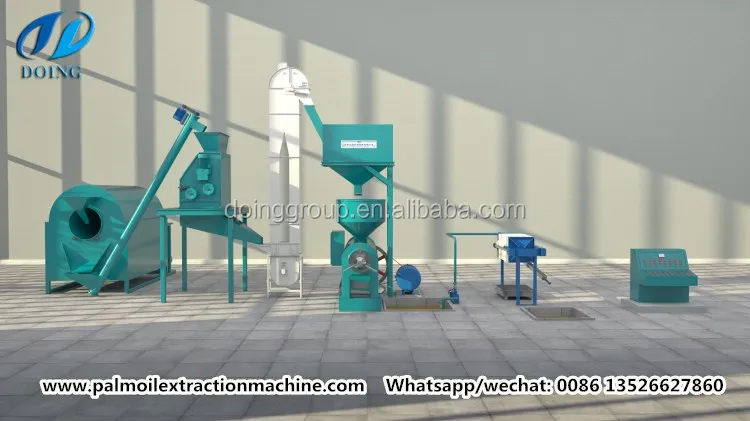

Complete small scale palm kernel oil extraction machine
The main process for large capacity palm kernel oil extraction machine
(physical pressing and chemical solvent extraction plant ):
1. The palm kernel pretreatment prepressing plant :
It mainly include cleaning, crushing, softening ,flaking ,cooking, pre-pressing ,filtration ,After the plant ,you will get part palm kernel oil . And oil cake .Oil cake will be sent to solvent extraction plant for extracting more oil in the cake

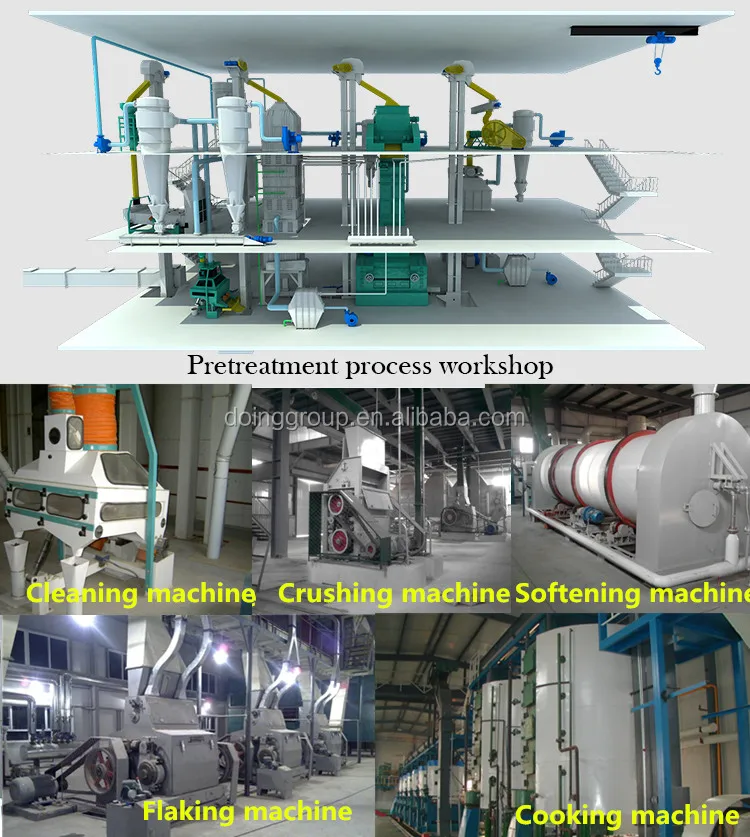

Palm kernel pretreatment plant
Large scale Palm kernel oil pressing plant
2.Palm kernel oil cake solvent extraction plant :
Use chemical solvent N-hexane to react with oil cake ,and extract oil from oil cake ,finally ,the oil residue in the cake is less than 1% ,and the meal is better for animcal feeding
The main process: Solvent extraction system--D,T,D,C system --Condenser system --Recovery system

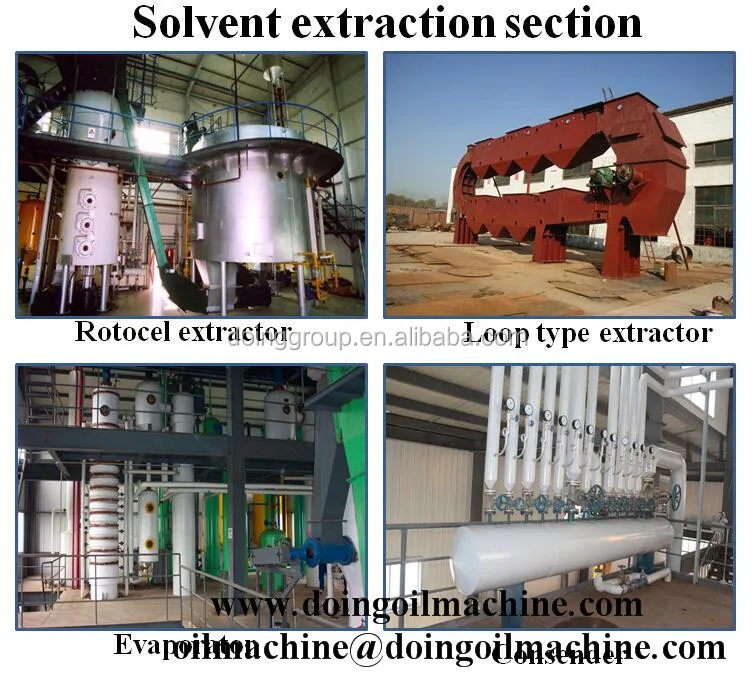

Palm kernel solvent extraction plant
Related parameters of Commercial palm kernel oil expeller extraction machine:
| Product name : | Commercial palm kernel oil extraction machine |
| Main products: | small scale palm kernel oil processing machine;(1-10tpd) |
| large scale palm kernel oil processing machine:(10-600tpd) | |
| Batch palm kernel oil refining machine(1-10tpd); Semi-continuous palm kernel oil refining machine(10-30tpd); Continuous palm kernel oil refining machine(30-600tpd) | |
| Our services: | Equpment manufacturing, Shipping transportation, installation & debugging & running, traning workers, after-sales service |
| Our advantages1: | Professional engineers team, professional production team, production installation team, professional after-sales service team |
| Our advantages2: | We are manufacturer, supplier, exporter. Welcome to visit our factory |
Henan Doing Mechanical Equipment Co.,LTD is one of the leading manufacturers of palm oil processing equipment and Commercial palm kernel oil extraction machine in China ,Our compnay service includes : technology design ,installation and commissioning ,technical training, relocation of oil plant ,technology reform and turkey project
Our main products are:small scale palm fruit oil press, palm kernel oil press machine, FFB(fresh palm fruit bunch) processing plant , palm kernel and shell separation system ,palm kernel oil pressing plant ,palm/palm kernel oil refinery plant and fractionation plant .
Our products have gained many achievements and awards, And we have installed palm oil mill projects in more than 20 countries all over the world , such as Malaysia ,Indonesia ,Nigeria ,Liberia, Thailand ,Congo ,Zambia ,Uzbekistan

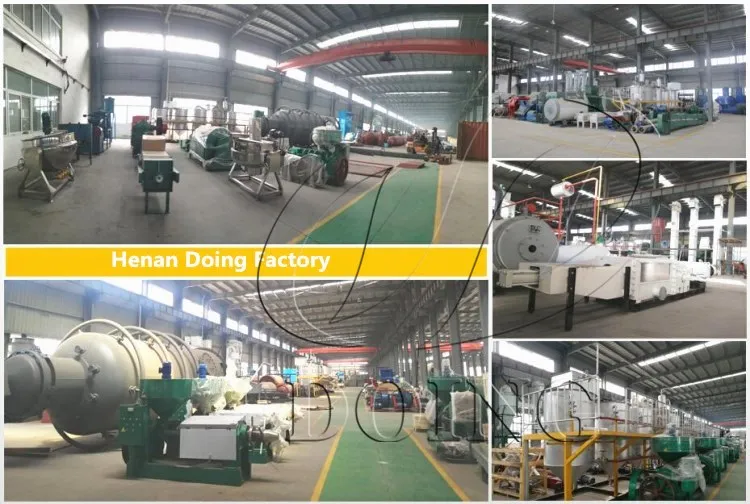

Commercial palm kernel oil extraction machine manufacturing workshop
Other cooking oil processing machine photo
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Commercial palm kernel oil extraction machine will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Commercial palm kernel oil extraction machine delivery photo
Besides Commercial palm kernel oil extraction machine, another important equipment is palm oil processing machine , palm oil refining machine and palm oil fractionation machine,. The following are some photos:

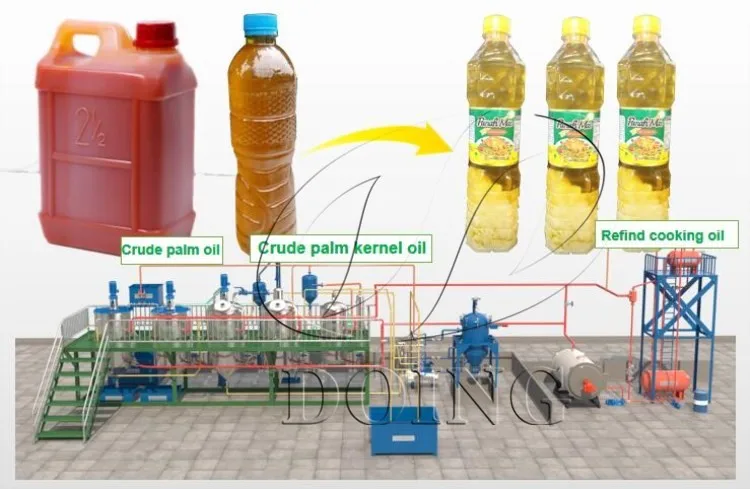

Small scale palm oil refining machine photo
Small scale palm oil refining machine photo
Do you want to start palm kernel oil processing business? Welcome to contact us, we will supply the most suitable palm oil processing machine and palm kernel oil processing machine for you!
WhatsApp/wechat/Mobile: +8613526627860
E-mail: oilmachine@doinggroup.com
