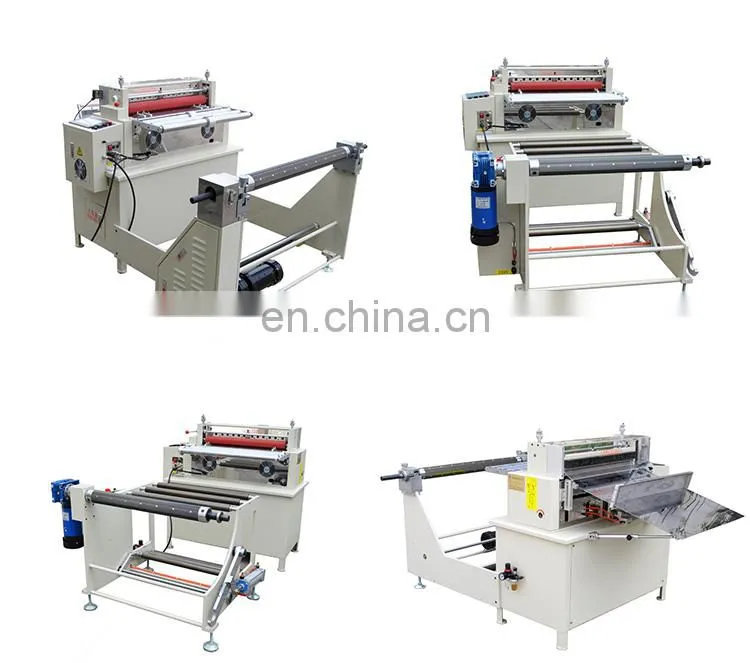

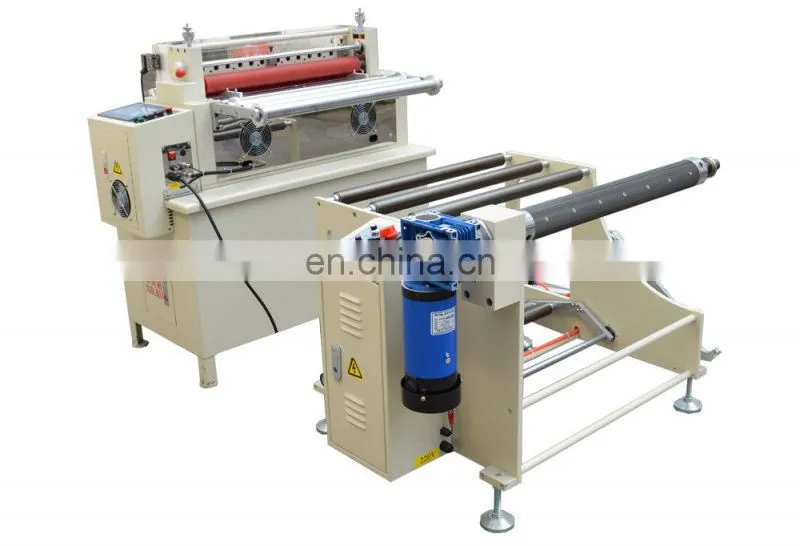

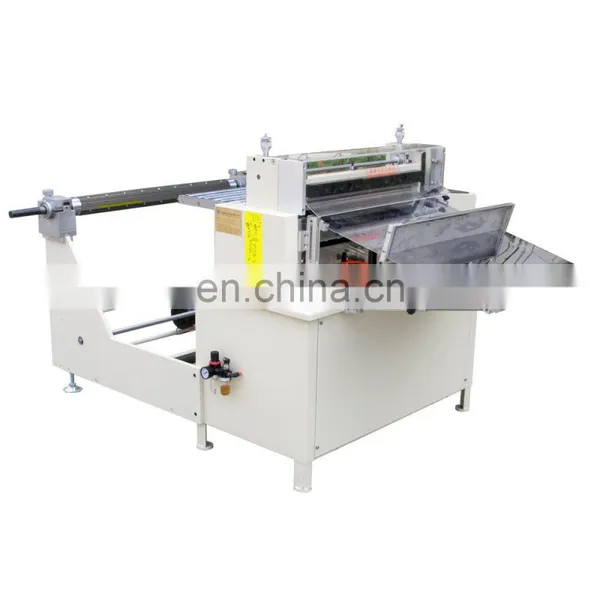

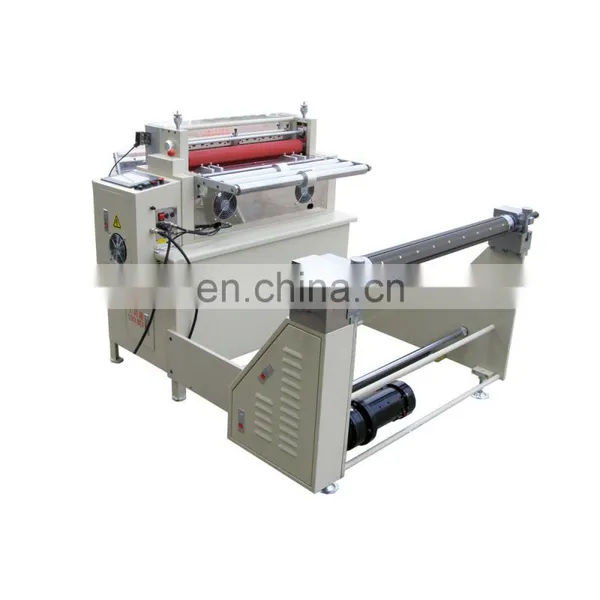

Hexin Servo Motor Adhesive Label Cutting Machine
| Specifications | ||
|
Model |
HX-600B |
HX-1000B |
|
Voltage |
380V |
380V |
|
Total Power |
1.5KW |
1.5KW |
|
N.W. |
320KG |
510kg |
|
Cutting Length |
0.1-9999.9mm |
0.1-9999.9mm |
|
Cutting Width |
1-600mm |
1-1000mm |
|
Cutting precision |
±0.05mm |
±0.05mm |
|
(0-180mm)/Cuttingspeed |
125cuts/min |
100cuts/min |
|
Machine size |
1500x1300x1200mm |
1500*1800*1150mm |
Features:
©Taiwan Brand Servo motor & Japan brand PLC applied
©Touch screen, easy operation
©Cutting length and cutting speed are adjustable.
©Option: unwinding device/ static electricity eliminator /conveyor belt and others based on your specific needs.
Application:

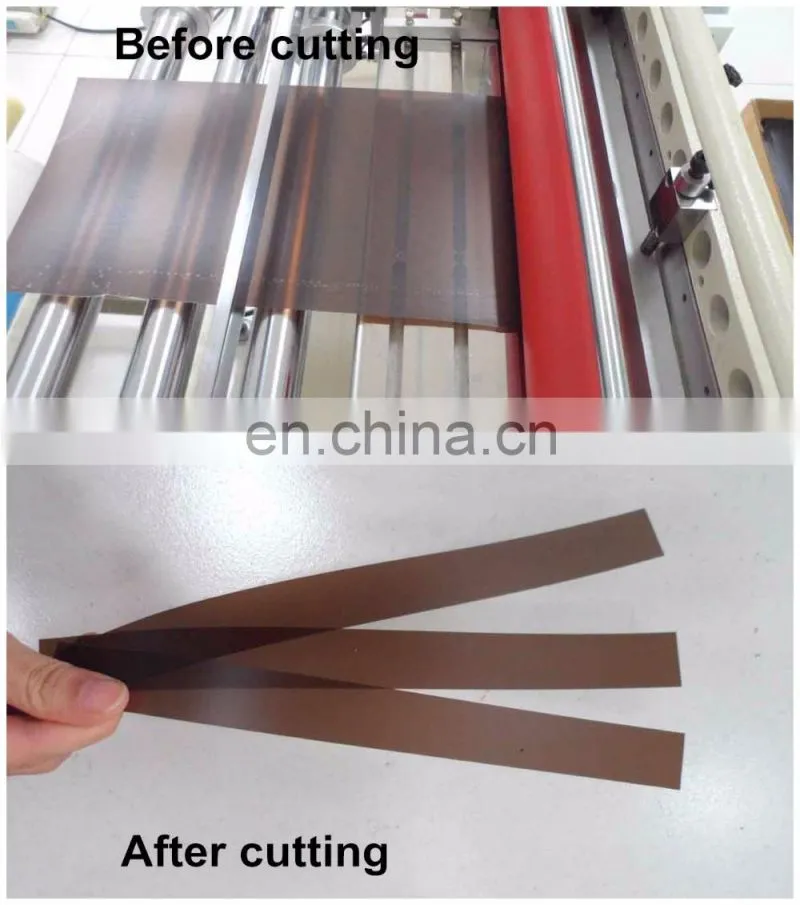

Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil
and all kinds of material in roll form.
About Us
We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating
and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near
Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after
printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers
reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting
for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.
Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
