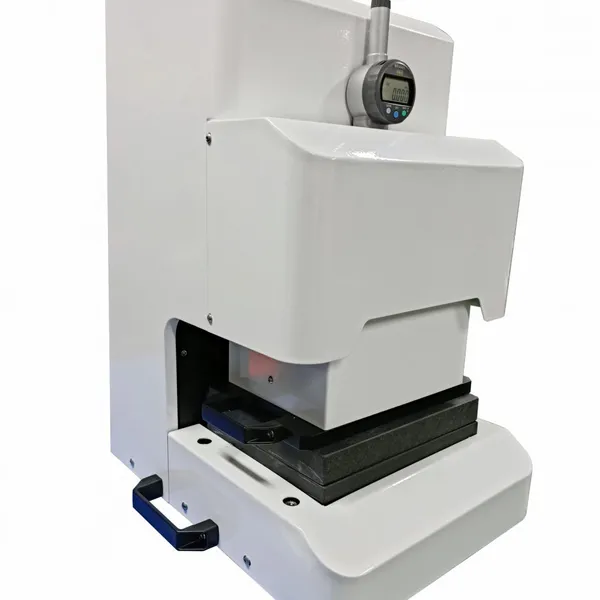

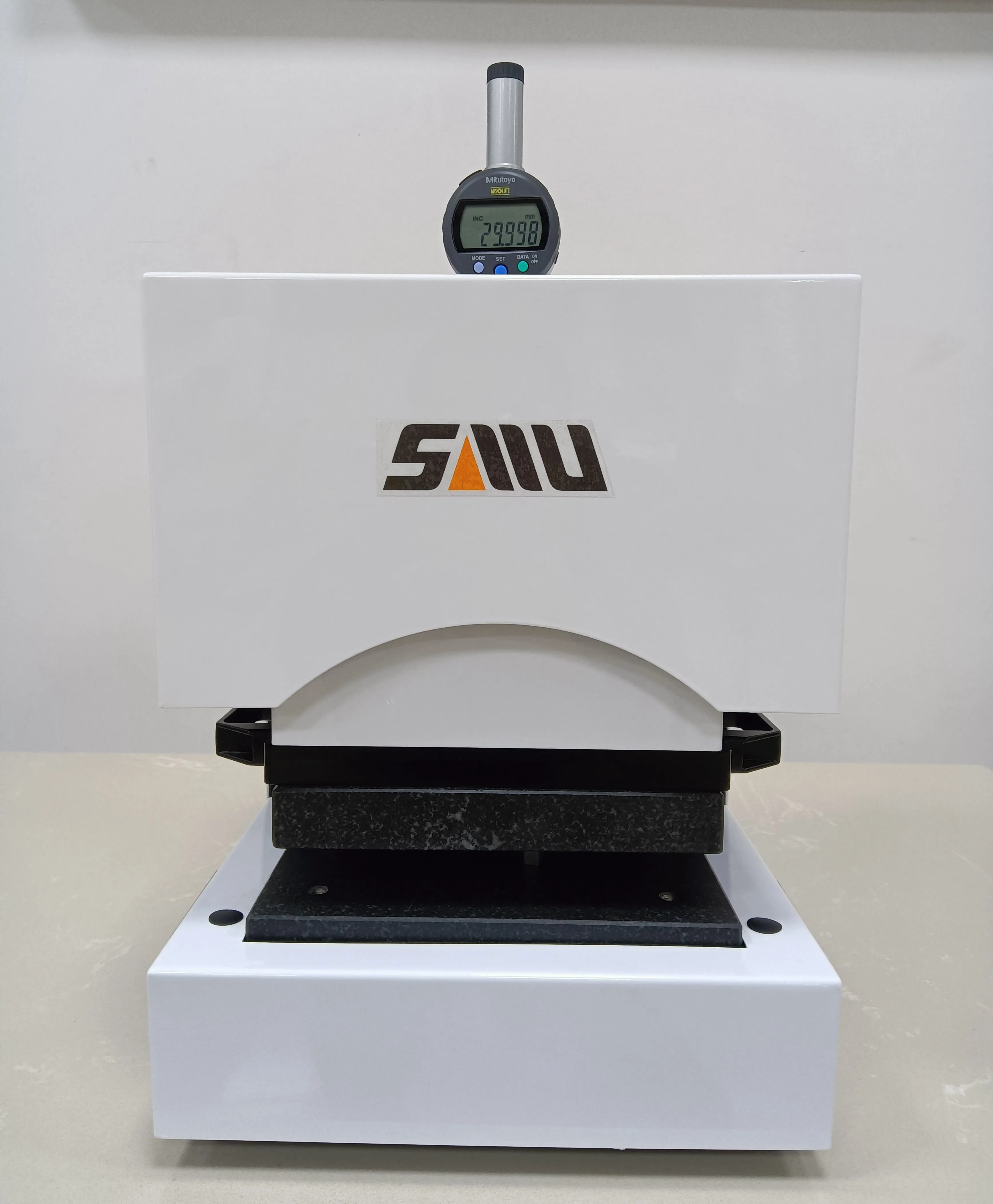

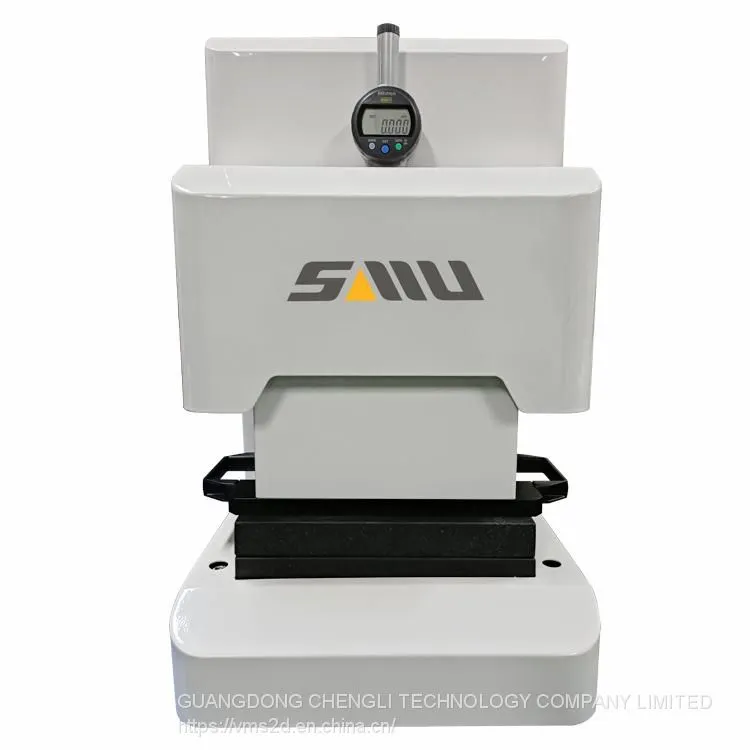

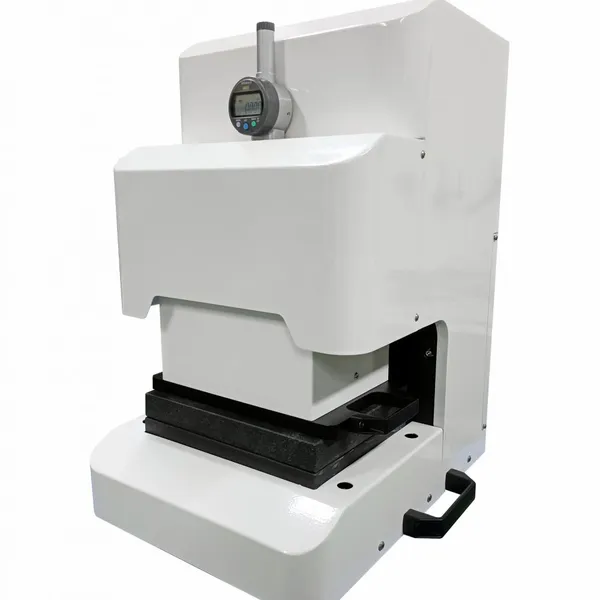

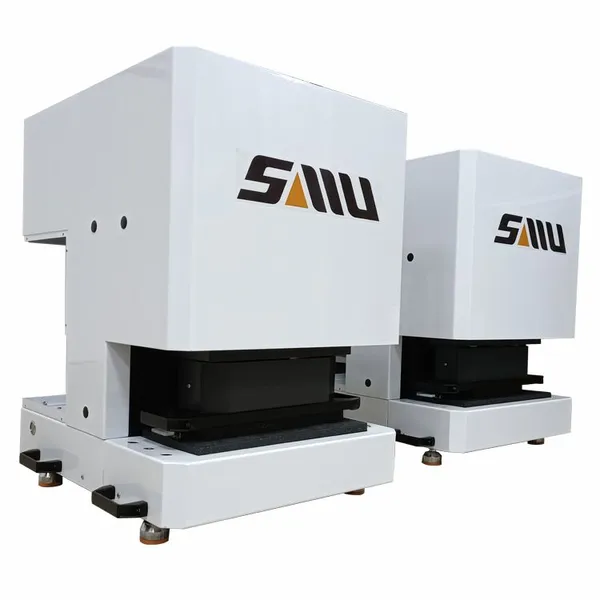

Manual PPG thickness measurement equipment
PPG-2153M
（The same pressure is measured for thickness）
1. Introduction
This equipment is suitable for the thickness measurement of lithium batteries, but also can measure other non-battery type of thin products, using weight counterweight, to ensure that the test pressure 400-800g adjustable.
2. Operating steps
2.1 Put the battery into the test platform of the thickness measuring machine;
2.2 Lift the test pressure plate, so that the test pressure plate naturally presses down for testing;
2.3 After the test is completed, lift the test press plate;
2.4 Remove the battery until the whole test step is completed.
3. The main accessories of the equipment
3.1. Sensor: Mitutoyo micrometer
3.2. Coating: Spray baking paint.
3.3. Material of parts: steel, grade 00 jinan blue marble.
3.4. Cover material: metal.
4.Technical parameters
S/N |
Item |
Configration |
1 |
Tested effective area |
L250mm×W80mm |
2 |
Thickness range |
0~30mm |
3 |
Height of test |
45mm |
4 |
Resolution |
0.001mm |
5 |
Single point measurement error |
0.003mm |
6 |
Combined measurement error |
≤0.01mm |
7 |
Test pressure range |
800g |
8 |
Pressure transmission mode |
counterweight |
9 |
Sensor |
Mitutoyo micrometer |
10 |
Using the environment |
Temperature：23℃±2℃ Humidity：30～80% |
vibration：＜0.002mm/s，＜15Hz | ||
11 |
Power |
SR44(938882),1.55V |
