Product Description

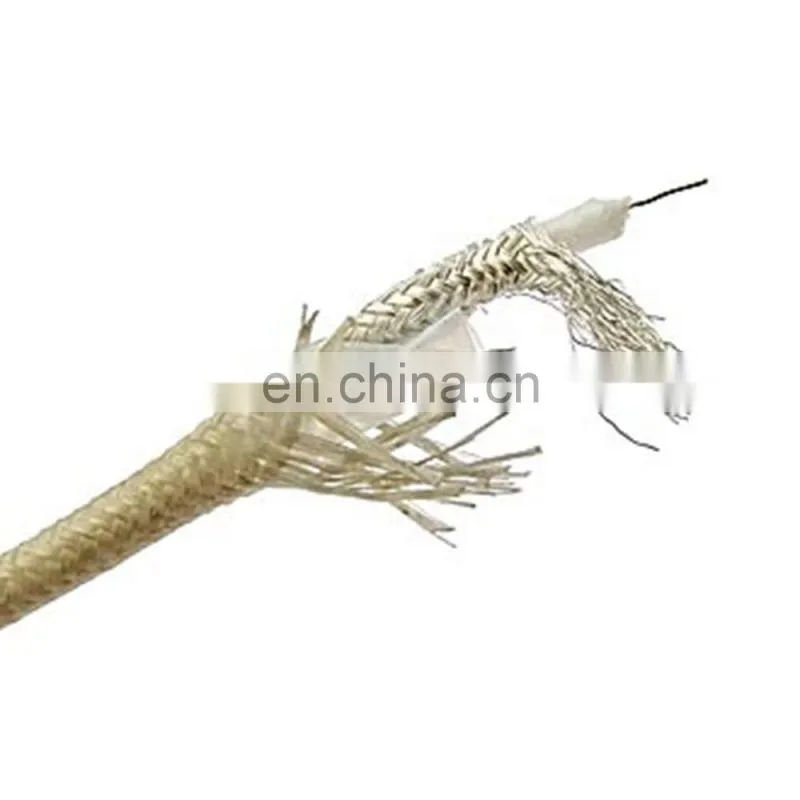

RC75-2-21 Russian cables coaxial cable


The radio-frequency coaxial cable with increased heat resistance and a solid insulation jacket. It is used to receive and transmit radio and TV signals. It is designed to interconnect various radio equipment and RF units.


Key features:
- Number and diameter of wires of the inner conductor, mm - 1х0.41
- Wave impedance, Ohm - 75±3
- GOST 11326.40-79
- The outer diameter of the cable, mm - 3.2±0.25

Features
GOST
11326.40-79
The outer diameter of the cable
3.2±0.25 mm
Inner conductor
Copper silver-plated wire
Insulation jacket
Solid - F-4 PTFE
Outer conductor
Braid made from copper silver-plated wire
Jacket
F-4 PTFE, the braid made from fibreglass threads impregnated with a silicone lacquer
Number and diameter of wires of the inner conductor
1x0.41 mm
Capacitance
63 pF/m
Velocity factor
1.42
Vibratory load at a frequency range between 1 kHz and 5,000 kHz
with acceleration up to 400 m/s2 (40 g)
Linear loads
with acceleration up to 5,000 m/s2 (500 g)
Multiple impacts
with acceleration up to 1500 m/s2 (150 g)
Single impact
with acceleration up to 10,000 m/s2 (1,000 g)
Wave impedance
75±3 Ohm
Damping ratio, NMT, dB/m, at a frequency of 0.2 GHz
0.27
Damping ratio, NMT, dB/m, at a frequency of 3 GHz
1.5
Electrical resistance of the insulation jacket
NLT 5 TOhm-m
95% service life
22,500 hours
Minimum bend radius during transportation and storage
40 mm
Minimum bend radius
during mounting at a temperature of +5°С and above
20 mm
Minimum bend radius during mounting at a temperature of below +5°С
40 mm
Operating temperature range
-60°С to +250°С
Product weight, kg/km
22.9 kg/km
Packing & Delivery
Piece net weight
22.9 kg/km
Packaging
Plastic bag + box
Box size
Minimum dimensions 12*10*8 cm
Box weight
Minimum weight - 200 g
