Product Description

The filling machine is used for filling the fruit juice, paste, puree, pulp and other liquid into the aseptic bags for storage. The natural fruit juice or pulp can be kept in the aseptic bags for more than one year under constant temperature, and the concentrated fruit juice or paste can be kept for more than two years.

The aseptic filling machine can be connected with the Sterilizer directly; the product will be filled into the aseptic bags after fully sterilized by the sterilizer. The aseptic bags are aluminum compound multi-layer bags; it can cut off from sunlight and oxygen affection to guarantee the high quality of the products. The temperature of filling chamber can be adjusted automatically by temperature control system, the bag's spout and filling chamber will be sterilized by steam spraying.

Detailed Images

Parameter:

Model: GFM-AF-3
Capacity: 3-4 tons/hour
Aseptic bag size: 1-220 liters aseptic bag (normal)
                               1-1000 liters aseptic bag (optional)

Steam consumption: 20 kg per hour
Compressed air consumption: 0.3M3 per min (0.8 Mpa)
Measurement tolerance by electronic balance: ±0.5%
Measurement tolerance by flow meter: ±0.2%
Power: 1kw/6.5kw (with dynamic conveyer)
Dimension: 2300*2000*2500mm (l*w*h)

Features:

1. High production speed achieved by a newly designed head system (single head or twin heads available), improved reliability from a fully PLC controlled self diagnostic operational mode.


2. Greater versatility by meeting various packing standards with different products.

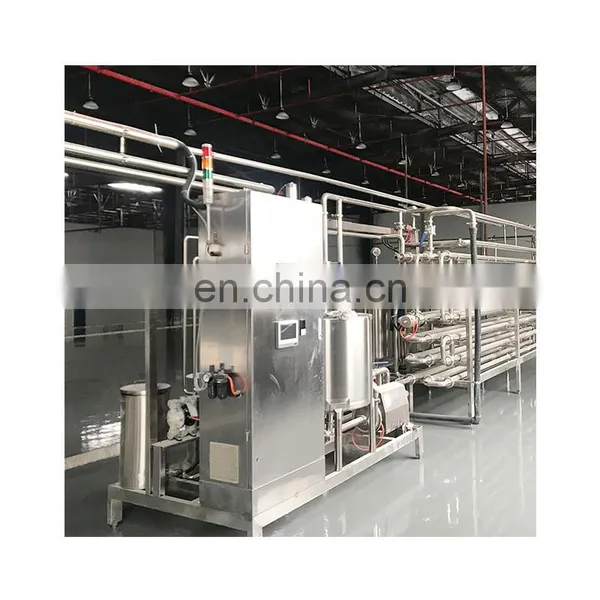

3 Coordinates well with the tube in tube sterilizer, if some malfunction with the filler, the product will be automatic flow back into the buffer tank before the UHT sterilizer.


4. The use of a hermetically sealed empty bag ensures the bag will remain sterile before it is filled.


5. High pressure saturated steam is used for sterilization of the fitment, cap and exposed portion of the filler prior to each filling cycle. NO CHEMICALS are required.


6. The sealing of the fill valve on the interior of the fitment keeps product completely away from the package sealing area.


7. The hermetic heat sealing of the fitment provides a tamper evident closure and a superior oxygen barrier.


8. The overall aseptic design of the filler allows uninterrupted. Operation throughout a complete tomato or fruit season, maximizing your plant's efficiency .


9. CIP and SIP available together with tube in tube sterilizer
