Primus IT 1.25G optical module may be provided to support the maximum rate of 1.25Gbps. Using FP or DBF laser, it can be compatible with multiple brand switches, commercial-grade and industrial-grade are optional.
Specifications of 1.25G sfp
Features of 1.25 g SFP Transceiver
·
Supports up to 1.25Gbps bit rates
Hot-pluggable SFP footprint
1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission
·
Compliant with SFP MSA and SFF-8472 with single LC receptacle
·
Compatible with RoHS ·
·
Single +3.3V power supply
·
Real Time Digital Diagnostic Monitoring
·
Operating case temperature:
·
Standard: 0 to +70°C
·
Industrial: -40 to +85°C
·

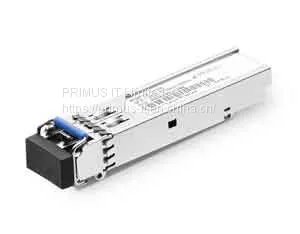

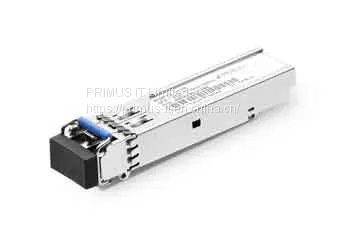

Primus IT 1.25 g SFP Transceiver 1310nm 10km/ sfp 1.25 g 1310nm 20km transceiver is a high-performance and cost-effective module, which is composed of a FP laser transmitter, a PIN photodiode integrated with a cross-impedance preamplifier (TIA) and a single-chip microcomputer control unit. It supports the data rate of 1.25Gbps and the transmission distance of 10 km/20 km SMF.
All modules meet the level I laser safety requirements. And they can be applied in 1.25Gbps Optical systems, Gigabit Ethernet, etc.
The transceiver is compatible with SFP multi-source protocol and SFF-8472 digital diagnostics.
Primus IT is a professional optical transceiver supplier, Primus has been dedicated to developing, manufacturing and marketing for optical transceivers.
