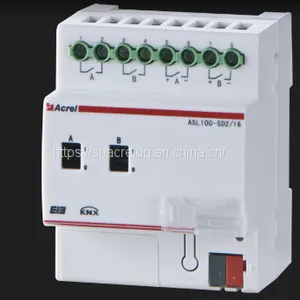

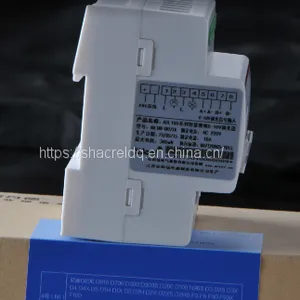

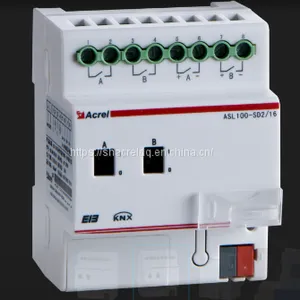

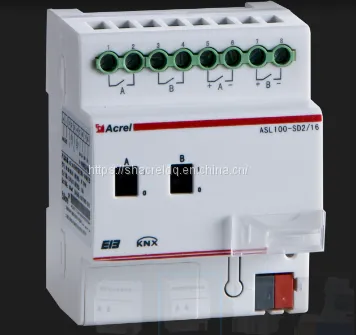

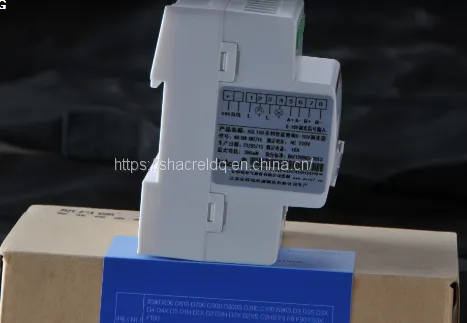

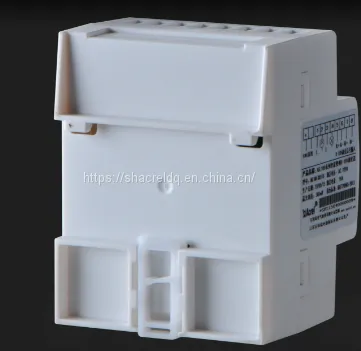

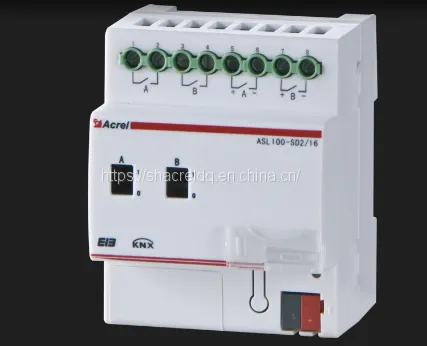

Acrel ASL100 Series Dimming Driver 0-10V ASL100-SD2/16
Overview
ASL100-SDx/16 series of dimming driver (hereinafter referred to as dimmer) is dimming module of Acrel-bus intelligent control system. The product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is an intelligent control module with high stability and reliability, such as smart panel and dry node that achieving intelligence of lighting control. The dimmer controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay controls the mains on and off by the relay at the output end. The dimmer is applicable to the resistance, inductance and capacity load.

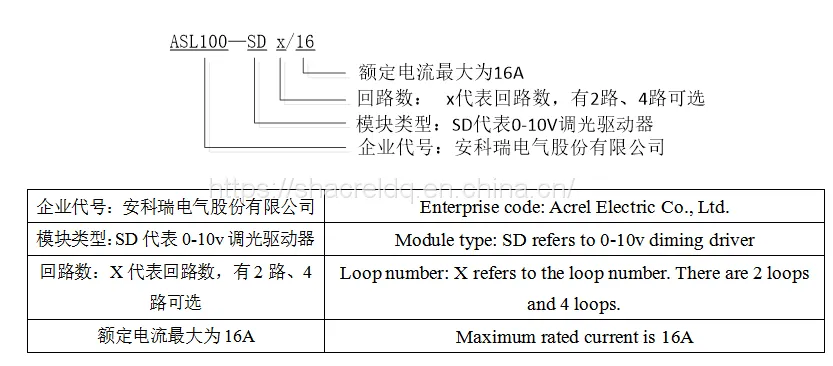

Specification and Model

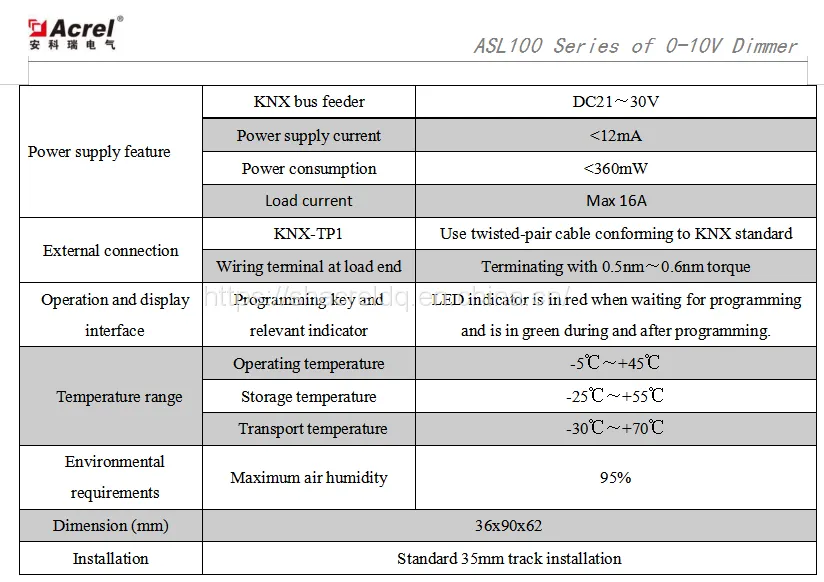

Technical Parameters

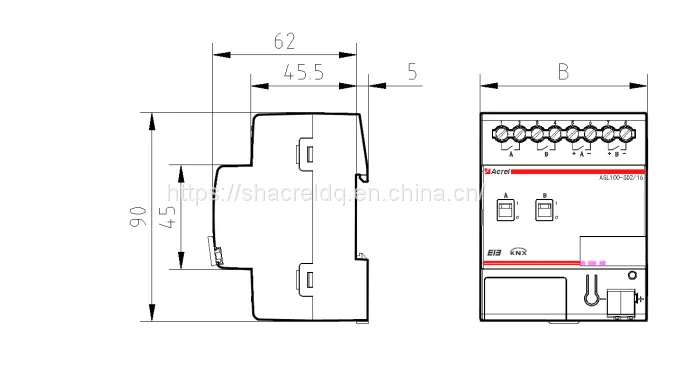

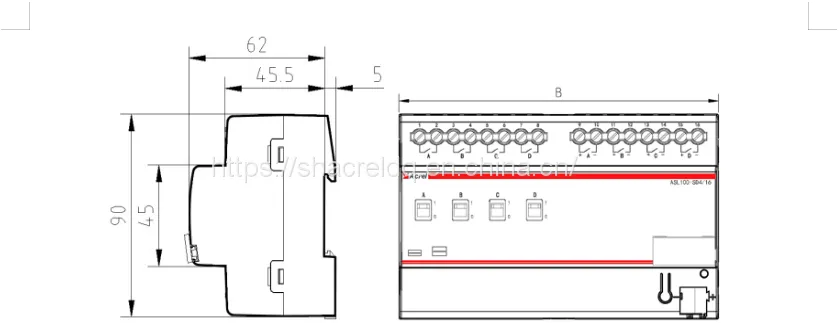

Configuration

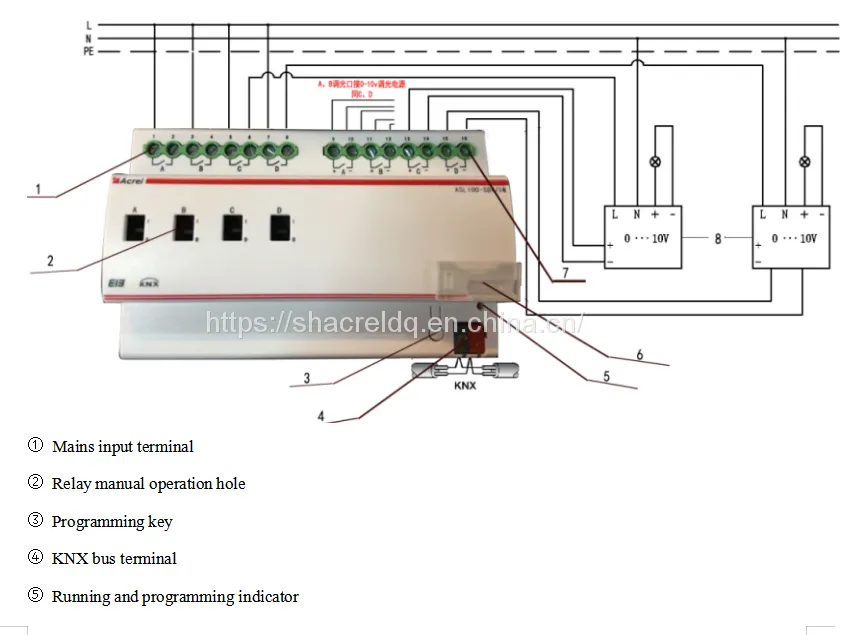

CElectric Wiring Diagram
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certificate
Packing
Shipping
