Help CenterAir Ventilation Aging Machine
Related Products
Model: YTAT-101
Product Performance
Temperature range: RT+25℃～200℃
Air ventilation volume: 5-200 (3-250) time/H
N=3590(X-Y)x2/V · ∆ f · D
Digital display or program touch screen controller

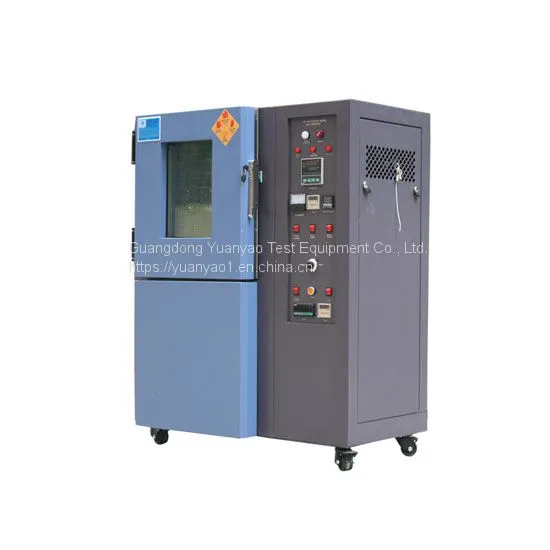

Description of Air Ventilation Aging Machine
Air ventilation aging machine is suitable for the heat resistance test of electrical insulation materials, the ventilation aging test of electronic parts and plasticized products, and the ability of the storage and usage under high temperature environmental conditions is evaluated.
Parameter of Air ventilation aging machine
Model No. |
YTAT-101 |
|
Internal chamber size (W×H×D)cm |
45×50×45 |
Temperature range |
Room temperature +25℃～200℃（300℃） |
Temperature fluctuation |
±0.3℃ |
Temperature uniformity |
±1%℃ |
Air ventilation volume |
5-200 time/H |
Heating up time |
30 minutes |
Interior chamber material |
SUS#201 stainless steel plate (Adopt SUS#304 stainless steel when temperature>200℃) |
Control system |
Button type Digital controller |
Components |
Control status indicator, loading shelf(2 pcs, height adjustable) |
Power supply |
AC 1Ψ 220V 60/50Hz, AC 3Ψ 380V 60/50Hz |
Customization service |
Non-standard or special requirements can be customized. |
Features of Air ventilation aging machine
1. Digital display or program touch screen controller
2. Equipped with low speed turntable.
3. Good temperature uniformity for high precision temperature cycle testing
As one of climatic test chamber manufacturers, we have types of climatic test chamber for sale, if you have interest, please contact us.
