Introduction

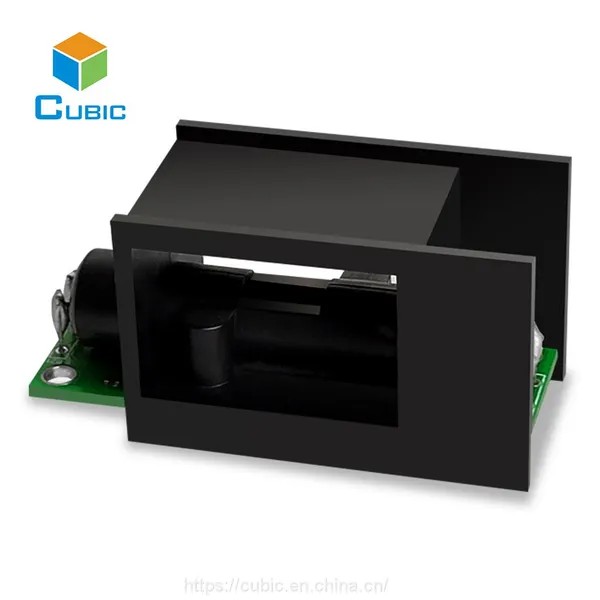

Gasboard 8500D ultrasonic oxygen sensor is an economical gas sensor used to detect oxygen concentration in binary gases. By adopting ultrasonic detecting technology, it is very stable and there is no need to calibrate the sensor in the application. It is mainly designed for ventilator oxygen concentration measurement with high flow range up to 80L and for the large PSA generator too.Compared with electro-chemical oxygen sensors, it has a much longer lifespan and a more stable performance.
Features
1.Cutting-edge ultrasonic technology adopted
2.High accuracy, high stability, low cost, small size
3.Full scale temperature compensation
4.Factory calibration, maintenance free
5.Long lifespan
6.High flow range supportive
Specifications
| Measurement range O2 | 0~100%(withstand flow range: 0~80L) |
| Resolution | 0.1% |
| Concentration accuracy | ±3%FS @ (5-45)℃ |
| Response time | ＜10s |
| Working temperature | 5℃~50℃; 0-95%RH (non-condensing) |
| Storage temperature | -20℃~60℃; 0~95%RH below ( non-condensing) |
| Power supply | DC 4.75-12.6V |
| Signal output | UART-TTL (3.3V) |
| Dimensions | L60.7*W26*H30(mm) |
Applications
Medical and Healthcare
High Flow Oxygen Therapy Instrument
Ventilator
Anesthesia Machine
