Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Reactor > Good Price Lab Pilot Scale Laboratory Chemical Heated Filter Jacketed Crystallization Vacuum Sealed Stainless Steel Reactor for

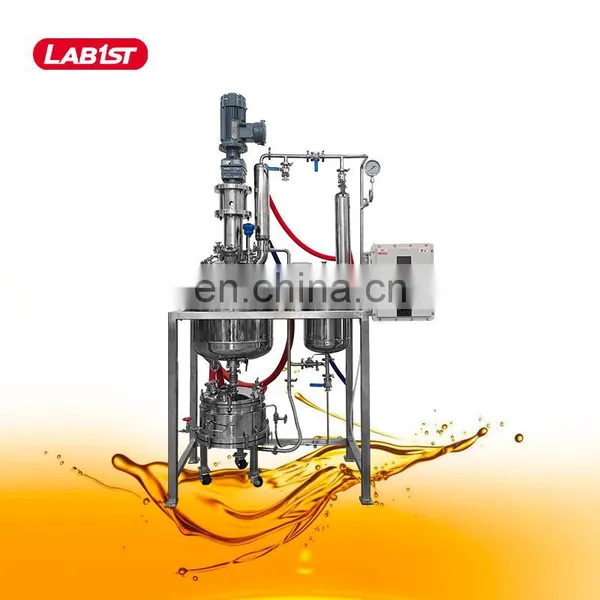

Good Price Lab Pilot Scale Laboratory Chemical Heated Filter Jacketed Crystallization Vacuum Sealed Stainless Steel Reactor for
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Jacketed 30 L 30l 50l 100l 200l 100 Liter Stainless Steel Filter Heated Chemical Crystallazation ReactorNegotiableMOQ: 1 -
Large High Capacity 2000ml 2l 5l 10l 12l 20l 1 20 22 Liter 5 20 L 20liter 2ltr 5ltr Short Path Shortpath Distillation SetNegotiableMOQ: 1
-
Wholesale in Stock Vacuum Double Condenser 20L 5 10 L Shortpath Equipment Machine Short Path Distillation With Reflux SeparatorNegotiableMOQ: 1
-
Industrial Centrifugal Alcohol Ethanol Extraction Biomass Centrifuge Extractor Machine for Plant ExtractNegotiableMOQ: 1
-
Industrial Centrifuge Extractor Machine Alcohol Ethanol Extraction Biomass Centrifugal for Plant ExtractNegotiableMOQ: 1
Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Our Office
Warehouse
Warehouse
Products Description
Model |
JSR-50FK |
JSR-100FK |
JSR-200FK |
JSR-300FK |
|||
Electrical Requirements |
110/220V, 50/60Hz 1‐PH |
||||||
Power |
1.5kw |
||||||
Rotation Controller |
Variable frequency drive, 80~350 rpm，flameproof |
||||||
Jacket Pressure |
-0.1~0.1Mpa |
||||||
Inner Vessel Pressure |
Atm~0.3Mpa |
||||||
Temperature Range |
-60~200℃ |
||||||
Filter Plate Material |
S30408, pore size100μm |
||||||
Filter Bag/Paper Material |
Polypropylene, 200 mesh |
||||||
Vacuum Sealing |
PTFE to increase durability and longevity |
||||||
Reaction Vessel Capacity |
50L |
100L |
200L |
300L |
|||
Jacket Capacity |
20L |
30L |
45L |
60L |
|||
Condensation Area |
0.3㎡ |
0.6㎡ |
0.8㎡ |
0.8㎡ |
|||
Liquid Collection Vessel |
30L |
80L |
150L |
200L |
|||
Filter Dimension (W*D*H) |
Φ400×200(25L) |
Φ500×200(40L) |
Φ600×220(60L) |
Φ600×300(80L) |
|||
Installation Dimension (W*D*H) |
1500*730*2700 |
1750*860*2800 |
2100*1020*2900 |
2500*1250*3250 |
|||

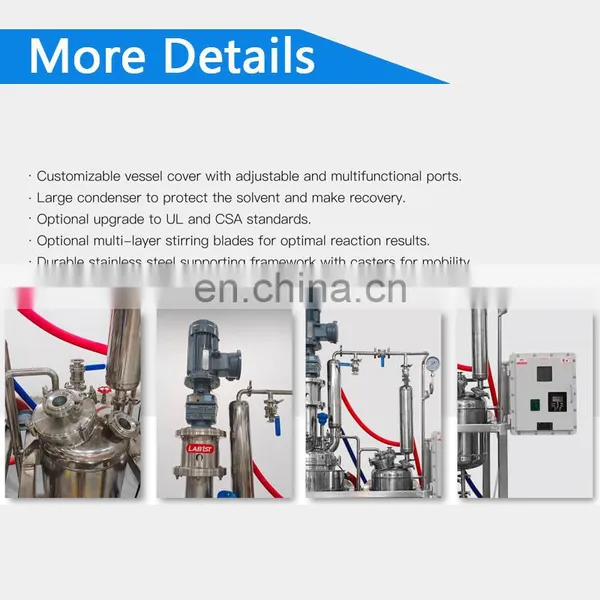

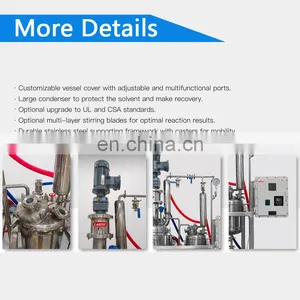

Details
