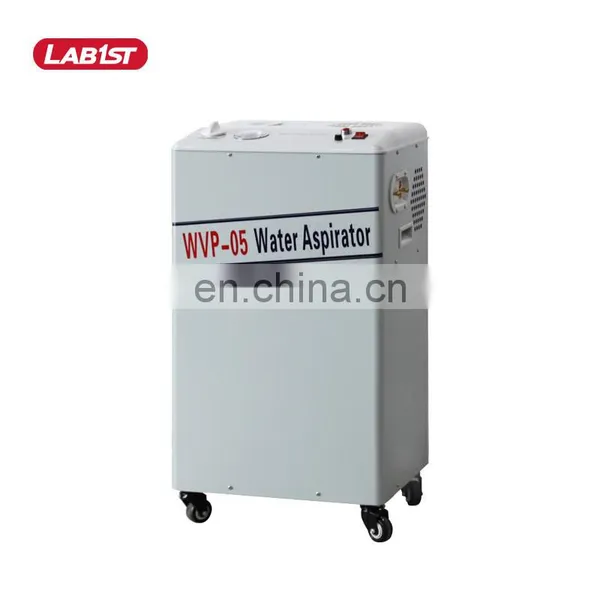

Lab Laboratory Scale 370W Water Aspirator Vacuum Pump

Lab Laboratory Scale 370W Water Aspirator Vacuum Pump thumbnail-1
Lab Laboratory Scale 370W Water Aspirator Vacuum Pump photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Labfirst Scientific Instruments (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Office in China
Warehouse in USA
Warehouse in China
Products Description
Lab1st Wvp-series Water Aspirator Vacuum Pump Uses Water to Pull a Vacuum. No Oil is Required. Each Vacuum Port Pulls Vacuum Separately Allowing for Either Two Separate Applications or Connect Them Together for Double the Vacuum. This Pump Can Also Be Used to Re-circulate Water Through the Back Ports if Needed
1.All Major Valves and Parts Are Made of Ptfe 2.Corrosion-resistant, Non-polluting 3.Recycled Use Water to Reduce the Water Consumption 4.Be a Vacuum Pump or Circulating Pump 5.Novel Appearance, Easy to Operate 6.Low Noise, Stable Performance
Model
WVP-02
WVP-05
Electric Power (w）
180
370
Circulating Pump
Rate (L/min)
60
90
Lift (m)
6
12
Body Material
Body Material
Corrosion Resistant
As a vacuum pump
Pumping Rate（ L/min）
10 x 2
10 x 5
Maximum vacuum
0.098Mpa (735mmHg, 0.98bar, 735Torr)
Reservoir Volume (L)
15
50
Vacuum Port (pcs)
2
5
As a circulation pump
Circulating Water Temp. (℃)
0~25
Voltage
110/220V single satge
Safety Protection
A check valve to prevent backflow
Shell Materail
PVG Surface Electrostatic Spraying
Castor
None
4
Dimension (WxHxD mm)
385×285×420
450×340×870
Weight (kg)
15
37
Warranty
One Year
