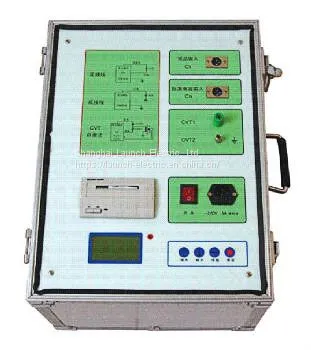

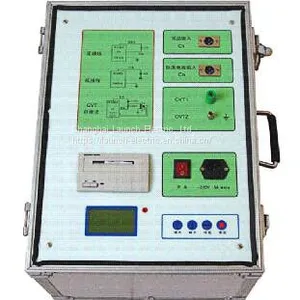

Help CenterSFK061 Anti-Interference Automatic Dielectric Loss Tester
Related Products
-
SF600 Temperature Control Device for Liquid ElectrodeNegotiableMOQ: 1 Piece -
RY1 Insulating Oil Dielectric Loss Testing ElectrodeNegotiableMOQ: 1 Piece
-
HV Bridge and HV Standard CapacitorNegotiableMOQ: 1 Piece
-
QS30b High-Voltage Capacitance BridgeNegotiableMOQ: 1 Piece
-
SF-2001 Interference Discriminant PD DetectorNegotiableMOQ: 1 Piece
Contact US
Email:coco@launch-electric.com
Introduction
It is for testing the tgδ and Cx of materials and equipment such as various types of insulating material, insulating bushing, power cable and capacitor, instrument transformer and transformer. The tester is equipped with AC HV and precision standard capacitor and is easy to operate, of fully automatic testing, stable and reliable data and printable. The tester is also equipped with HV safety protector.
Technical Parameters
1. Working power supply: AC 220v 50Hz
2. Testing voltage: 0-12kV
3. Testing scope: tgδ≤0.5 resolution：0.01%
Cx ≤60000PF resolution：0.001PF
4. Basic errors: tgδ：±（1.5% the reading+0.0006）
Cx： ±（1.5% the reading +1.2PF）
5. CVT testing: GWS-III （need external power supply）
GWS-V direct test with its own self-excitation power source
6. Dimension and weight: 500 x 300 x 440 (mm), 20kg
