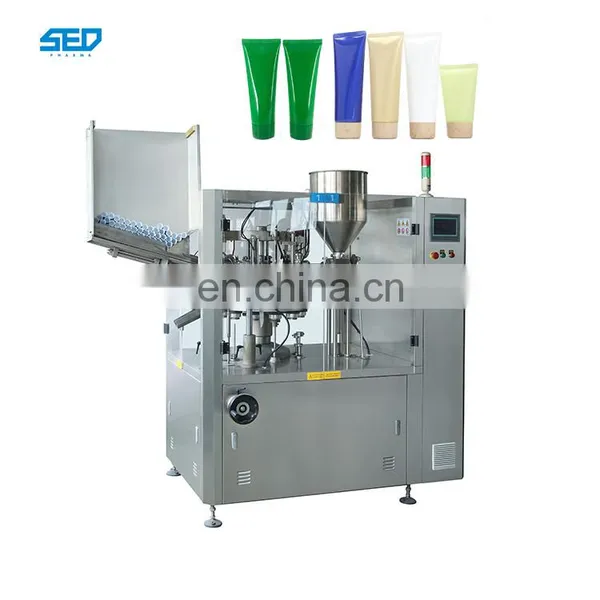

SUS304 Stainless Steel 50-70 Pieces / Min Automatic Plastic Tube Filling Sealing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-functional Toothpaste Honey Plastic Tube Filling Sealing MachineNegotiableMOQ: 1 -
50-210mm Tube Length Automatic Shampoo Soft Plastic Tube Filling MachineNegotiableMOQ: 1
-
5-250ml Automatic Cosmetic Toothpaste Tube Filling And Sealing MachineNegotiableMOQ: 1
-
Automatic Cosmetic Grease Tube Filling Machine 13-50mm Tube DiameterNegotiableMOQ: 1
-
Multi-functional Pigment Paint Ointment Soft Plastic Tube Filling MachineNegotiableMOQ: 1
Recommend Products
Products Description
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible
for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Product Name |
SED-80RG-A |
SED-80RGZ-A |
|
Power Supply |
50Hz/380V 3P |
||
Main Motor |
1.5KW |
2.2KW |
|
Jacket Barrel Heating Power |
2 KW |
||
Operation Speed |
50-75/min/max |
||
Filling Range |
Plastic tube, Laminated tubes, 3-250ml |
Aluminum tube,5-180ml |
|
Suitable Tube Length |
50-210mm |
50-180mm |
|
Suitable Tube Diameter |
13-50mm |
13-35mm |
|
Whole Machine(L×W×H) |
2200×1200×1900mm |
2500×1200×2400mm |
|
Weight |
（about）1200Kg |
||

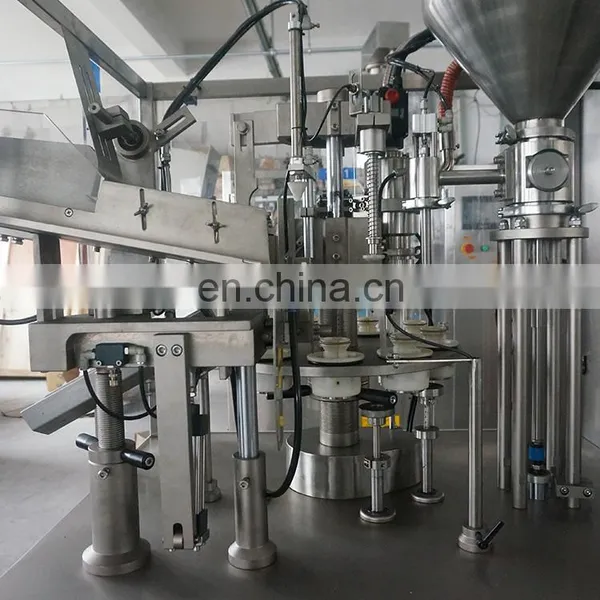

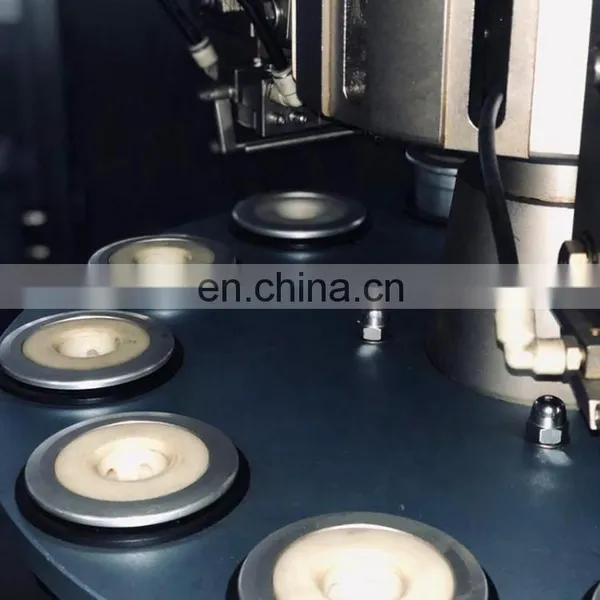

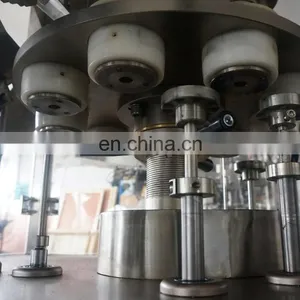

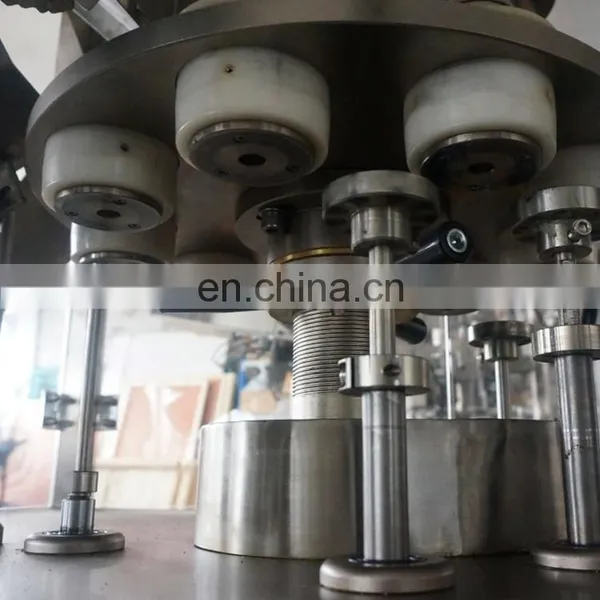

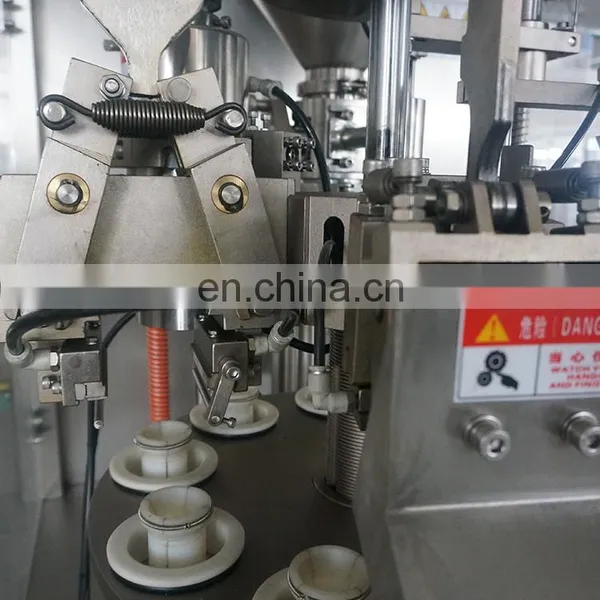

Details Images
Feature
1. No tube no filling.
2. Have counting function and prompt function when reach set amount.
3. It has error alarm,stopping and alarm fordoor opening and low air pressure, alarming function for overloading, and has the emergency stop.
4. Automatic batch number printing system and automatic tube discharging.
5. Automatic tube feedingand adopts eye mark sensor.
6. Automatic filling,tail cutting function for viscous material.
7. Main drive system located at the bottom of the machine table,with the feature of safe and withoutpollution.
8. Filling and sealing part areeasy to observation and operation.
9. Smooth and flat surface, have no dead corner, easyforcleaning and maintenance
10. Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc.
2. Have counting function and prompt function when reach set amount.
3. It has error alarm,stopping and alarm fordoor opening and low air pressure, alarming function for overloading, and has the emergency stop.
4. Automatic batch number printing system and automatic tube discharging.
5. Automatic tube feedingand adopts eye mark sensor.
6. Automatic filling,tail cutting function for viscous material.
7. Main drive system located at the bottom of the machine table,with the feature of safe and withoutpollution.
8. Filling and sealing part areeasy to observation and operation.
9. Smooth and flat surface, have no dead corner, easyforcleaning and maintenance
10. Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc.
Product Packaging
