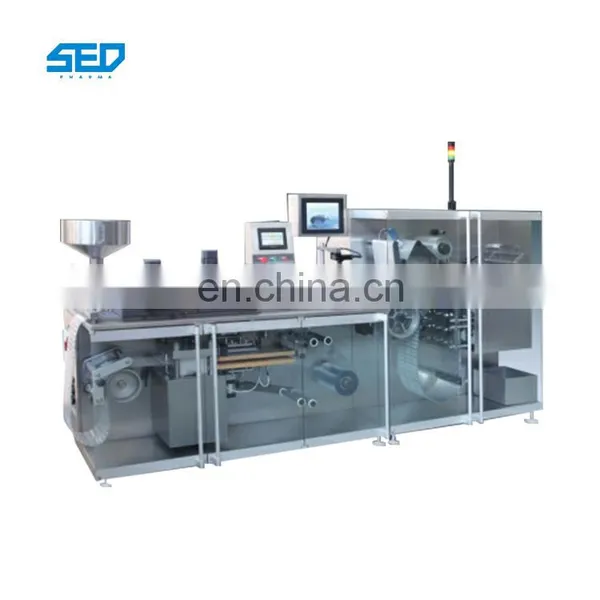

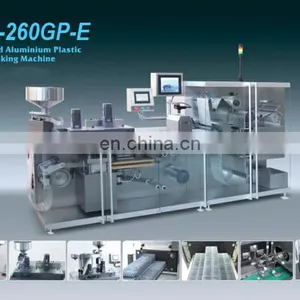

SED-260GP-E High Speed Tablet Blister Packing Sealing Machine

SED-260GP-E High Speed Tablet Blister Packing Sealing Machine thumbnail-1
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine thumbnail-2
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine thumbnail-3
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine thumbnail-4
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine thumbnail-5
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine photo-1
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine photo-2
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine photo-3
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine photo-4
SED-260GP-E High Speed Tablet Blister Packing Sealing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Hangzhou SED Imp.And Exp.Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Recommend Products
Products Description
SED-260GP-E high speed rotary blister packing machine adopts leading quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
SED-260GP-E combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cuttings per minute. High speed is with perfect function.
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronic area. It is suitable for packing capsules, tablets, milk pieces, candy, electronic element and similar materials.
Model
SED-260GP-E
Maximum punching speed
150 times/min
Maximum forming depth
12 mm
Maximum forming area
180*260 (L*W) mm
PVC (thickness * width)
(0.25-0.35)*260 mm
Aluminum foil PTP (thickness * width)
0.02*260 mm
Outer diameter of PVC roll
<φ300 mm
Outer diameter of PTP roll
<φ250 mm
PVC & PTP roll core hole diameter
φ70～76 mm

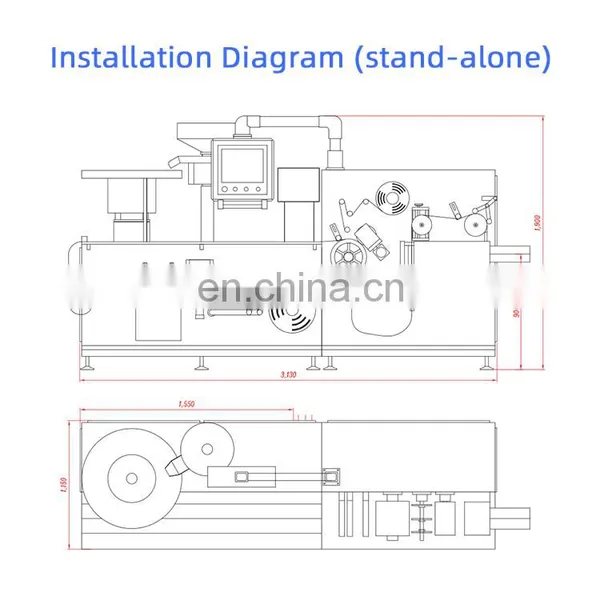

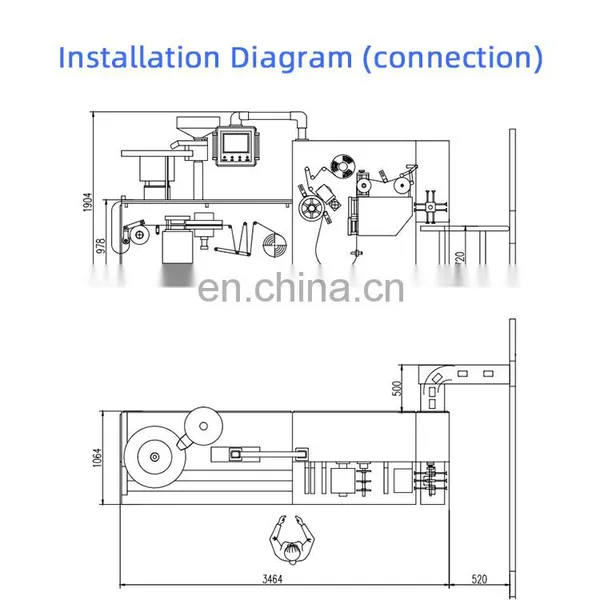

Dimension (L*W*H)
3130*1150*1900 mm (Split for transport 1800+1400)
Air pressure
0.5-0.7Mpa
Air consumption
0.2 m³/min
Cooling water
Circulating cold water tank or tap water
Water pressure
0.1-0.25Mpa
Water Consumption
0.01-0.02m³/min
Weight
2600 kg
Power
16.5kw 380V/ 50Hz (According to customer requirements)
Feature
Image and text matching (commonly known as computer matching/cursor matching) is adopted. Main features:
(1)Realize the perfect image and text matching to ensure stable production.

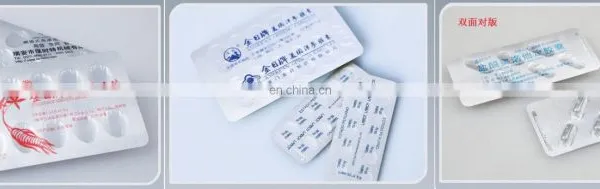

(2)Image and text printed on the front and back of the aluminum foil can be well matched.
(3)Matching can be automatically corrected when changing aluminum foil, without manual debugging and adjustment.
(4)One machine has two functions, image and text matching for aluminum-plastic plate, and image and text matching for aluminum-aluminum plate.
(5)Patented product.
