Wide Range of Application Tube Toothbrush Cartoning Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling 450 Cartons / Min Automatic Cartoning Machine Professional ManufacturerNegotiableMOQ: 1 -
Good Price High Capacity Plastic Bags Sachet Packaging MachineNegotiableMOQ: 1
-
Jam Milk Butter Packaging Machine Tablet Capsule Blister Packing MachineryNegotiableMOQ: 1
-
Wide Range of Application Automatic 35-45 Bags / Min Powder Bag Packing MachineNegotiableMOQ: 1
-
Low Maintenance Cost 35-45 Bags / Min Plastic Bag Powder Packing MachineNegotiableMOQ: 1
Recommend Products
Products Description
This machine is a fully automatic continuous cartoning machine, a high-performance product integrating machine, light, electricity, and gas. It is suitable for automatic processing of aluminum-plastic blister plates, bottles, hoses, soft double aluminum, bag-like items, etc. It can be packed in boxes, and can be matched with them to form a packaging production line.
Model |
SED-450GZH-A |
Max speed |
450 (cartons/min) |
Carton requirement |
350g/㎡ |
Carton Size Range |
(70-180)mm×(35-80)mm×(14-50)mm |
Leaflet quality requirement |
60g/㎡ |
Leaflet unfolded size range |
(80-250)mm×(90-170)mm |
Leaflet folded size range |
1-4 folds |
Compressed air working pressure |
≥0.6 Mpa |
Compressed air consumption |
About 220-240L/min |
Supply |
380V 50HZ |
Main motor power |
4.5kw |
Dimension (L×W×H) |
4800*1800*2000mm |
Net weight |
About 5500kg |
Feature
1. No products do not suck leaflet. Not leaflet does not suck carton.
2. When there is no product or the product supply is not in place, the machine will idle without pushing the product. When the product is restored to supply, it will run automatically, and the product will stop automatically when the product is not in place.
3. Low compressed air and vacuum negative pressure shutdown alarm.
4. The multi-station servo pushing mechanism can save the front operation space of the machine, and make the operation and maintenance of the machine more convenient.
5. A very simple product specification change can be made through the dial scale handwheel.

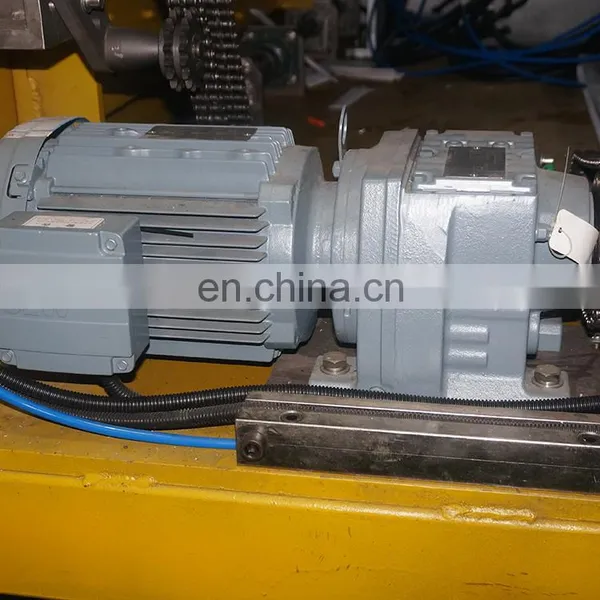

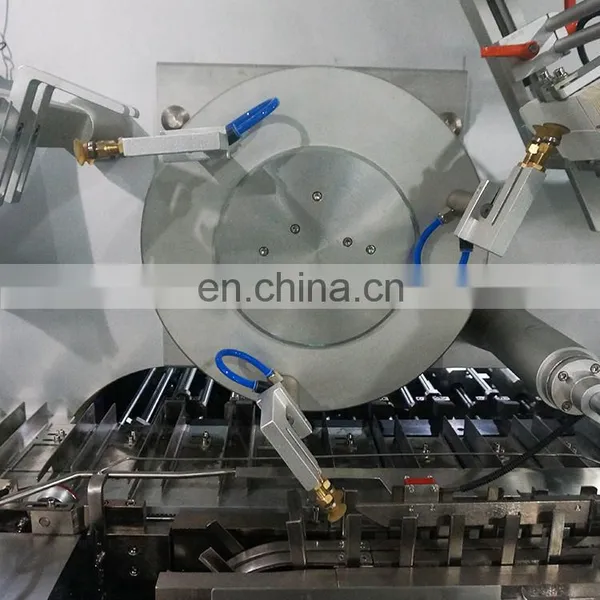

Details Images
