Automatic Medicine Bath Ball Tablet Press 35000pcs/h For Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Price Automatic Rotary Candy Tablet Pill Press MachineNegotiableMOQ: 1 -
Competitive Price One Year Warranty Rotary Milk Powder Tablet Press MachineNegotiableMOQ: 1
-
Video Technical Support Herbal Tablet Candy Tablet Pill Press MachineNegotiableMOQ: 1
-
Touch Screen 35000pcs/h Rotary Sugar Tablet Press For Small BusinessNegotiableMOQ: 1
-
High Performance Automatic Tablet Press Machine With Touch ScreenNegotiableMOQ: 1
Recommend Products
Products Description

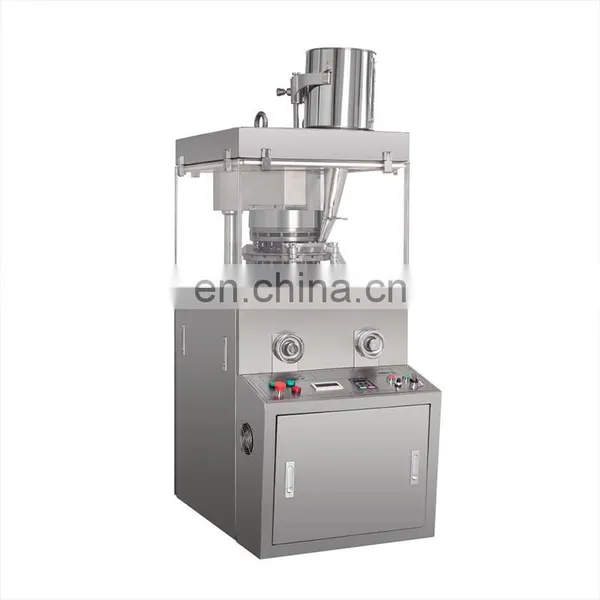

This machine is a single-pressure automatic rotary continuous tablet press developed by our factory. It presses granular raw materials into various ordinary and special-shaped tablets. It is mainly used in electronics, food, daily necessities,pharmaceuticals and other industrial sectors. The outer enclosure is fully enclosed, the material is stainless steel, and it meets GMP standards. Equipped with a transparent observation window, you can clearly see the working conditions of the machine and can be fully opened, which is easy for internal cleaning and maintenance.
This machine has the characteristics of high pressure, large compression range, and can compress various shapes of tablets, such as ordinary and special-shaped, circular, etc., and is especially suitable for multi-variety, small-batch production.Mechatronics, all controllers and regulating devices are concentrated on the body side, easy to operate. Equipped with pressure overload protection device to avoid machine damage. The transmission mechanism with oil-intrusion lubrication is sealed under the body, which prolongs the service life and avoids cross-contamination.
Model |
ZPW15D |
ZPW17D |
ZPW19D |
Punch quantity(sets) |
15 |
17 |
19 |
Max.tablet pressure(KN) |
60 |
60 |
60 |
Max.tablet diameter(mm) |
22 |
20 |
13 |
Max.filling depth(mm) |
15 |
15 |
15 |
Max.tablet thickness(mm) |
6 |
6 |
6 |
Rotation speed(r/min) |
37 |
37 |
37 |
Capacity(Pcs/h) |
35000 |
40000 |
42000 |
Motor power(kw) |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Overall size(mm) |
615*890*1414 |
615*890*1414 |
615*890*1414 |
Machine weight(kg) |
700 |
700 |
700 |

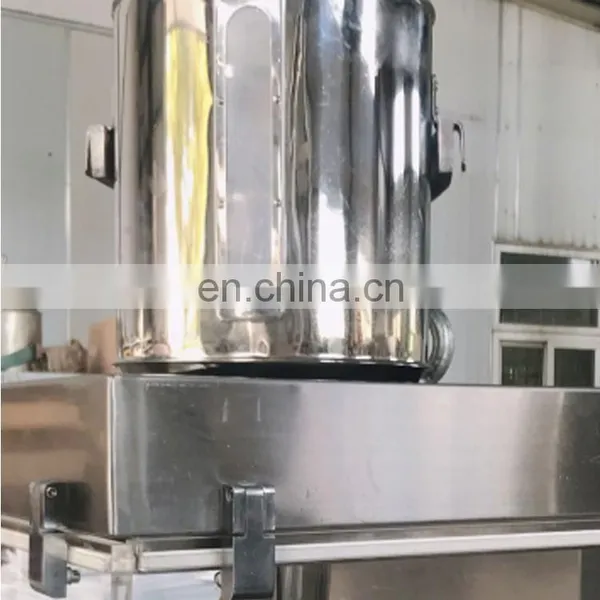

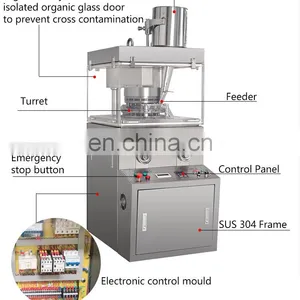

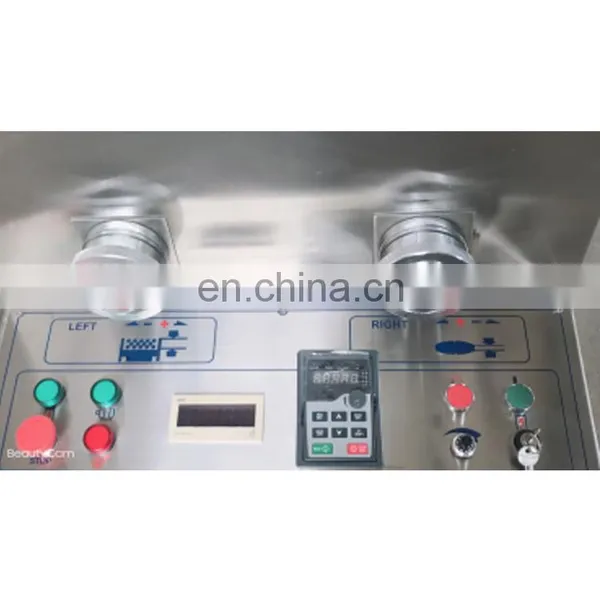

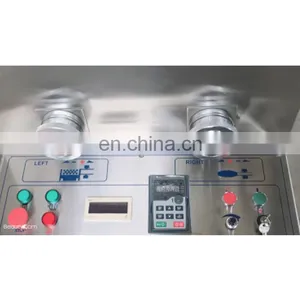

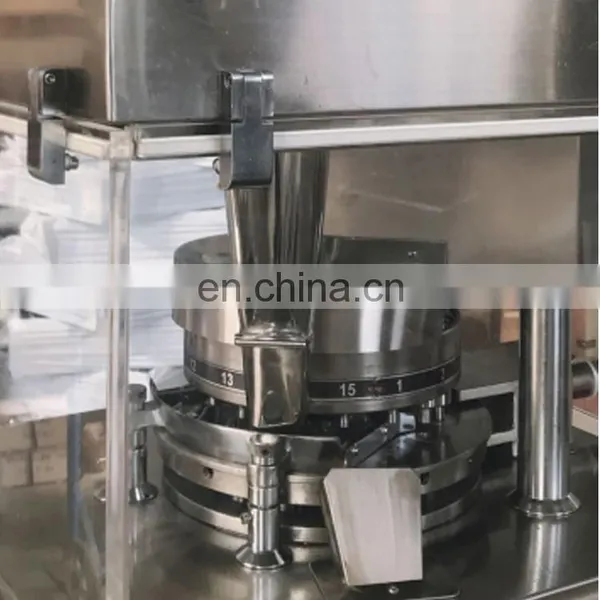

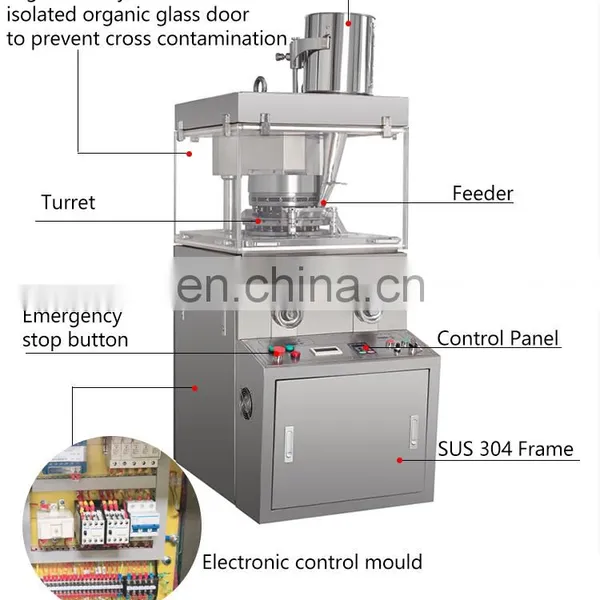

Details Images
Feature
* The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement.
* An overload protection unit is included in the system to avoid the damage of the punches and apparatus.
* It has transparent windows so that press condition can be observed clearly.
* Cleaning and maintenance is easier.
* The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused.
* An overload protection unit is included in the system to avoid the damage of the punches and apparatus.
* The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Product packaging
