1000 mm Pan Diameter Automatic Food Spray Sugar Coating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Pharmaceutical Tablet Film Coating Machines 50 - 80 kg / TimeNegotiableMOQ: 1 -
30-50kg/time Automatic Chocolate Peanut Coating Machine for Food IndustryNegotiableMOQ: 1
-
Wide Range of Application Peanut Chocolate Pill Coating Pan MachineNegotiableMOQ: 1
-
6-15 kg / Batch Simple Structure Automatic Candy Sugar Coating Pan MachineNegotiableMOQ: 1
-
6-15 kg / Batch Multi-functional Peanut Chocolate Sugar Coating Pan MachineNegotiableMOQ: 1
Recommend Products
Products Description
This machine is suitable for the sugar coating, polishing and rolling of Chinese and Western tablets, pills, pellets, small pills, water pills, dropping pills and granules in pharmaceutical, chemical, food, research institutes and hospitals. It can also be used for the trial production of new drugs in scientific research institutions.
Working Principle:

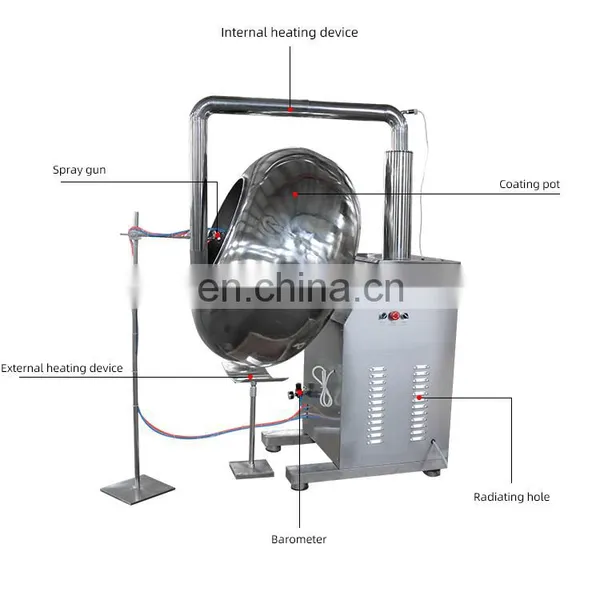

Through the pot body, the tablets roll, slide and rub in the pot, so that the coated powder is evenly distributed on all Tablets. The air outlet pipe of the attached electric blower can extend into the pan for heating. At the same time, the blower passes hot air to the inner layer of the pot to remove the water on the surface of the tablets, so as to obtain the stiff sugar coated tablets.
Model |
SED-JB300 |
SED-JB400 |
SED-JB600 |
SED-JB800 |
SED-JB1000 |
Dia. of Pan (mm) |
300 |
400 |
600 |
800 |
1000 |
Capacity (kg/time) |
1-4 |
2-6 |
6-15 |
30-50 |
50-80 |
Rotary speed of pan (rpm) |
46 |
46 |
40 |
32 |
32 |
Power of motor (kW) |
0.12 |
0.12 |
0.75 |
1.1 |
1.1 |
Power of fan (kW) |
0.06 |
0.06 |
0.1 |
0.2 |
0.2 |
Power of internal heating (kW) |
0.5 |
0.5 |
0.85 |
0.9 |
1 |
Total power (kW) |
0.66 |
0.68 |
1.7 |
2.2 |
2.3 |
Outline size (mm) |
560*300*850 |
560*400*850 |
780*600*1360 |
1150*800*1550 |
1150*1100*1600 |
Weight (kg) |
30 |
35 |
115 |
230 |
240 |
