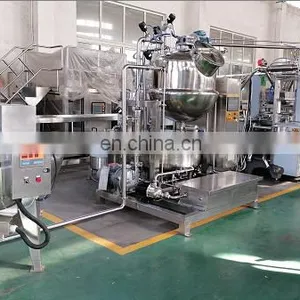

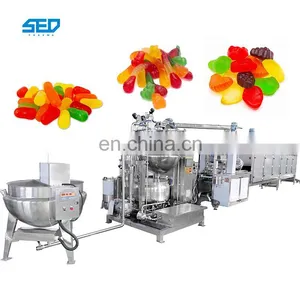

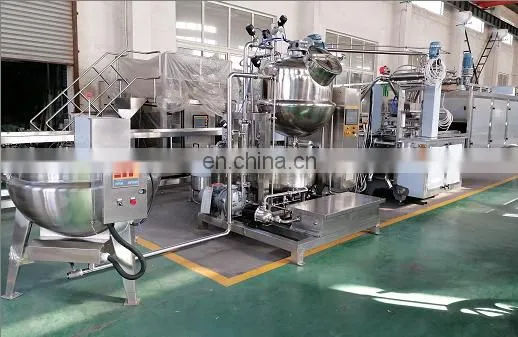

Soft Jelly Gummy Candy Making Machine Production Line With Servo System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chocolate Bar Candy Making Machine Hard Candy Pill Making Machine Lollipop Making MachineNegotiableMOQ: 1 -
Small Hard Candy Making Machine Rainbow Swirl Lollipops Candy Making MachineNegotiableMOQ: 1
-
Hard Sugar Candy Making Machine Strawberry Lollipop Candy Making MachineNegotiableMOQ: 1
-
Chocolate Bar Hard Candy Making Machine Fruit Lollipop Candy Making MachineNegotiableMOQ: 1
-
High Efficiency Square Hard Candy Making Machine Candy Lollipop Making MachineNegotiableMOQ: 1
Products Description
The machine full automatic servo driven PLC controlled jelly candy depositing line is the most advanced production line for deposited jelly candy manufacturing.
Production capacity |
50~80kg/h |
Speed of stroke |
45-55 n/min |
Candy weight |
2-12g（Max） |
Compressor air pressure |
0.4－0.6Ｍpa |
Power Voltage |
380V |
Total power |
72kw |
Compressed air consumption |
0.3m3/min |
Compressed air pressure |
0.4－0.6 Mpa |
Conditions for cooling parts |
Room temperature：＜25℃
Humidity：＜55％
|
Water consumption |
0.3 m3/h |
Product Details

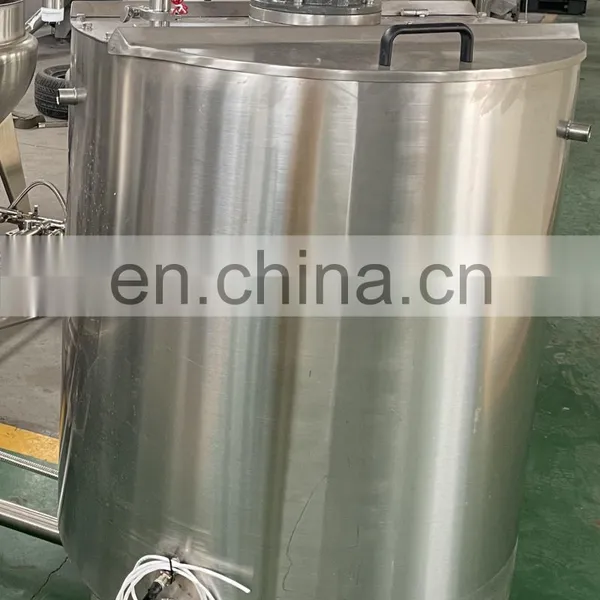

Dissolving tank
1.Dissolving tank total volume: 300L
2. Mixer motor power 0.75Kw
3. Equip with valve, steam trap, pressure meter, safety valve
4. Steam consumption: 100kg/h, pressure: 0.5Mpa
5. Machine made of SUS304 material (except standard parts)
6. Machine size (L*W*H): 1100*1100*1400 mm
7. Machine weight: 100Kg

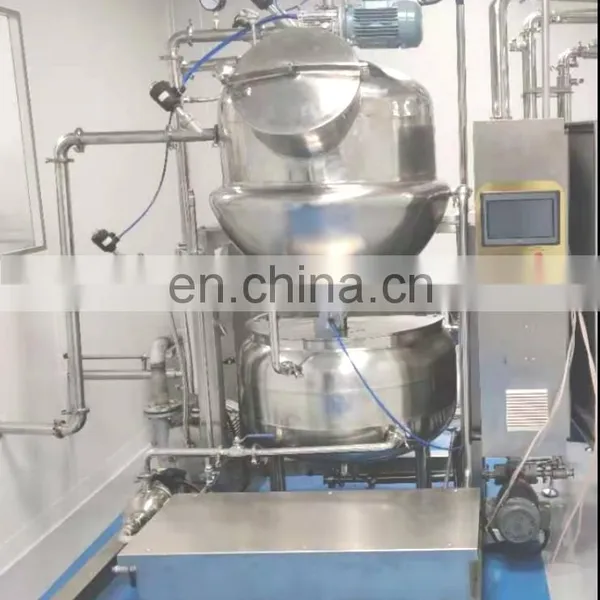

Jelly mass
cooker
1. 200L jacketed mixing tank 1set, mixer motor power 1.5Kw
2. 200L jacketed storage tank 1set
3. Vacuum pump motor power: 4kw, including SUS304 pipe and automatic valve system
4. Syrup transfer pump motor power: 0.75Kw, speed adjustable, including jacketed pipe and valve control system
5. Water heating system, including steam heating water tank, water pump, pipe heat preservation control system
6. Steam control system 1set, including automatic valve and piping system
7. Electrical control use PLC, large screen etc centralized control
8. Machine made of SUS304 material (except standard structural parts)
9. Machine size:1800*1600*2300mm
10. Machine weight: 600kg

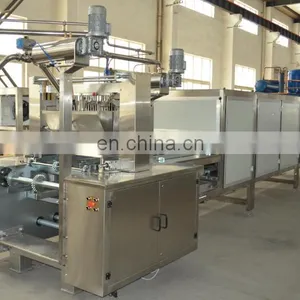

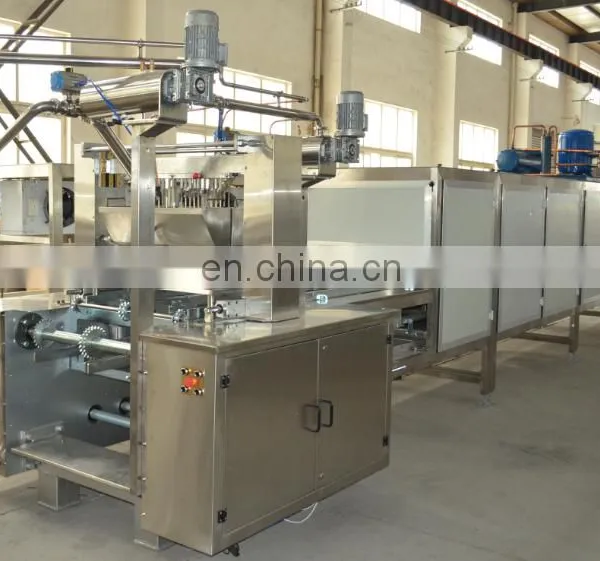

Servo system
Depositing
machine
and cooling tunnel
1. Double color servo depositor 1set, servo motor: 1.5Kw * 2sets
2. Depositor head automatic tracking use servo motor control, power 1Kw
3. Depositor electrical control: 5-route temp. controller, power 5.5Kw.
4. Mould conveyor power: 1.5Kw, use inverter adjust speed
5. Online Syrup color & flavor mixer 2sets
6. 10L flavor tank 4sets，dosing 4sets, flow rate 4L/h(Max), flow rate adjustable
7. Cooling tunnel 1set, air conditioner compressor model MT64, 5HP,power:3.75Kw
8. Cooling tunnel belt 1set, conveyor 0.75Kw
9. Equip with chain type and brush demoulding system 1set
10. Equip with pneumatic oil sprayer 1set
11. Machine made of SUS304 material (except transmission shaft, cam, chain, gears and related standard configuration parts)
12. Machine size: 5.2*1.45*2m
13. Machine weight: 2000kg
Micro-film Cooker
1.Jacket tank 1pcwith insulation, material SUS304
2.with Motor (0.75kw）and reducer
3.with SUS304 Stirrer
4.capacity：300L:
5.With high speed mixing
6.With automatic weighing
