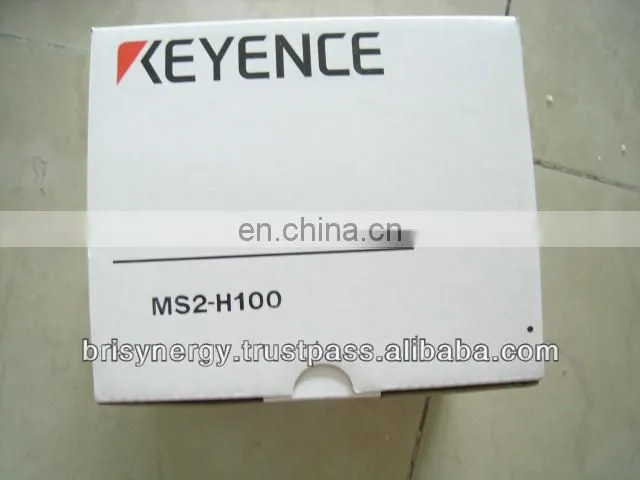

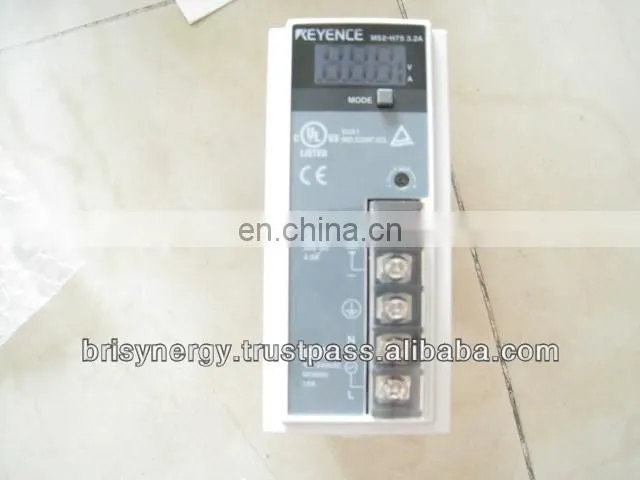

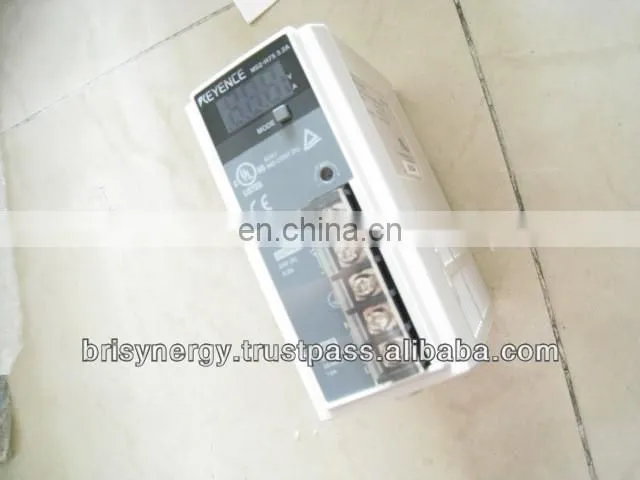

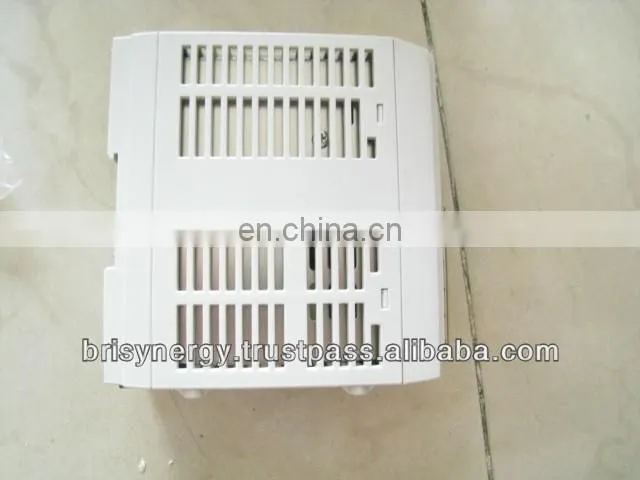

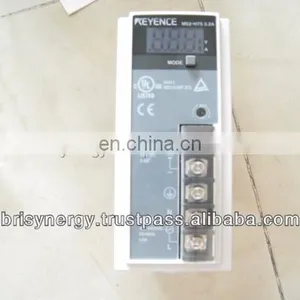

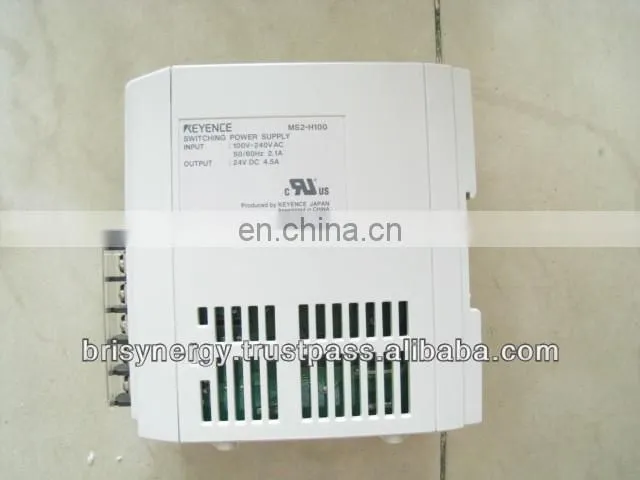

Keyence MS2 series Compact Switching Power Supply MS2-H100
Model |
MS2-H100 |
|||
Input conditions |
Input voltage*1 |
85 to 264 VAC, 110 to 370 VDC |
||
Frequency*1 |
47 to 63 Hz, DC |
|||
Inputconditions |
Input current (100/200 VAC) |
2.1/1.3A or less |
||
Efficiency (100/200 VAC) |
82, 85% typ. (at 100% load) |
|||
Leakage current (100/200 VAC) |
0.4, 0.75 mA or less (at 100% load) |
|||
Rush current (100/200 VAC) |
25, 50 A or less (at 100% load with a +25°C cold start) |
|||
Output characteristics |
Rated voltage |
24V |
||
Variable voltage range |
±5% (with V.ADJ) |
|||
Rated current |
4.5A |
|||
Ripple/noise voltage |
180mVp-p or less |
|||
Input fluctuation |
0.4% or less |
|||
Load fluctuation |
1.5% or less |
|||
Temperature fluctuation |
0.02%/°C or less |
|||
Startup time |
500 ms or less (when the ambient usage temperature is between 0 and +55°C and with rated I/O conditions) |
|||
Output holding time |
20 ms or more (when the ambient usage temperature is +25°C and with rated I/O conditions) |
|||
Protection |
Overcurrent protection |
Constant current drop method, automatic recovery, 5.3 A or more |
||
Overvoltage protection*2 |
Activates at 26.4 V or more, voltage interruption method, recovers when input is applied again |
|||
Display |
Display power |
3-digit 7-segment LED (character height: 10 mm 0.39") |
||
Power off memory time |
Approx. 10 years (at +20°C) |
|||
Display resolution |
0.1A/0.4V /1% |
|||
Environmentalresistance |
Operating ambient temperature |
-10 to +55°C (no freezing; see the derating characteristics) |
||
Operating ambient humidity |
25 to 85%RH (no condensation) |
|||
Storage ambient temperature |
-20 to +70°C (no freezing) |
|||
Withstand voltage |
3.0 kVAC, 50/60 Hz for 1 minute (between input and output); 2.0 kVAC, 50/60 Hz for 1 minute (between input and FG); 500 VAC, 50/60 Hz for 1 minute (between output and FG) |
|||
Shock resistance |
Peak acceleration: 300 m/s2, 2 times in each of the X, Y, and Z directions |
|||
Vibration resistance |
10 to 57 Hz: 0.3 mm 0.01" double amplitude; 57 to 500 Hz: 19.6 m/s2 (2 G), cycle: 5.5 minutes; for 2 hours in each of the X, Y, and Z directions |
|||
Insulation resistance |
100 MΩ or more at 500 VDC (between input and output, between input and FG, and between output and FG) |
|||
Applicable standards |
Safety standards |
UL: UL508, UL60950-1; C-UL: CSA C22.2 number 14-M95, CSA C22.2 number 60950-1-03; EN: EN60950-1, EN50178; IEC: IEC60950-1 |
||
EMC standard |
FCC Part 15 B Class A, EN55011 Class A, EN61000-6-2 |
|||
Limits for harmonic current emissions |
EN61000-3-2*3 |
|||
Other |
Parallel operation |
Possible (requires OP-42207)*4 |
||
Series operation |
Possible (requires external diode)*4 |
|||
Cooling method |
Natural air cooling |
|||
Weight |
approx 490g |
|||
