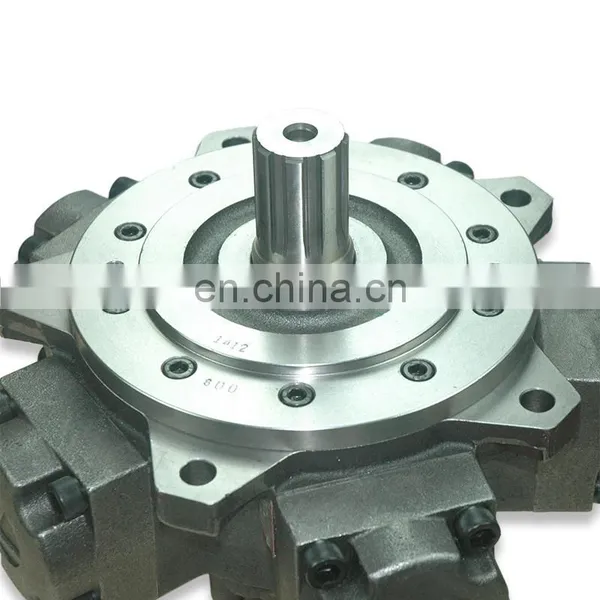

Intermot NHM8 Hydraulic Motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000 photo-2
Intermot NHM8 Hydraulic Motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000 photo-3

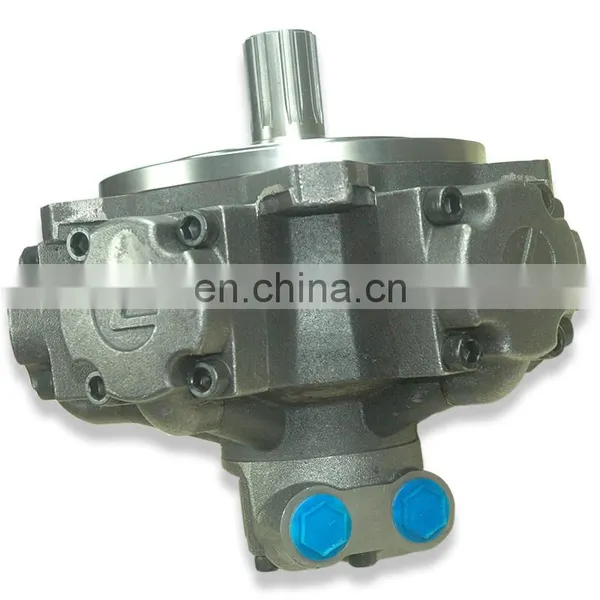

Intermot NHM8 Hydraulic Motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000 photo-4

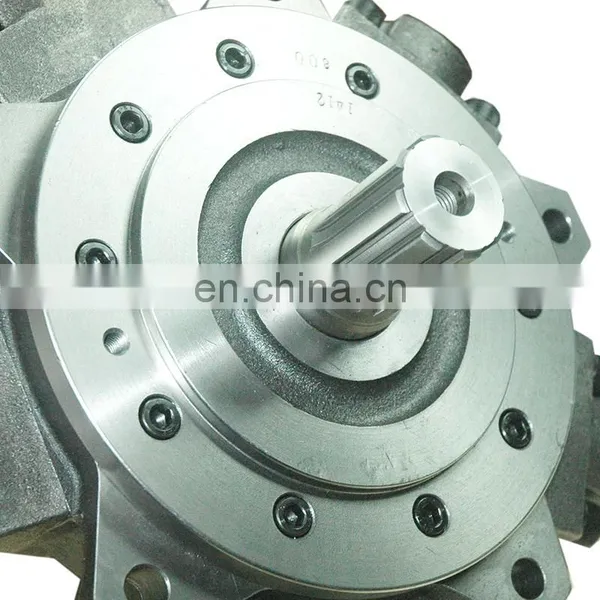

Intermot NHM8 Hydraulic Motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1996
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Dongguan Blince Machinery & Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

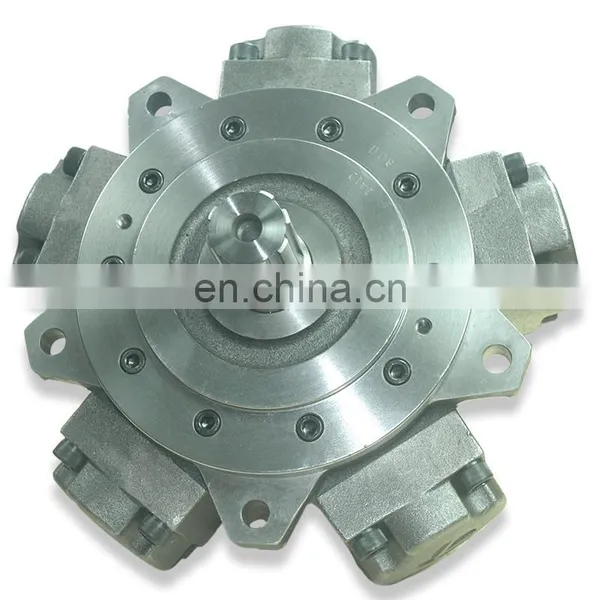

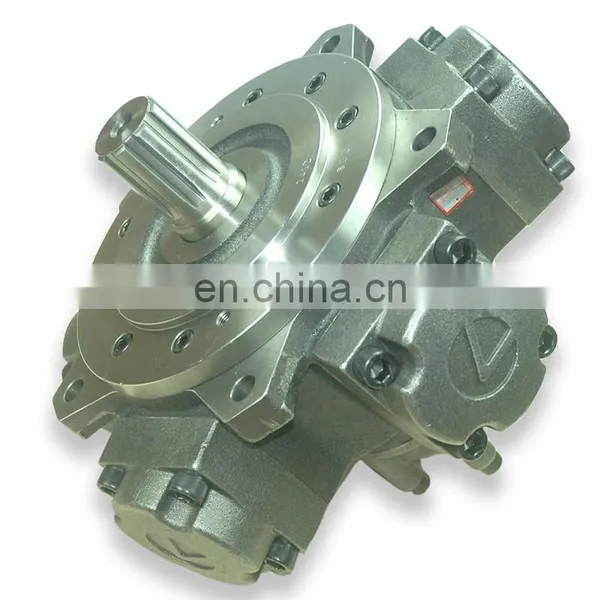

  Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000



Company Information

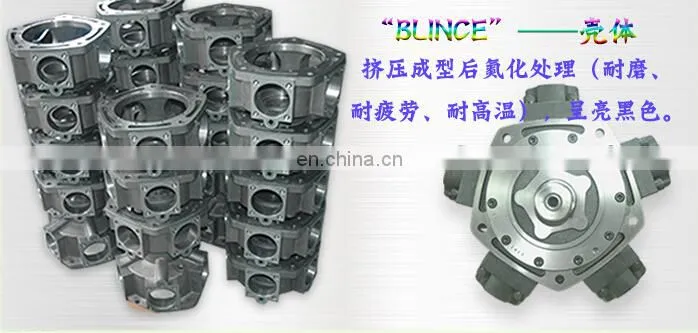

BLINCE brand in 13 years successfully settled in the industrial brand mall, the production of radial piston hydraulic motor extrusion molding, the surface is bright black, more anti - wear, corrosion resistance, high temperature. The use of Taiwan NAK oil seal is not easy to leak oil.

Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000

Product Description

Detailed description:

1.Low noise due to an eccentric crankshaft and low vibration frequency five-piston design.

2.High starting torque, good stablity under very low speed.

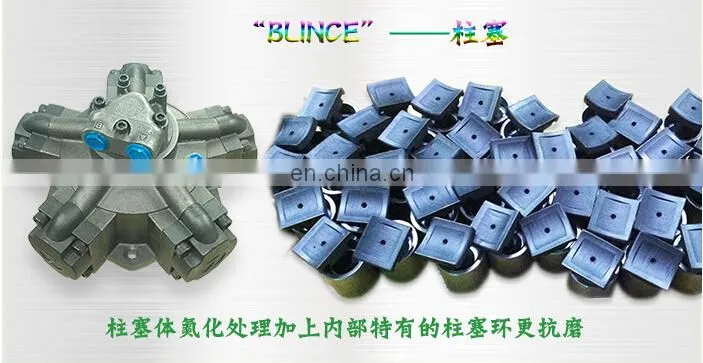

3.Using patented flat compentation distributors, reliable and less leakage. Special seals between piston and cylinder are used to ensure

4.higher volume efficiency.

5.High mechanical efficiency for using rollor bearings between crankshaft and connecting rod.

6.Reversible rotation, the output shaft can bear a relativelly heavy radial and axial external force.

Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000



Model Displacement Pressure Torque Speed range Weight
(kg)
Rated Max Rated N.m/Mpa
NHM1-63 77 25 32 248 11 15-1500 20
NHM1-80 91 25 32 335 13 15-1250 20
NHM1-100 96 25 32 355 14 15-1000 20
NHM1-110 113 25 32 419 17 15-1000 20
NHM1-125 126 20 25 371 19 15-1000 20
NHM1-140 138 20 25 410 20 15-1000 20
NHM1-160 156 16 20 376 24 15-1000 20
NHM1-200 196 16 20 464 19 15-1000 20
NHM2-100 113 25 32 419 17 15-1250 27
NHM2-125 138 25 32 512 20 15-1250 27
NHM2-150 159 25 32 588 24 15-1000 27
NHM2-175 180 20 25 532 27 15-1000 27
NHM2-200 207 20 25 611 31 8-800 27
NHM2-250 235 16 20 556 35 8-630 27
NHM2-280 276 16 20 653 41 8-500 27
NHM3-175 181 25 32 670 27 8-1000 35
NHM3-200 201 25 32 743 30 8-800 35
NHM3-220 222 25 32 819 33 8-800 35
NHM3-250 254 20 20 752 38 8-630 35
NHM3-300 289 20 20 856 43 8-500 35
NHM3-350 340 20 20 1000 50 8-400 35
NHM3-400 380 18 22.5 1008 56 8-350 35
NHM6-400 397 25 32 1469 59 5-630 57.5
NHM6-450 452 25 32 1672 67 5-630 57.5
NHM6-500 491 20 25 1451 73 5-500 57.5
NHM6-600 594 20 25 1756 88 4-500 57.5
NHM6-700 683 16 20 1616 101 4-400 57.5
NHM6-750 754 16 20 1785 112 4-320 57.5

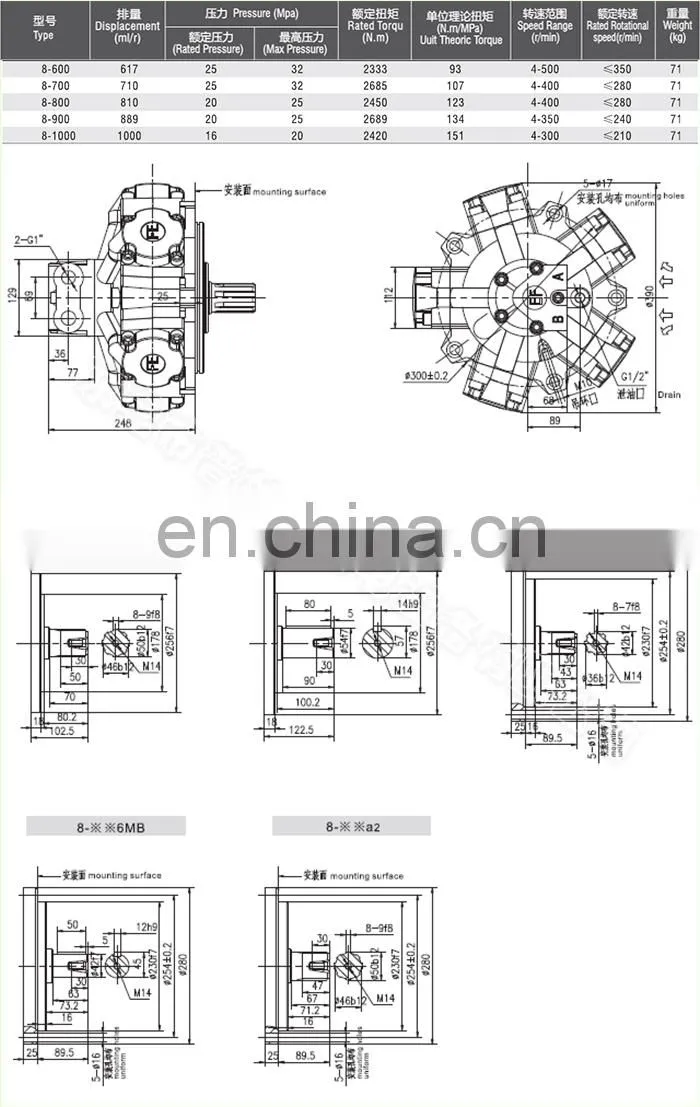

NHM8-600 617 25 32 2282 91 4-500 72
NHM8-700 710 25 32 2626 105 4-400 72
NHM8-800 810 20 25 2396 120 4-400 72
NHM8-900 889 20 25 2629 131 3-350 72
NHM8-1000 1000 16 20 2366 148 3-300 72
NHM11-700 707 25 32 2612 104 4-400 94
NHM11-800 784 25 32 2899 116 4-400 94
NHM11-900 894 25 32 3306 132 4-400 94
NHM11-1000 981 20 25 2902 145 3-320 94
NHM11-1100 1104 20 25 3265 163 3-320 94
NHM11-1200 1234 16 20 2929 182 3-320 94
NHM11-1300 1301 16 20 3079 192 3-250 94
NHM16-1400 1413 25 32 5224 209 2-400 170
NHM16-1600 1648 20 25 4874 244 2-400 170
NHM16-1800 1815 20 25 5367 268 2-350 170
NHM16-2000 2035 18 22.5 5416 301 2-350 170
NHM16-2400 2267 16 20 5364 335 2-250 170
NHM31-2500 2553 25 32 9438 378 2-200 298
NHM31-2800 2680 20 25 7935 397 1-200 298
NHM31-3000 3063 20 25 9057 453 1-200 298
NHM31-3150 3218 20 25 9518 476 1-160 298
NHM31-3500 3561 20 25 10530 527 1-160 298
NHM31-4000 4153 18 22.5 11053 614 1-160 298
NHM31-4500 4522 16 20 10698 669 1-160 298
NHM31-5000 4828 16 20 11423 714 1-160 298
NHM70-5000 4968 20 25 14626 731 1-160 550
NHM70-5400 5452 20 25 16125 806 1-160 550
NHM70-6000 5984 20 25 17697 885 0.5-125 550
NHM70-6300 6540 18 22.5 17408 967 0.5-125 550
NHM70-7000 7122 16 20 16849 1053 0.5-125 550

 Intermot NHM8 hydraulic motor NHM8-600 NHM8-700 NHM8-800 NHM8-900 NHM8-1000
