Help CenterBL3626 36 mm Small Inner Rotor Brushless dc Electric Motor
Related Products
-
BL2847 28 mm Small Inner Rotor Brushless dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces -
BL2430 24 mm Small Inner Rotor Brushless dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL2418 24 mm Small Inner Rotor Brushless dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL3657 Bldc Motor Diameter OD 36mm Inner Rotor Mini Brushless DC Motor With Built-in DriverUS$ 0.1 - 10MOQ: 1000 Pieces
-
Factory Direct Sale First Class 42mm Diameter Dc Brushless Motor Bl4260 For Home ApplianceUS$ 0.1 - 1MOQ: 1000 Pieces

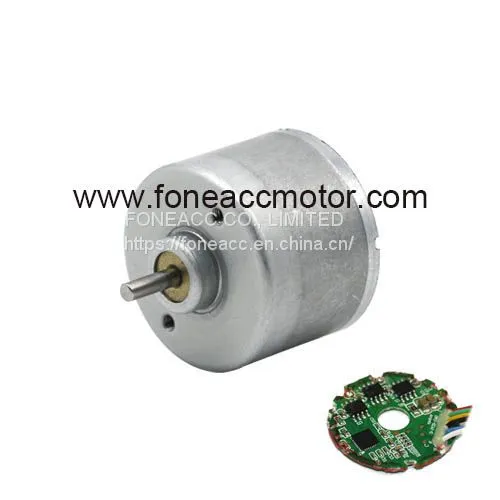

BL3626i BL3626 B3626M 36mm Small BLDC brushless dc motor
Size: Ø36.0* 26.0mm
Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable

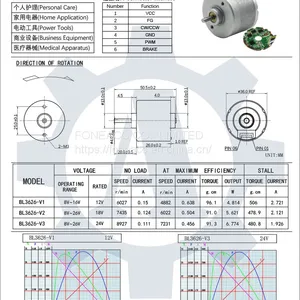

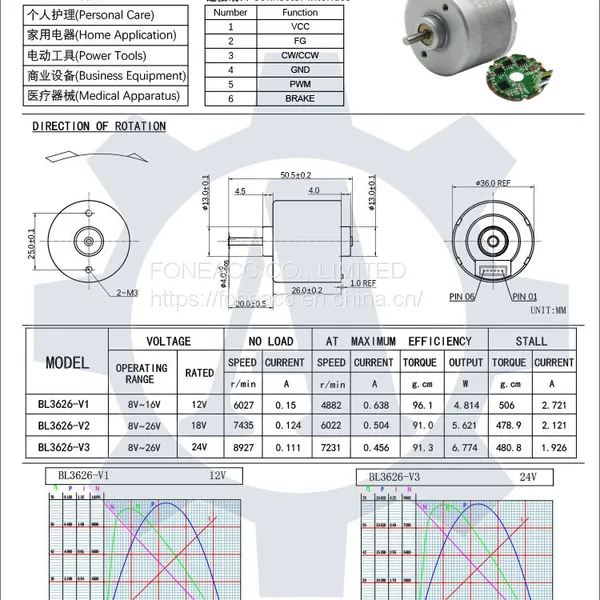

Download and view HD PDF file bl3626.pdf
BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:
|
BL3626i |
Output Power: 2W~15W | Weight: 95g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager | ||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL3626i-S01 | 8~16V | 12 | 6027 | 0.15 | 96.1 | 4882 | 0.638 | 4.814 | 506 | 2.721 |
| BL3626i-S02 | 8~26V | 18 | 7435 | 0.124 | 91 | 6022 | 0.504 | 5.621 | 478.9 | 2.121 |
| BL3626i-S03 | 8~26V | 24 | 8927 | 0.111 | 91.3 | 7231 | 0.456 | 6.774 | 480.8 | 1.926 |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
|
| BL3626 Data: |
|
