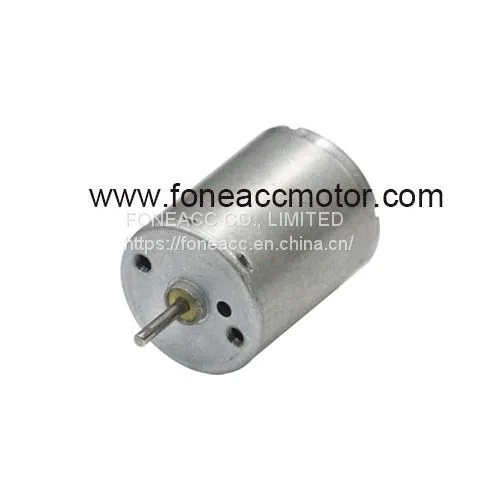

Help CenterRF-370 27.7 mm Diameter Micro Brush dc Electric Motor
Related Products
-
FC-280 24 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces -
RC-280 24 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
RC-260 23.8 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
FK-130 FC-130 20.4 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
FF-180 20.4 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
1) Output power: 0.3~1.5W; 2) Size: Ø24.4×30.8mm; 3) Voltage: DC 6V,12V; 4) No-load speed: 5400,6100 RPM; 5) No-load current: 0.028,0.06A; 6) Maximum efficiency torque: 25.77 G.CM; 7) Maximum efficiency power: 1.4W; 8).high quality; 9).Permanent Magnet brush motor; 10).ROHS
| Model | Rated Volt. |
No Load |
At Max Efficiency |
Stall |
|||||||||
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
||||||
rpm |
A |
rpm |
A |
gf.cm |
mN.m |
oz.in |
W |
A |
gf.cm |
mN.m |
oz.in |
||
RF-370CH-22170 |
6V |
6100 |
0.06 |
5250 |
0.386 |
25.77 |
2.5 |
0.35 |
1.39 |
2.4 |
185 |
18.1 |
2.5 |
RF-370CH-17315 |
6V |
3250 |
0.035 |
2688 |
0.167 |
19.88 |
1.9 |
0.27 |
0.55 |
0.76 |
115 |
11.2 |
1.5 |
RF-370CH-15370 |
12V |
5400 |
0.028 |
4700 |
0.147 |
22.7 |
2.2 |
0.31 |
1.1 |
0.92 |
175 |
17.1 |
2.4 |
RF-370CH-11670 |
12V |
3630 |
0.016 |
3000 |
0.08 |
19.1 |
1.8 |
0.26 |
0.58 |
0.38 |
110 |
10.7 |
1.5 |

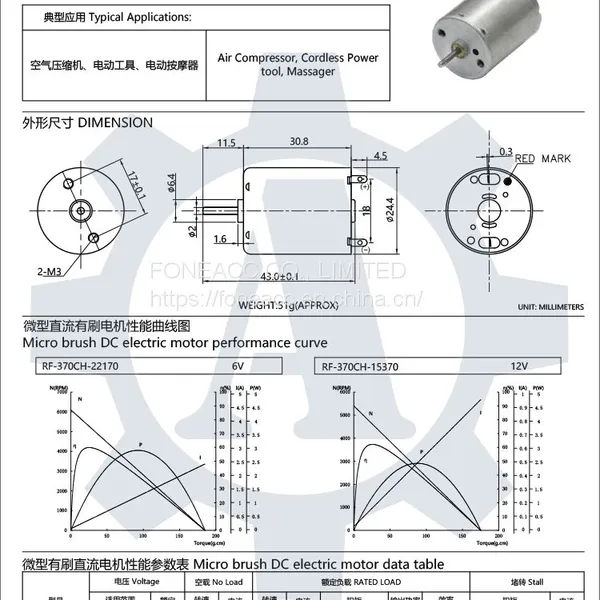

Click here to view HD clear specification of RF-370 micro dc motor.
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Frequently Asked Questions
|
Q: Are all of your gearheads reversible? A: Yes. Q: What is the delivery time of sample? A: One week or two, if you choose from our regular specifications. It takes 3 weeks or more if it is not regular specifications. Q: What is the delivery time of mass production? A: Normally one month. It may take longer time if it is a very big quantity or other special situation. Q: Do you accept small quantity? A: Yes, it is only available for samples, we do not accept small order. Q: Do you have motors in stock? A: No, not always. All motors are made with orders and with custom specifications. But sometimes we got some specific models in stock if you want products in stock, just ask our team for more information. Q: Do you offer OEM/ODM service? A: Yes, we do. Q: How to make payment? A: a) PayPal for samples. We prefer PayPal for a small amount of money. b) T/T for orders. Regular payment terms: 50% deposit, balance before shipment/balance against shipping documents. Q: How to deliver? A: a) For samples and total gross weight less than 100KG, we recommend DHL Express. It is very fast and safe and we can get a very low discount from DHL. b) We go with FOB/CIF/CFR/DAP terms if shipment by sea and by air. |
