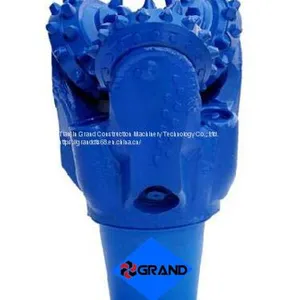

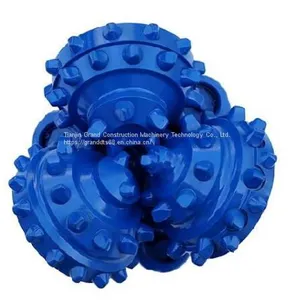

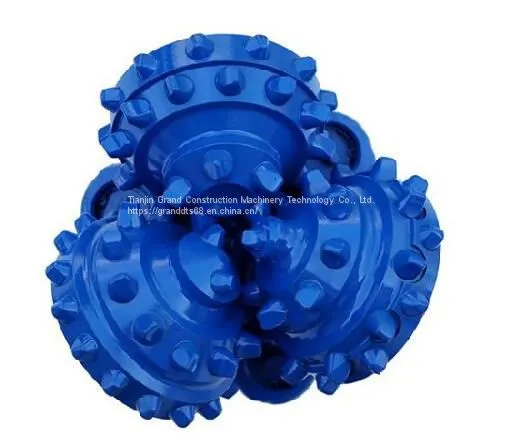

Help CenterTricone Bit IADC437 TCI Tricone Bits TCI Drill Bit
Related Products
-
Steel Body PDC Bit 16” S1665FG/S323 PDC Oilfield Drill Bit PDC Well Drilling BitNegotiableMOQ: 10 Pieces -
Hybird PDC Bit 4 PDC Bit For Well Drilling GRANDDTS PDC Bits PDC Drill Bits ManufacturersNegotiableMOQ: 10 Pieces
-
Conical Pick Coal Cutter Pick Oil Drilling Bit SupplierNegotiableMOQ: 10 Pieces
-
Horizontal Directional Drilling Bit Horizontal Drill Bit Oil Drilling Bit China Oil Well Drill BitNegotiableMOQ: 10 Pieces
-
Tricone Drill Bit Tricone Drilling Steel Tooth Tricone Bit Wholesale Tricone BitNegotiableMOQ: 10 Pieces
Wholesale TCI Tricone Drill Bits
Hardfacing
Tungsten carbide particle hardfacing is applied liberally along the shirttail and extended up the leading edge of the bit leg for additional protection in high-speed, directional or abrasive applications
Shirttail Compacts
Tungsten carbide compacts in the shirttail protect the leg and body in abrasive formations and deviated or horizontal wells.
Gauge Inserts
More tungsten carbide inserts are placed in the gauge to reduce the wear in the abrasive formation. It can protect gauge and increases the stability and life of the bit.
Teeth
The teeth are composed of premium tungsten carbide and some other elements, our engineer fine-tuned the compacts to match specific formations and drilling applications.
Nozzle
Optimized flushing system including three combined nozzles, balances fluid flow, allows effectively cleaning bottom-hole zone and anti-balling.
GRANDDTS TCI Bit Technical Data
Bit Size |
IADC Code |
API Connection |
RECOMMENDED PARAMETERS |
||
in |
mm |
Rotary Speed(rpm) |
Weight On Bit(KN) |
||
8-1/2” |
215.9 |
437 |
4-1/2"API REG |
240〜70 |
0.35〜0.9 |
9-1/2” |
241.3 |
437 |
6-5/8"API REG |
240〜70 |
0.35-0.9 |
12-1/4” |
311.1 |
437 |
6-5/8"API REG |
240-70 |
0.35-0.9 |
If you have any question on PDC Bit,Oil Well Drill Bit,Tricone Bit. We will give the professional answers to your questions.
