Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock

Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock thumbnail-1
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock thumbnail-2
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock thumbnail-3
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock thumbnail-4
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock photo-1
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock photo-2
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock photo-3
Mcp79520-i/ms Real-Time Clock RTC Microchip Original Stock photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MICROCHIP
Place of Origin:
Albania
Model Number:
MCP79520-I/MS
Contact Supplier Request Quote Chat Now
Shenzhen Nanbeihang Electronic Development Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MICROCHIP
Place of Origin Albania
Model Number MCP79520-I/MS
Type Drive IC
Package 5000
D/C 1000

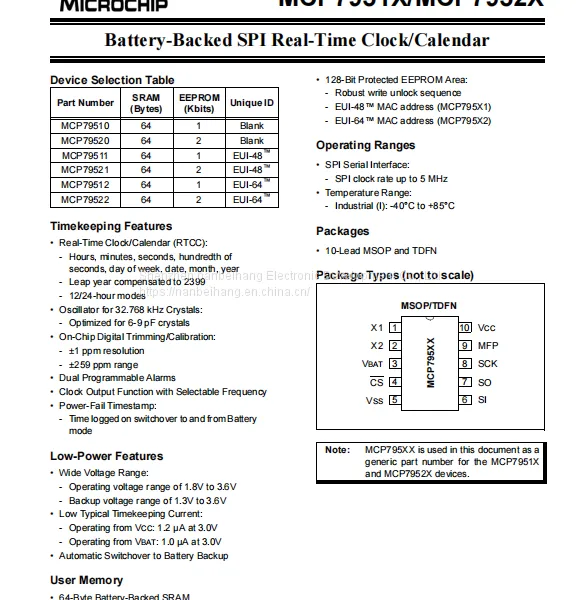

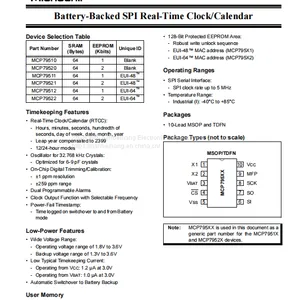

Description
The MCP795XX Real-Time Clock/Calendar (RTCC)
tracks time using internal counters for hours, minutes,
seconds, hundredth of seconds, days, months, years
and day of week. Alarms can be configured on all
counters up to and including months. For usage and
configuration, the MCP795XX supports SPI
communications up to 5 MHz.
The MCP795XX is designed to operate using a
32.768 kHz tuning fork crystal with external crystal
load capacitors. On-chip digital trimming can be used
to adjust for frequency variance caused by crystal
tolerance and temperature.
SRAM and timekeeping circuitry are powered from the
backup supply when main power is lost, allowing the
device to maintain accurate time and the SRAM
contents. The times when the device switches over to
the backup supply and when primary power returns
are both logged by the power-fail timestamp.
The MCP795XX features 128 bits of EEPROM which
is only writable after an unlock sequence, making it
ideal for storing a unique ID or other critical
information. The MCP795X1 and MCP795X2 are
pre-programmed with EUI-48 and EUI-64 addresses,
respectively. Custom programming is also available.
The MCP795XX has a shared pin for outputting a
selectable frequency square wave or alarm signals.



Timekeeping Features

• Real-Time Clock/Calendar (RTCC):
- Hours, minutes, seconds, hundredth of
seconds, day of week, date, month, year
- Leap year compensated to 2399
- 12/24-hour modes
• Oscillator for 32.768 kHz Crystals:
- Optimized for 6-9 pF crystals
• On-Chip Digital Trimming/Calibration:
- ±1 ppm resolution
- ±259 ppm range
• Dual Programmable Alarms
• Clock Output Function with Selectable Frequency
• Power-Fail Timestamp:
- Time logged on switchover to and from Battery
mode
Low-Power Features
• Wide Voltage Range:
- Operating voltage range of 1.8V to 3.6V
- Backup voltage range of 1.3V to 3.6V
• Low Typical Timekeeping Current:
- Operating from VCC: 1.2 µA at 3.0V
- Operating from VBAT: 1.0 µA at 3.0V
• Automatic Switchover to Battery Backup
User Memory
• 64-Byte Battery-Backed SRAM
• 1 Kbit or 2 Kbit EEPROM:
- Software write-protect
- Page write up to 8 bytes
- Endurance: one million erase/write cycles
• 128-Bit Protected EEPROM Area:
- Robust write unlock sequence
- EUI-48™ MAC address (MCP795X1)
- EUI-64™ MAC address (MCP795X2)
Operating Ranges
• SPI Serial Interface:
- SPI clock rate up to 5 MHz
• Temperature Range:
- Industrial (I): -40°C to +85°C

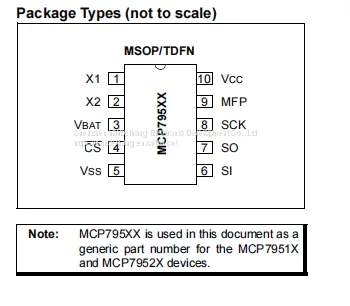

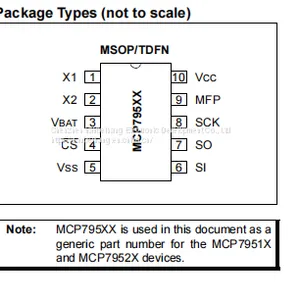

Packages
• 10-Lead MSOP and TDFN


Product Tags: MCP79520-I/MS , Real-Time Clock RTC , in stock
