Surge Protector Power Source Lightning Arrester High Quality Surge Protection Devices

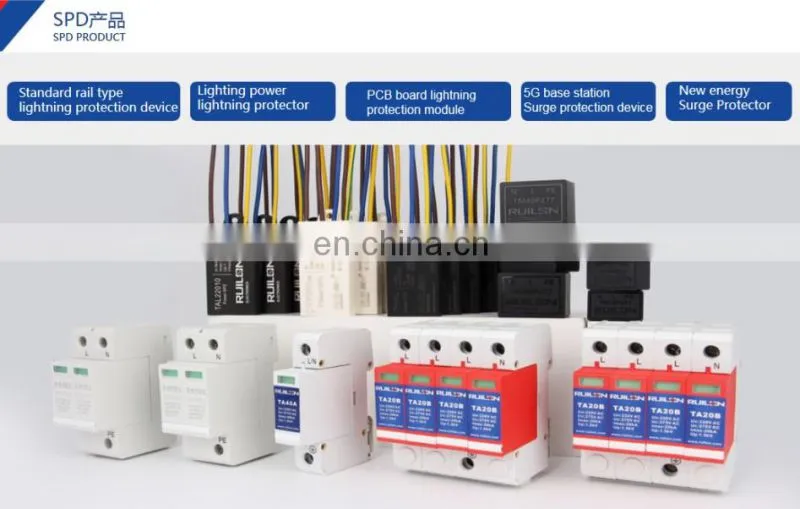

Power surge protectors are divided into explosion-proof box type and modular type. All adopt a varistor with excellent non-linear characteristics. Under normal conditions, the surge protector is in a very high resistance state, and the leakage current is almost zero, thus ensuring the normal power supply of the power system. When a surge overvoltage occurs in the power system, the power surge protector is turned on immediately within nanoseconds, limiting the amplitude of the overvoltage within the safe working range of the equipment, and releasing the surge energy into the ground at the same time Lose. Subsequently, the surge protector quickly changes to a high-impedance state, which does not affect the normal power supply.
The connected power surge protector, also known as the power surge protector, is suitable for AC 50/60HZ, rated voltage 220V/390V power supply system, to protect indirect lightning and direct lightning or other transient overvoltage surges. It is suitable for the requirements of surge protection in households, tertiary industries and industrial fields, with phase-to-phase, phase-to-earth, phase-to-neutral, neutral-to-earth and combinations of protection modes.

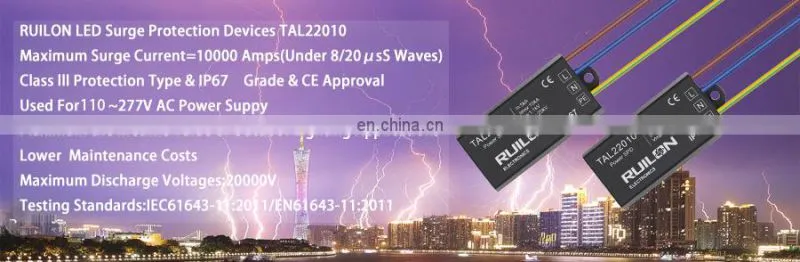

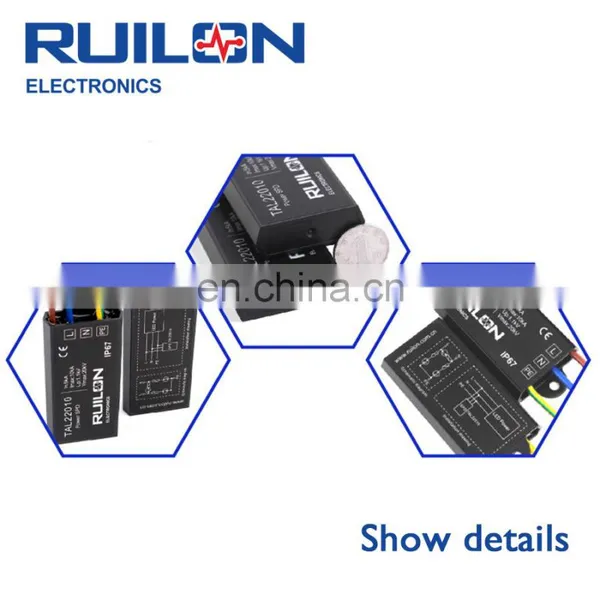

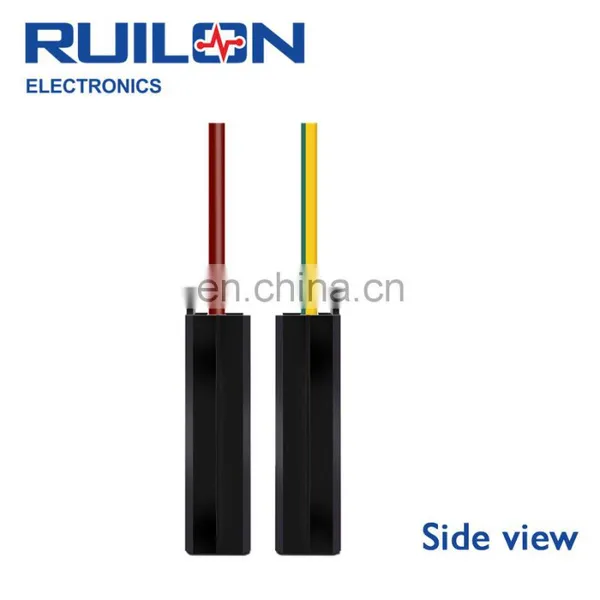

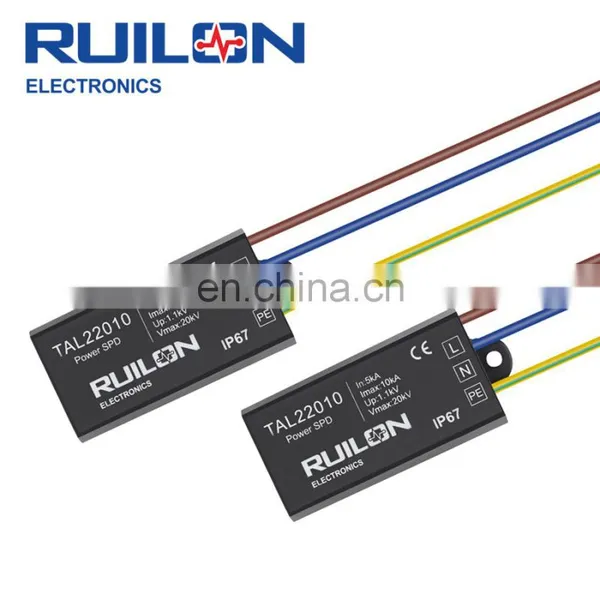

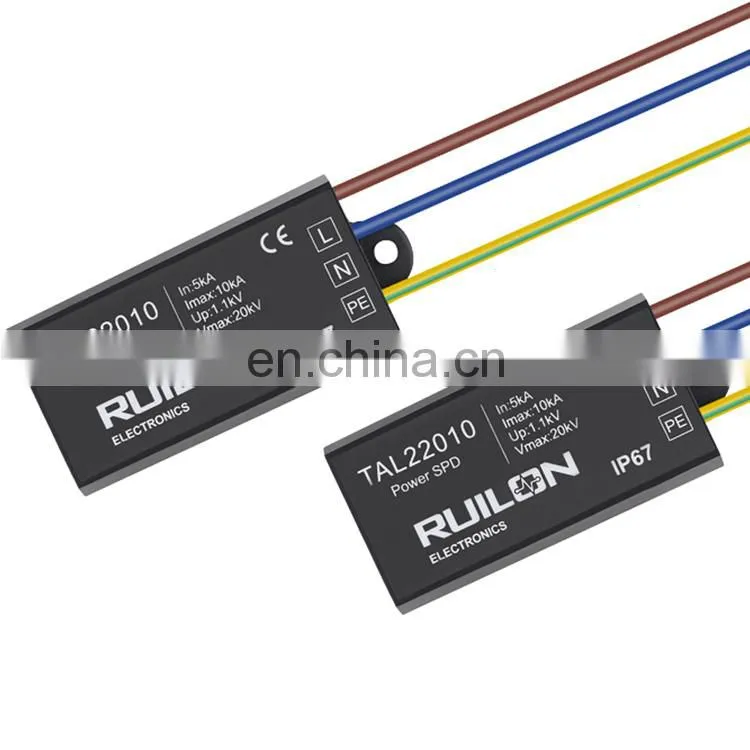

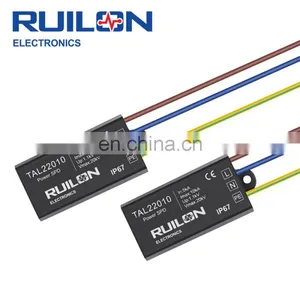

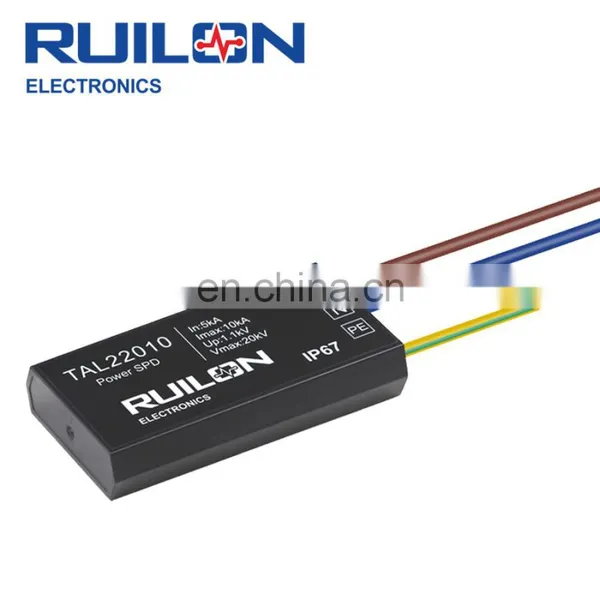

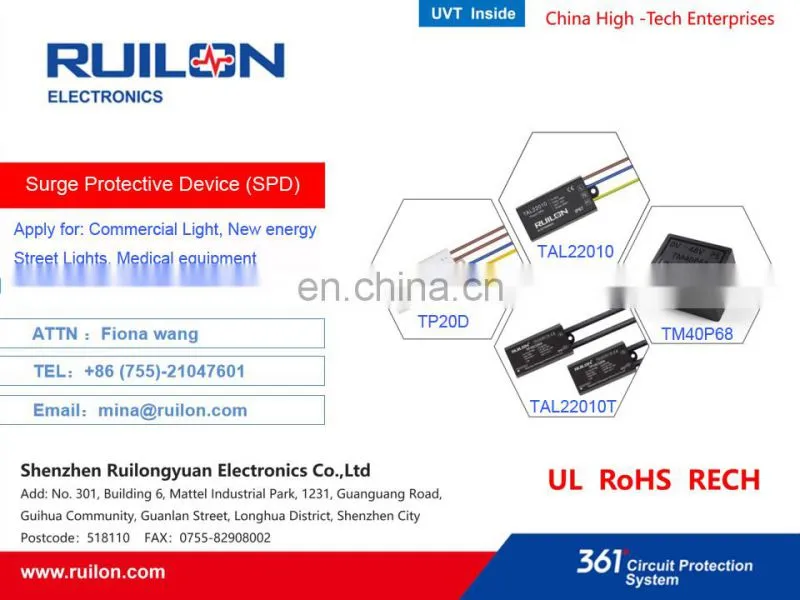

1. Surge Protector: TAL22010
2. Patent Yes,we have got the patent certificate,all the rights belong to RUILON
3. Warranty 1 Years
4. Connection Mode Parallel &Series Options(TAL22010 :Parallel Connection)
5. Full Protection Yes,protect the surge between:1.L&N
2.N&ground wires
3.ground wires & L wires

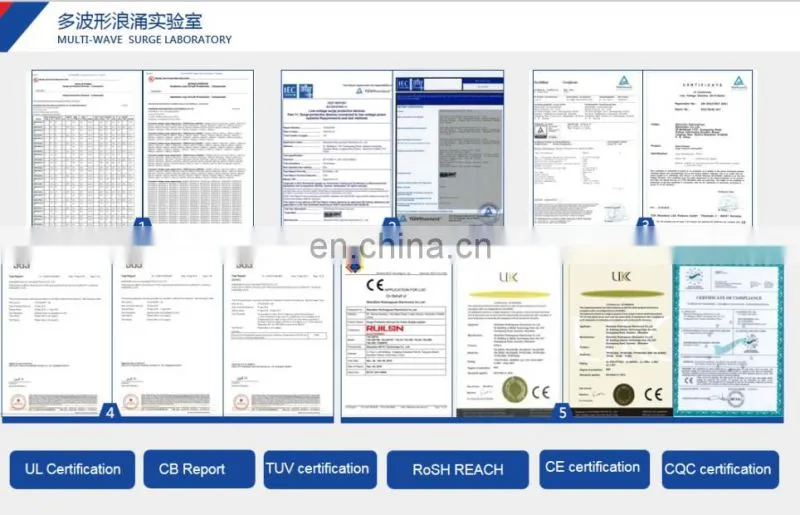

6. Certification CE Approved

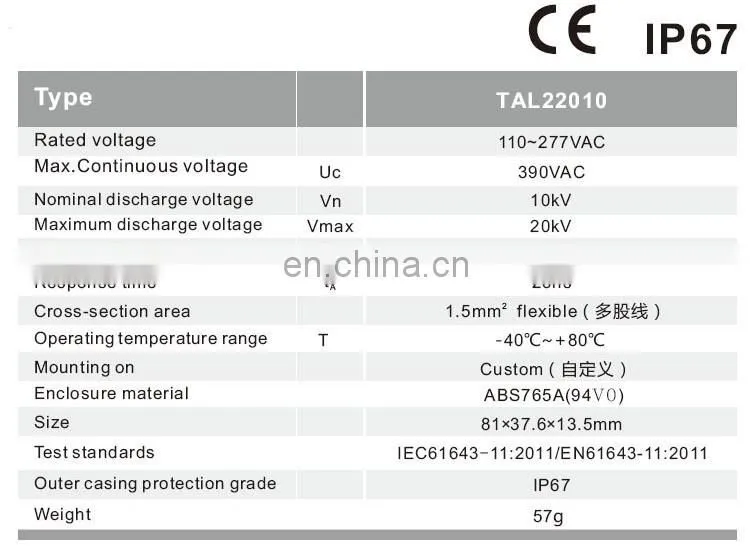

7. Testing Standard IEC61643- 11:2012/EN61643-11:2012
8. Nominal Operating Voltage(UC) 110~277 VAC
9. Maximum Continuous Operating Voltage(UN) 560VDC(320VAC)
10. Nominal Discharge Current(In) 5KA
11. Vn 10kV
12. Maximum Discharge Current(Imax) 10KA
13. Vamx 20kV
14. Protection Level(Up) 1.1KV
15. Working Frequency(f) 50-60Hz
16. Response Time(tA) 25nS
17. Size 13.5*37.6*81mm
18. Working Temperature -40~+85℃
19. Protection Grade IP67
20. Testing Standard GB18802.1-2011, EN61643-11
21. Feature dampproof/waterproof/dustproof/fireproof
22. Weight 67g /Unit
23. All the components inside meet certification UL &CE&Rohs Approved
24. Screw Hole M4
25. Outer Sheels Material 94-V0 Grade Shells

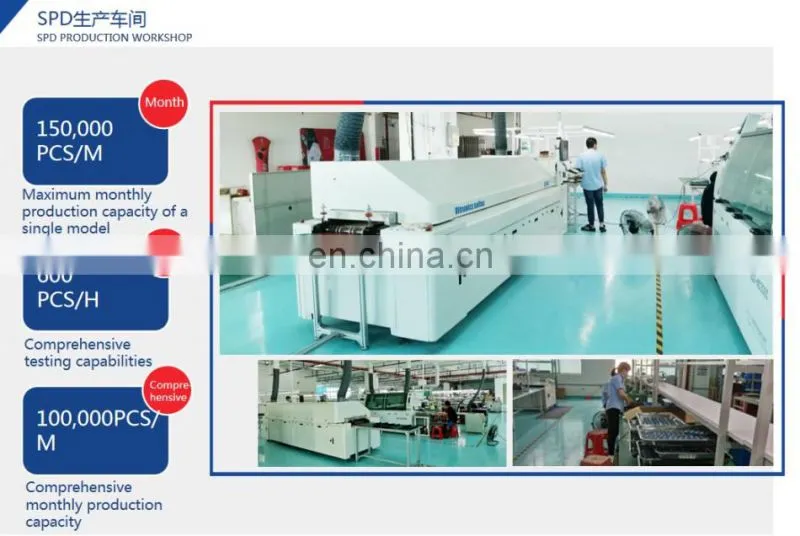

Production craft:
Tangent line (length): 9cm ; 10cm ; 13 cm (customizable).
Diameter: 16AW; 14AW.
Tin-plating on the other end of the line.
With two cables in series.
Wave soldering tin-plating, trimming, fix shaping.
Semi-finished product test, defective product repair.
Laser marking or Labeling.
Finished product testing, functional testing, inspection of appearance before package.
Company History:
Shenzhen Ruilongyuan Electronics was established in 2009 and is a state-level high-tech enterprise. It is committed to the development, production and marketing of ceramic gas discharge tubes, surge suppressors, PTC, TVS, MOV products and protection solutions. Products are widely used in new energy electronic circuits, new energy power supply systems, street lighting, intelligent highway transportation,
intelligent railway transmission, security industry, computer data transmission, communication base stations and terminal data transmission and other fields and industries. Lines, power ports, and power lines provide full levels of surge protection.
