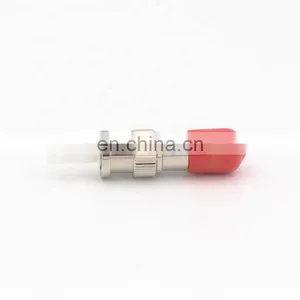

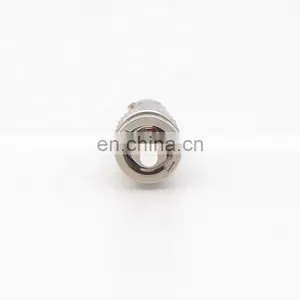

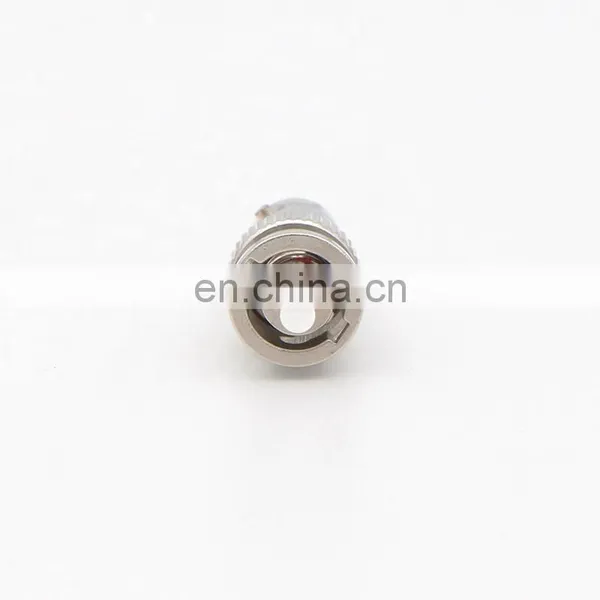

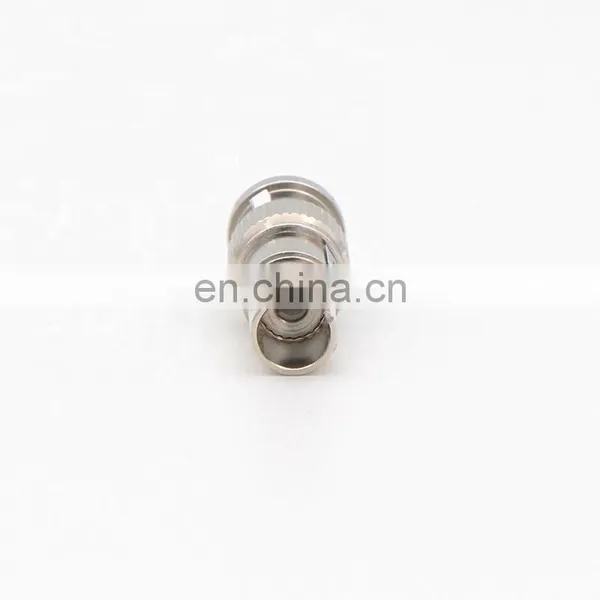

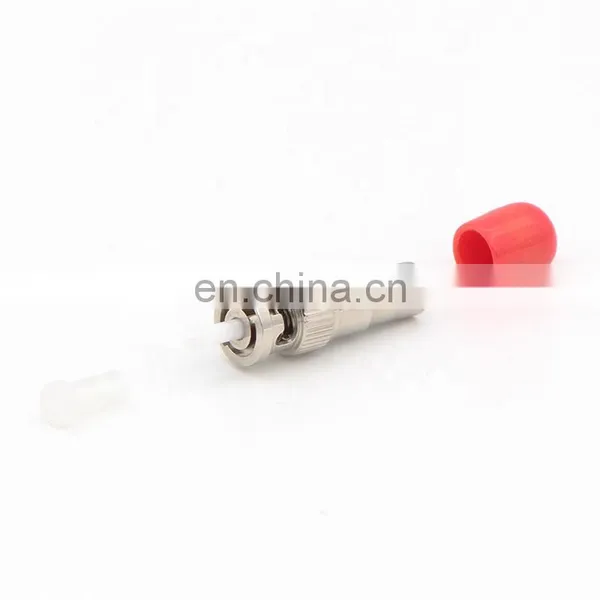

Help CenterST/UPC Singlemode Fixed Fiber Optic Attenuator
Related Products
-
FTTX Network LC UPC Attenuator 5dB 10dB Fiber Optic AttenuatorNegotiableMOQ: 1 -
Fiber Optic Attenuator Patch Cord Optical Variable FC APC AttenuatorNegotiableMOQ: 1
-
FTTH System Field Installable Connectors Sc/apc Fast Conector 3mmNegotiableMOQ: 1
-
Factory Price FTTH Quick Field Assembly Optical Fiber Connector LC/PC Fast ConnectorNegotiableMOQ: 1
-
1000BASE-BX Bidi GBIC 1.25Gb/s 1550nm/1310nm- 40km ModuleNegotiableMOQ: 1
Product Pictures:
1.Telecommunication networks
2.Data Networks
3.Vidio & CATV
Feature:
- Fully compatible with ST fiber optic connectors
- Low PDL and Low back reflection
- High power endurance
- Wavelength independent
- Precise control of attenuation range
- Simple manipulation
- Highly Reliable Physical Contact Connectors
- Available in single-mode or multi-mode
- Fixed Attenuation value customized from 1-30db
|
Operation wavelength |
SM: 1200 to 1600nm or 1310/1550nm |
|
MM: 850nm, 1300nm |
|
|
Return Loss |
≥ 50 db (PC) |
|
≥ 55 db (UPC) |
|
|
≥ 65 db (APC) |
|
|
Attenuation Accuracy |
+/-0.5 db for 1 to 5db attenuation |
|
+/-10% for 6 to 30db attenuation |
|
|
Polarization Dependent loss |
≤ 0.2db |
|
Maximum optical Input power |
200mW |
|
Operating Temp Range |
-40 to + 80 degree |
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
Shipping:
If you have any question feel free to contact us.
