SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge

SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge thumbnail-1
SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge thumbnail-2
SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge thumbnail-3
SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge photo-1
SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge photo-2
SGMP-08A3TE12 Yaskawa Controller Module Use Electrostatic Discharge photo-3
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Yaskawa
Place of Origin:
Japan
Model Number:
SGMP-08A3TE12
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Bao'an international airport
Delivery Detail:
6 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yaskawa
Place of Origin Japan
Model Number SGMP-08A3TE12
Type Servo Motor
Certification CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Explosion-proof
Voltage(V) 200V
Output Power 750W
Continuous Current(A) 4.1A
Speed(RPM) 3000R/MIN
Commutation Brushless
Brand: Yaskawa Model: SGMP-08A3TE12
Place Of Origin: Japan Type: AC SERVO MOTOR
Power: 750W Volatge: 200V
Current: 4.1A Ins: B
High Light: ewing machine servo motor,ac servo motor

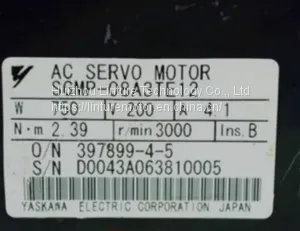

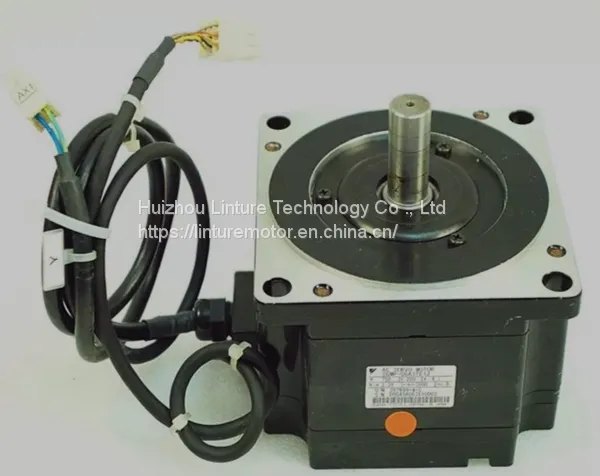

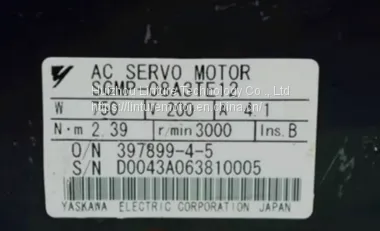

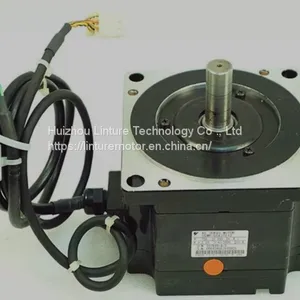

Industrial Electric Yaskawa 3000RPM AC Servo Motor 750W 200V SGMP-08A3TE12




Specifications

Brand Name Yaskawa
Model Number SGMP-08A3TE12
Place of Origin Japan
Power 750W
Volatage 200V
Current 4.1A
R/MIN 3000RPM
INS B







OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-


Notice
Observe proper electrostatic discharge (ESD) procedures when handling the drive. Failure to comply could result in ESD damage to the drive circuitry. It may be difficult to perform maintenance on the cooling fans of drives installed in a vertical row inside an enclosure. Ensure adequate spacing at the top of the drive to perform cooling fan replacement when required. Operating the motor in the low-speed range diminishes the cooling effects, increases motor temperature, and may lead to motor damage by overheating. Reduce the motor torque in the low-speed range whenever using a standard blower cooled motor. If 100% torque is required continuously at low speed, consider using a special drive or vector motor. Select a motor that is compatible with the required load torque and operating speed range. Do not operate motors above the maximum rated RPM. Failure to comply may lead to bearing or other mechanical motor failures. The speed range for continuous operation differs according to the lubrication method and motor manufacturer. If the motor is to be operated at a speed higher than the rated speed, consult with the manufacturer. Continuously operating an oil-lubricated motor in the low-speed range may result in burning.
Industrial Electric Yaskawa 3000RPM AC Servo Motor 750W 200V SGMP-08A3TE12 0
Environment Conditions
Installation Area Indoors
Ambient Temperature
-10 °C to +50 °C (IP20/Open-Chassis)
Drive reliability improves in environments without wide temperature fluctuations.
When using an enclosure panel, install a cooling fan or air conditioner in the area to ensure that the air temperature inside
the enclosure does not exceed the specified levels.
Do not allow ice to develop on the drive.
Humidity 95% RH or less and free of condensation
Storage Temperature -20 °C to +60 °C
Surrounding Area
Install the drive in an area free from:
• oil mist and dust
• metal shavings, oil, water or other foreign materials
• radioactive materials
• combustible materials (e.g., wood)
• harmful gases and liquids
• excessive vibration
• chlorides
• direct sunlight
Altitude Up to 1000 meters without derating; up to 3000 meters with output current, ambient temperature, and voltage derating.
Refer to Altitude Derating on page 186 for details.
Vibration 10 to 20 Hz at 9.8 m/s2
20 to 55 Hz at 5.9 m/s2
Orientation Install the drive vertically to maintain maximum cooling effects.
Industrial Electric Yaskawa 3000RPM AC Servo Motor 750W 200V SGMP-08A3TE12 1
Prevent foreign matter such as metal shavings or wire clippings from falling into the drive during installation and project construction. Failure to comply could result in damage to the drive. Place a temporary cover over the top of the drive during installation. Remove the temporary cover before startup, as the cover will reduce ventilation and cause the drive to overheat.
