Home > Electrical & Electronics > Electric Motor > DC Motor > MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder

MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder

Name: MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder
Brand: Panasonic
SKU: 170780219

MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder thumbnail-1

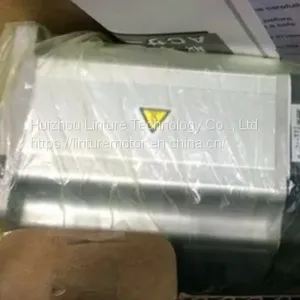

MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder thumbnail-2

MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder photo-1

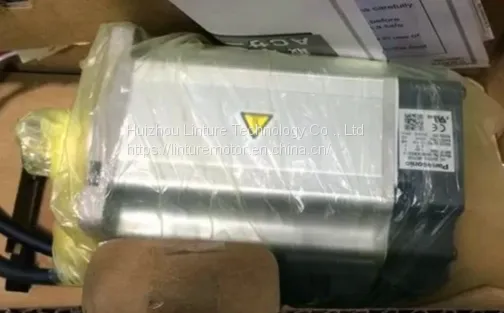

MHMD082G1U Panasonic Industrial Electronic With Incremental Encoder photo-2

US$ 1 - 1000000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

Panasonic

Place of Origin:

Japan

Model Number:

MHMD082G1U

Contact Supplier Request Quote Chat Now

Huizhou Linchuang Technology Co ., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Bao'an international airport

Delivery Detail:

5 days

Product Details
Company Profile
Contact Us

Brand Name Panasonic

Place of Origin Japan

Model Number MHMD082G1U

Type Servo Motor

Certification CE

Usage Other, universal

Construction Permanent Magnet

Efficiency IE 3

Protect Feature Explosion-proof

Voltage(V) 200V

Output Power 750A

Continuous Current(A) 2.4A

Speed(RPM) 3000R/MIN

Commutation Brushless

Brand:	Panasonnic	Model:	MHMD082G1U
Place Of Origin:	Japan	Type:	AC SERVO MOTOR
Power:	750W	Weight:	5.5 Lb
High Light:	ac servo motor,electric servo motor

PANASONIC Servo Motor 750W 20 Bit Incremental Encoder 200V Motor MHMD082G1U

Servo; A5; 750W; 20 Bit Incremental Encoder; 200V Motor; Key & Tap Shaft (OS)
Allied Electronics & Automation
A5 - 750W 20 Bit Incremental Encoder, 200V Motor, Key & Tap Shaft (Oil Seal)
Newark
SERVOMOTOR 3000 RPM 200VAC

Technical Specifications

Physical

Weight 5.5 lb

Technical

Encoder Type Incremental

Max Operating Temperature 40 °C

Min Operating Temperature 0 °C

Power Rating 750 W

RPM 3000 RPM

Termination Wire Leads

Dimensions

Mounting Hole Spacing 3.543 inch

Compliance

Approvals UL , CSA , CE , TUV

RoHS Compliant

Part Status Active

Type AC Motor

Function Servomotor

Motor Type -

Voltage - Rated 200VAC

RPM 3000 RPM

Torque - Rated (oz-in / mNm) 339.9 / 2400

Power - Rated 750W

Encoder Type Incremental

Size / Dimension Square - 3.150" x 3.150" (80.00mm x 80.00mm)

Diameter - Shaft 0.748" (19.00mm)

Length - Shaft and Bearing 1.378" (35.00mm)

Mounting Hole Spacing 3.543" (90.00mm)

Termination Style Wire Leads

Features Key, Oil Seal

Gear Reduction Ratio -

Torque - Max Momentary (oz-in / mNm) 1005 / 7100

Operating Temperature 0°C ~ 40°C

Approvals CE, CSA, cULus, TUV, UL

Weight 5.5 lbs (2.5kg)

3-Step gain
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.

Inertia ratio conversion
You can adjust right inertia ratio by Inertia ratio conversion input (J-SEL) of interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up quicker response of your system.

Input/output signal assignment
You can use the parameters to arbitrarily allocate the universal 10 inputs and 6 outputs. (Inputs can be selected as either A contacts or B contacts). The Panaterm setup software provides an exclusive screen for a more simplified setup.

Torque limiter switching
These can be used for applications such as simplified pressure, tension control, and sensor-less homing.
