Product Description

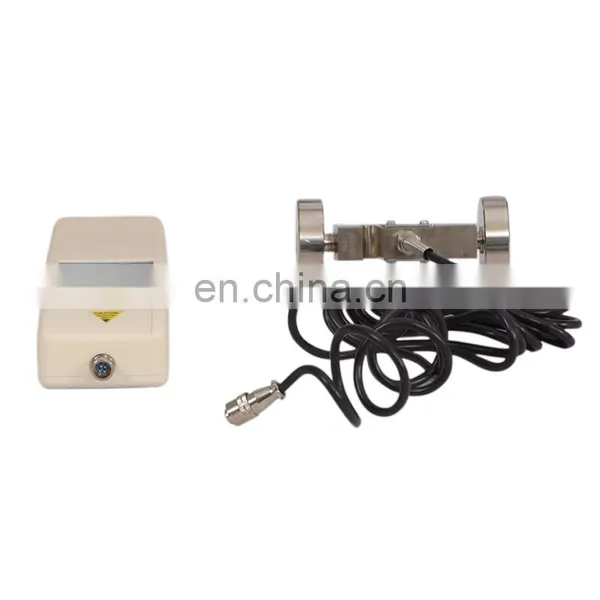

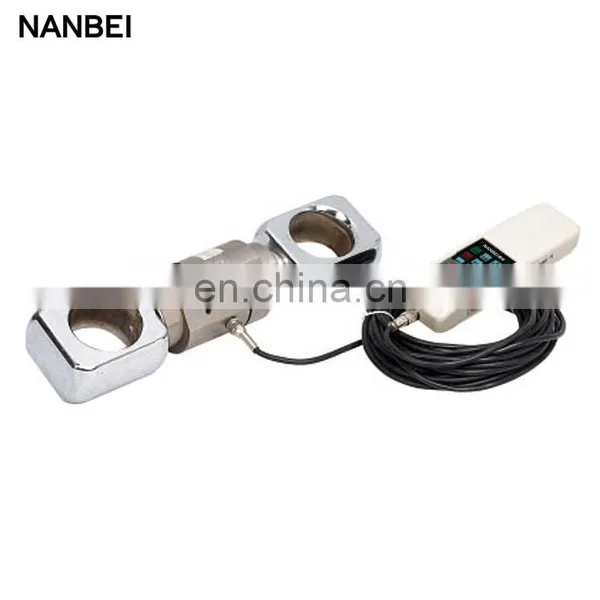

10KN mechanical digital belt wire rope tension meter force gauge
The digital belt wire rope tension meter is digital force gauge with compact size, high accuracy. They are easy to operate and handy to carry out. Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
This force gauge digital dynamometer is new generation pulls the pressure measuring instrument.
Features
1.Connect the computer in-phase test. 2.The compare value set by user’s request. 3.Big memory deposit function.  4.LCD overturns show. 5.Auto peak. 6.Auto close time set.
More Details Photos
Recommendations
Send An Inquriy To Get The Latest Price
Specification
Model
specification
NF-5
NF-10
NF-20
NF-50
NF-100
NF-200
NF-500
NF-1000
Peak load
value
N
5
10
20
50
100
200
500
1000
kg
0.5
1
2
5
10
20
50
100
lbs
1.1
2.2
4.5
11
22
45
110
220
load division
value
N
0.001
0.01
0.01
0.01
0.1
0.1
0.1
1
kg
0.0001
0.001
0.001
0.001
0.01
0.01
0.01
0.1
lbs
0.0001
0.001
0.001
0.001
0.01
0.01
0.01
0.1
Indication error
0.50%
Unit
N / kg / lb
Data interface
Rs232 nine-hole socket
Power
rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure
S-tye sensor with high precision (inner sensor)
Ambient temp.
5° C~35° C
Transport temp.
-10 C~60° C
Relative humidity
15%~80%RH
Working conditions
No hypocenter and corrosive medium
Gross weight
~2000g
Size
273 x 182 x70 mm
Model
NF-2000
NF-5000
NF-10K
NF-20K
NF-50K
NF-100K
NF-200K
NF-500K
NF-1000K
Peak
load
value
2000N
5000N
10KN
20KN
50KN
100KN
200KN
500KN
1000KN
load
division
value
1N
1N
0.01KN
0.01KN
0.01KN
0.1KN
0.1KN
0.1KN
1KN
0.1kg
0.1kg
0.001kg
0.001kg
0.001kg
0.01kg
0.01kg
0.01kg
0.1kg
0.1lbs
0.1lbs
0.001Klbs
0.001Klbs
0.001Klbs
0.01Klbs
0.01Klbs
0.01Klbs
0.1Klbs
Indication
error
±1%
±1%
±1%
Unit
N / (KN), kg / (Mg or t), lb (KIb)
Data interface
Rs232 nine-hole socket
Power
rechargeable batteries, charger(charging voltage 100V-240V)
Sensor
structure
S-tye or column sensor with high precision (external sensor)
Ambient temp
5° C~35° C
Transport temp
-10° C~60° C
Relative
humidity
15%~80%RH
Working
conditions
No hypocenter and corrosive medium
Gross weight
6kg/9kg/24kg/36kg
Size
280 x 200 x 170 mm
