Home > Electrical & Electronics > Electric Motor > DC Motor > MHMD042P1U Panasonic Automation 200v Servo Motor Encoder Type

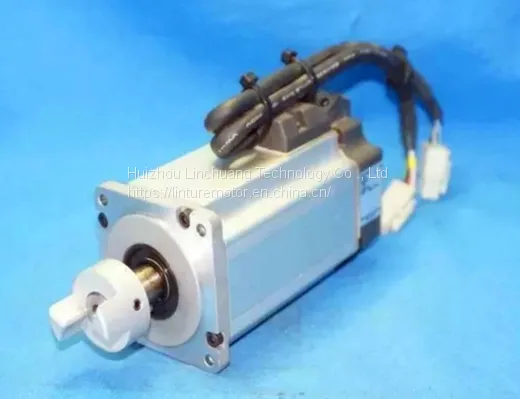

MHMD042P1U Panasonic Automation 200v Servo Motor Encoder Type
US$ 1 - 1000000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MHMD042P1U
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
7 days
Related Products
-
MUMA012P1S Panasonic Ac Servo Motor Import Product MINAS E SeriesUS$ 1 - 1000000MOQ: 1 Unit -
MSMF5AZL1U2M Import Electronic Industrial Motor 200V Rated VoltageUS$ 1 - 1000000MOQ: 1 Unit
-
MSMD022P1V Panasonic Industria Motor Position Command On/Off OutputUS$ 1 - 1000000MOQ: 1 Unit
-
MSMA5AZA1C Panasonic Motor Moudel Zero Speed Detection OutputUS$ 1 - 1000000MOQ: 1 Unit
-
MSMA012C1A Panasonic Servo Controller Deviation Counter Clear InputUS$ 1 - 1000000MOQ: 1 Unit
Brand Name
Panasonic
Place of Origin
Japan
Model Number
MHMD042P1U
Type
Servo Motor
Certification
CCC, CE
Usage
Other, universal
Construction
Permanent Magnet
Efficiency
IE 3
Protect Feature
Explosion-proof
Voltage(V)
200V
Output Power
0.2KW
Continuous Current(A)
1.3A
Speed(RPM)
3000R/MIN
Commutation
Brushless
| Brand: | Panasonnic | Model: | MHMD042P1U |
|---|---|---|---|
| Place Of Origin: | Japan | Type: | AC SERVO MOTOR |
| Voltage - Rated: | 200VAC | RPM: | 3000 RPM |
| High Light: | ewing machine servo motor,electric servo motor | ||
Categories Motors, Solenoids, Driver Boards/Modules
Motors - AC, DC
Manufacturer Panasonic Industrial Automation Sales
Series MINAS A4
Part Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 200VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 184.1 / 1300
Power - Rated 400W
Encoder Type Incremental
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.551" (14.00mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Wire Leads
Features Key, Oil Seal
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 538.1 / 3800
Operating Temperature 0°C ~ 40°C
Approvals CE, CSA, cULus, TUV, UL
Weight 3.1 lbs (1.4kg)
