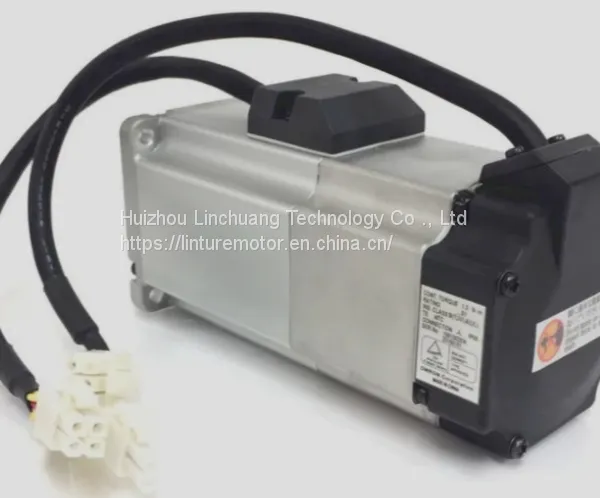

R88G-HPG20A45100PB OMRON 100W Power Motor Totally Closed Loop Servo

R88G-HPG20A45100PB OMRON 100W Power Motor Totally Closed Loop Servo thumbnail-1
R88G-HPG20A45100PB OMRON 100W Power Motor Totally Closed Loop Servo photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
OMRON
Place of Origin:
Japan
Model Number:
R88G-HPG20A45100PB
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMRON
Place of Origin Japan
Model Number R88G-HPG20A45100PB
Brand: OMRON Model: R88G-HPG20A45100PB
Origin: China Voltage: 100V
Power: 100W Frequency: 3000rpm
High Light: ewing machine servo motor,electric servo motor


R88G-HPG20A45100PB Decelerator For 100W Flat Servomotors Backlash Within 3 Minutes Deceleration Ratio 1/45
Decelerators for 3,000-r/min Flat Servomotors


Model
(R88G-)		 Rated
ro-
tation
speed		 Rated
torque		 Effi-
cien-
cy		 Maxi-
mum
mo-
mentary
rotation
speed		 Maxi-
mum
mo-
men-
tary
torque		 De-
celerator
inertia		 Al-
low-
able
radial
load		 Al-
low-
able
thrust
load		 Weight
r/min N·m % r/min N·m kg·m2 N N kg
100
W		 1/5 HPG11B05100PB 600 1.28 80 1000 3.44
(3.36)		 5.00 × 10-7 135 538 0.34
1/11 HPG14A11100PB 273 2.63 75 454 7.06
(6.89)		 6.00 × 10-6 280 1119 1.04
1/21 HPG14A21100PB 143 5.40 80 238 14.5
(14.2)		 5.00 × 10-6 340 1358 1.04
1/33 HPG20A33100PB 91 6.91 65 151 18.6
(18.1)		 4.50 × 10-5 916 3226 2.9
1/45 HPG20A45100PB 67 9.42 65 111 25.3
(24.7)		 4.50 × 10-5 1006 3541 2.9
200
W		 1/5 HPG14A05200PB 600 2.49 78 1000 7.01 2.07 × 10-5 221 883 0.99
1/11 HPG20A11200PB 273 4.75 68 454 13.4 5.80 × 10-5 659 2320 3.1
1/21 HPG20A21200PB 143 10.2 76 238 28.8 4.90 × 10-5 800 2817 3.1
1/33 HPG20A33200PB 91 17.0 81 151 47.9 4.50 × 10-5 916 3226 3.1
1/45 HPG20A45200PB 67 23.2 81 111 65.4 4.50 × 10-5 1006 3541 3.1
400
W		 1/5 HPG20A05400PB 600 4.67 72 1000
(900)		 13.1
(12.9)		 7.10 × 10-5 520 1832 3.1
1/11 HPG20A11400PB 273 11.7 82 454
(409)		 32.9
(32.4)		 5.80 × 10-5 659 2320 3.1
1/21 HPG20A21400PB 143 23.5 86 238
(214)		 66.2
(65.2)		 4.90 × 10-5 800 2817 3.1
1/33 HPG32A33400PB 91 34.7 81 151
(136)		 97.6
(96.2)		 2.80 × 10-4 1565 6240 7.8
1/45 HPG32A45400PB 67 47.4 81 111
(100)		 133.0
(131.2)		 2.80 × 10-4 1718 6848 7.8



Note: 1. The values inside parentheses ( ) are for 100-V Servomotors.
Note: 2. The Decelerator inertia is the Servomotor shaft conversion value.
Note: 3. The protective structure for Servomotors with Decelerators satisfies IP44.
Note: 4. The allowable radial load is the value at the T/2 position.
Note: 5. The standard models have a straight shaft. Models with a key and tap are indicated by adding "J" to the end of
the model number (the suffix in the box).
