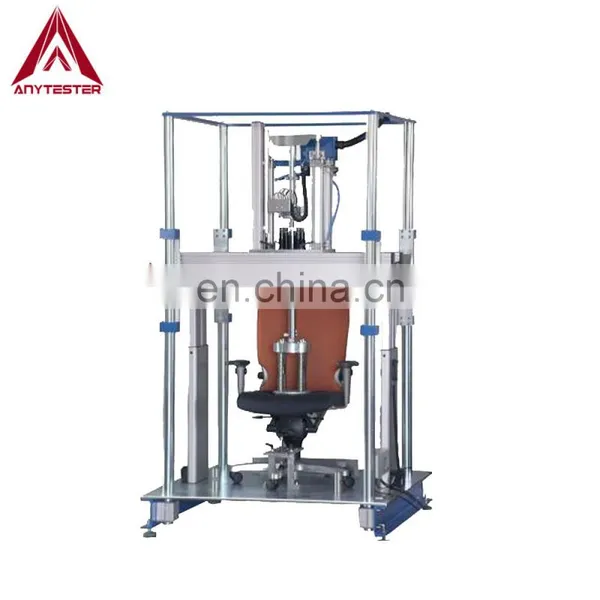

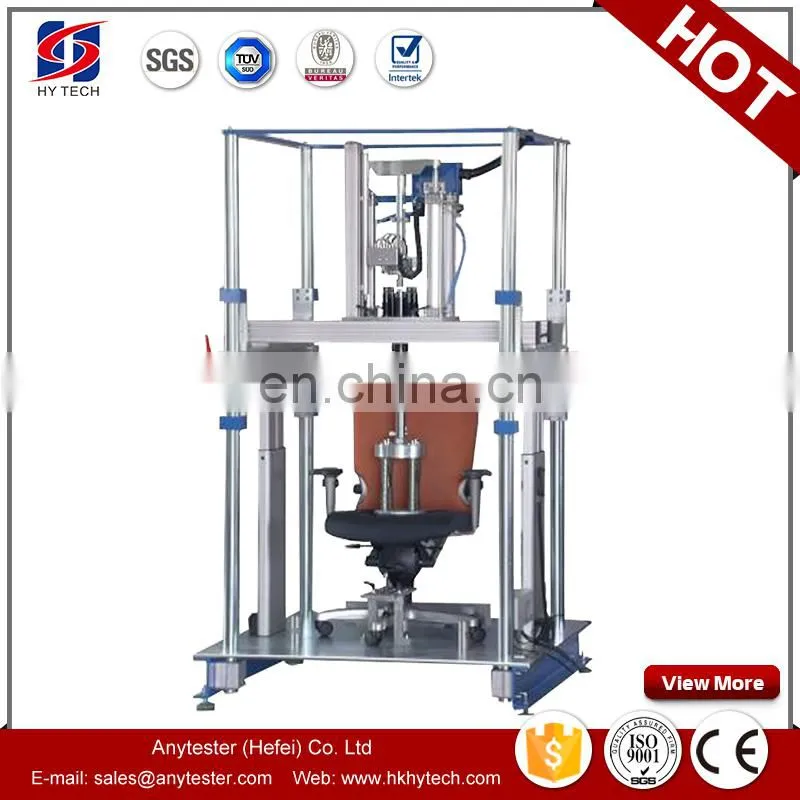

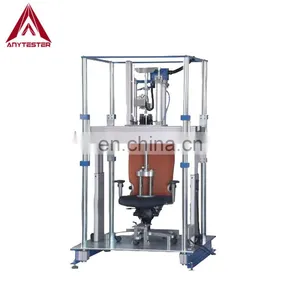

HY5024 Office Chair Seat Surface Impact Tester is used to evaluate the ability of a chair to withstand heavy impact forces on the seat.
|
QB/T2280 |
BIFMA X5.1 |
DIN 4551 |
|
EN 1335, 581-2 |
NEN 1812 |
BSI/BS 5459 |
Note: this Office Chair Seat Surface Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
1. Aluminum alloy framework, more durable and nice
2. steel plate floor, it is more stable
3. Beam electric hoist, adapt to different height of seat, convenient save labor
|
Model |
HY5024 Office Chair Seat Surface Impact Tester |
|
Impact head component weight |
25 kg |
|
Impact height |
Max. 300 mm |
|
Seat surface height |
30-65 cm |
|
Loading times |
0 ~ 99999 times can be set |
|
A strength to adjust |
air pressure adjustment |
|
Motor control |
PLC control, text display |
|
Beam elevation ways |
electric hoist |
|
Source |
6 KGF/cm ^ 2 or more stable gas source, 800 l/min |
|
Power supply |
30 AC 50 hz, 220 v 5 a |
|
Sandbag |
diameter:400 mm, weight: 57 kg |
|
Impact height |
25 mm |
|
Impact bags and distance between the back of the chair |
13 mm or less |
|
The test speed |
10 ~ 30 times/min |
|
Test times |
100000 times |
|
Cylinder |
cylinder diameter 63 mm, 100 mm |
