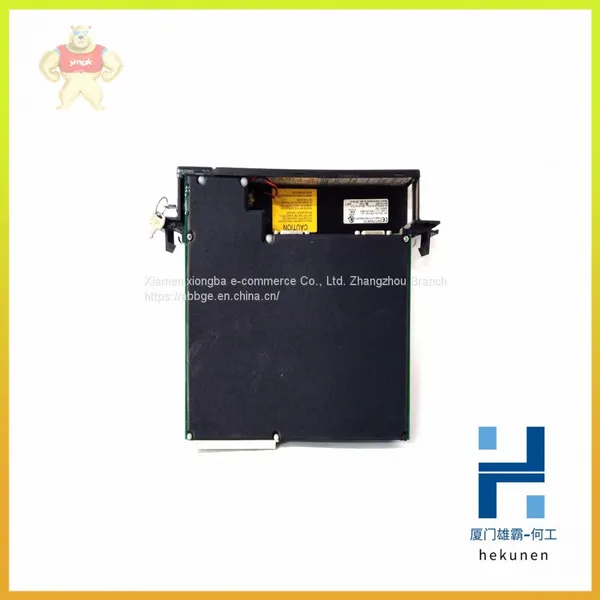

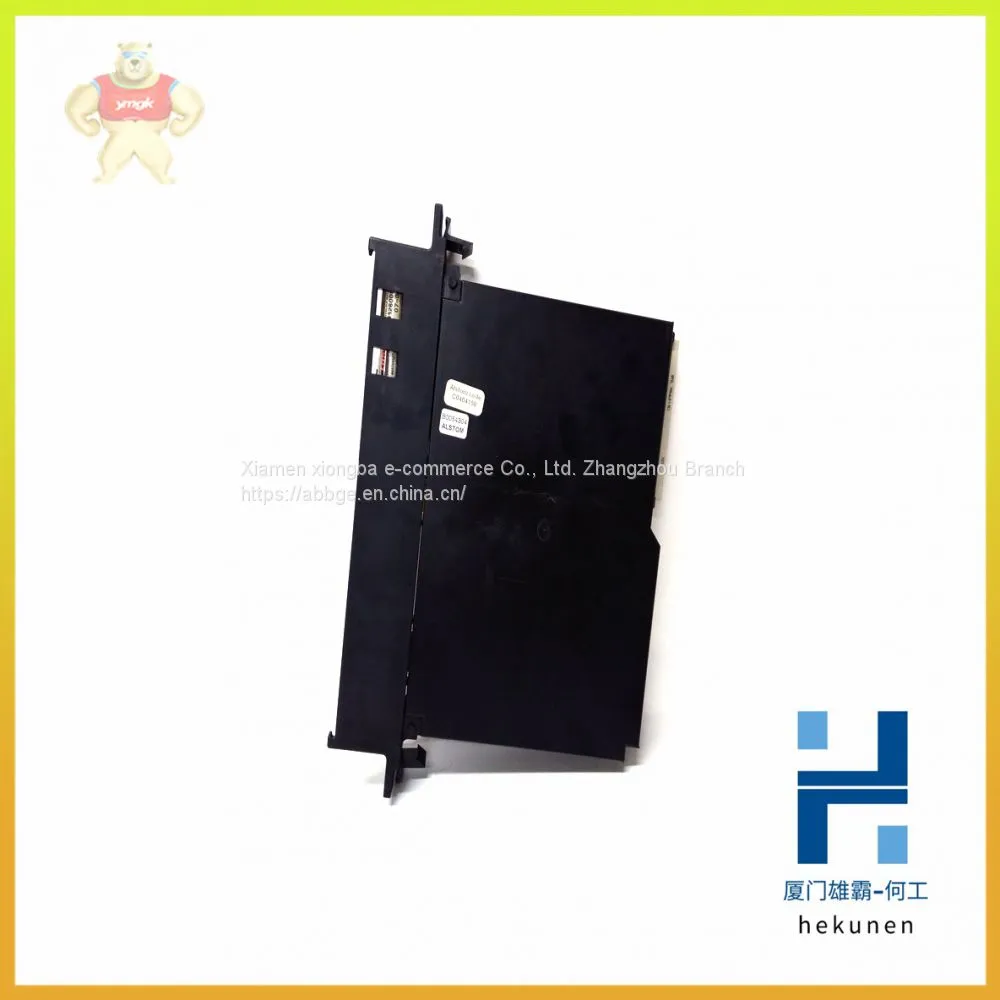

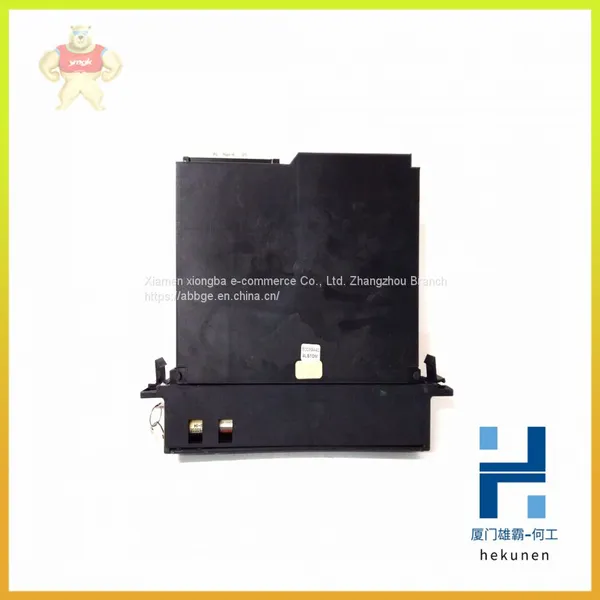

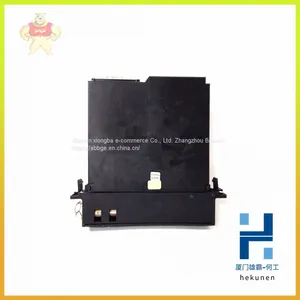

IC697CMM742 GE Mixed output card of Ethernet communication module
IC697CMM742 GE Mixed output card of Ethernet communication module
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
Features
Connects IC697 PLC to an IEEE 802.3 CSMA/CD
10Mbps Ethernet LAN via one of three network
ports: 10BaseT, 10Base2, or AUI
10BaseT and 10Base2 network ports provide direct
connection to 10BaseT or 10Base2 network without an external transceiver
Standard 15-pin AUI network port allows choice
of 10Base5, 10Base2, 10BaseT, 10BaseF, or
10Broad36 medium with user-supplied 802.3-compatible transceiver
Firmware is pre-loaded for easy installation and is
maintained indefinitely; firmware is easily upgraded
in-system from PC attached to RS-485 serial port
The Ethernet Interface provides:
Data exchange using configuration-based and
logic-based Ethernet Global Data
TCP/IP communication services using SRTP
Full PLC programming and configuration services
Comprehensive station management and
diagnostic tools
Functions
The IC697CMM742 Ethernet Interface (Type 2)
provides high performance TCP/IP communications for
the IC697 PLC.
The Ethernet Interface (Type 2) plugs into a single slot
in an IC697 PLC rack and is configured with the IC641
PLC programming software. Up to four Ethernet
Interface (Type 2) modules can be installed in an IC697
PLC CPU rack.
The Ethernet Interface (Type 2) contains three network
ports: 10BaseT (RJ-45 connector), 10Base2 (BNC
connector), and AUI (15-pin D-connector). The
Ethernet Interface automatically selects the network
port in use. One network port may be used at a time.
The 10BaseT network port permits direct connection to
a 10BaseT (twisted pair) network hub or repeater
without an external transceiver.
The 10Base2 network port permits direct connection to
a 10Base2 (ThinWire) network without an external
transceiver.
The AUI network port permits attachment of a usersupplied AUI (Attachment Unit Interface, or transceiver)
cable.
