Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter

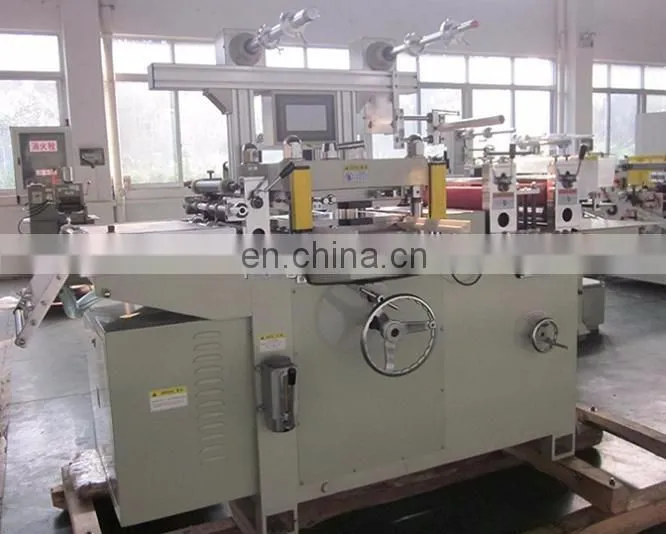

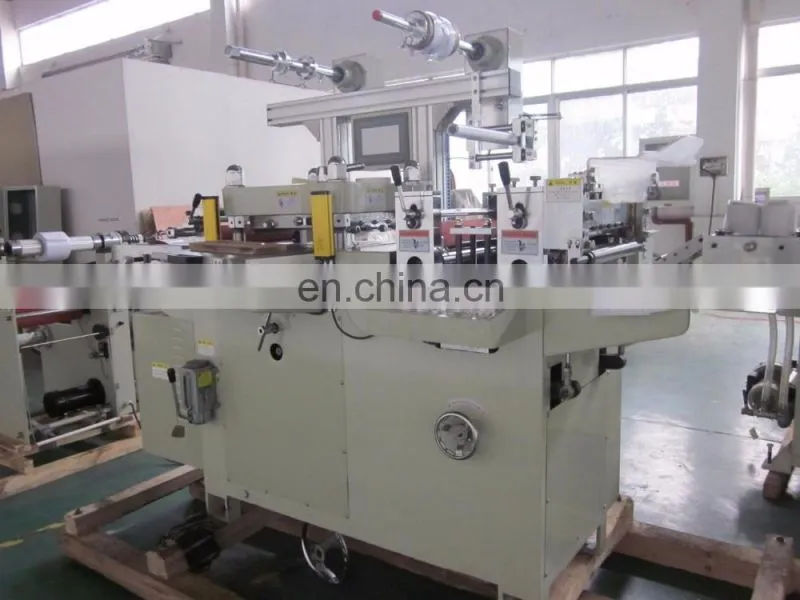

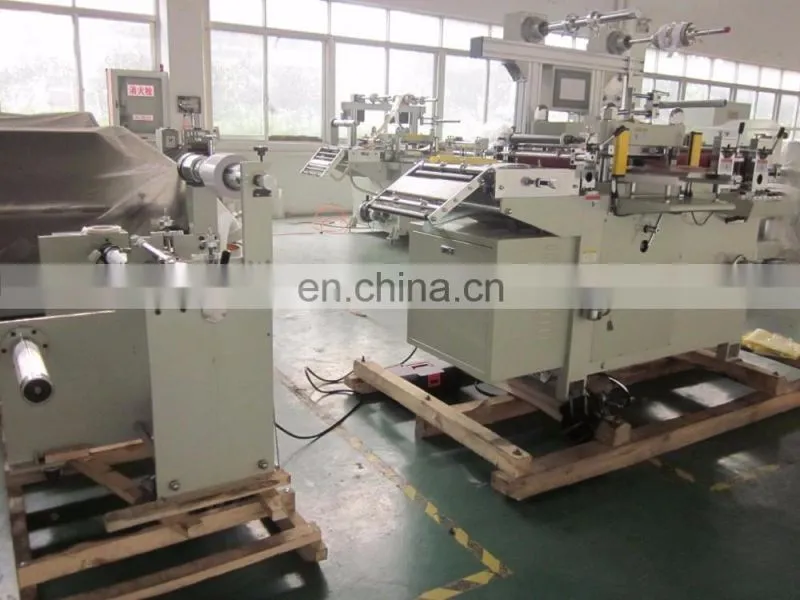

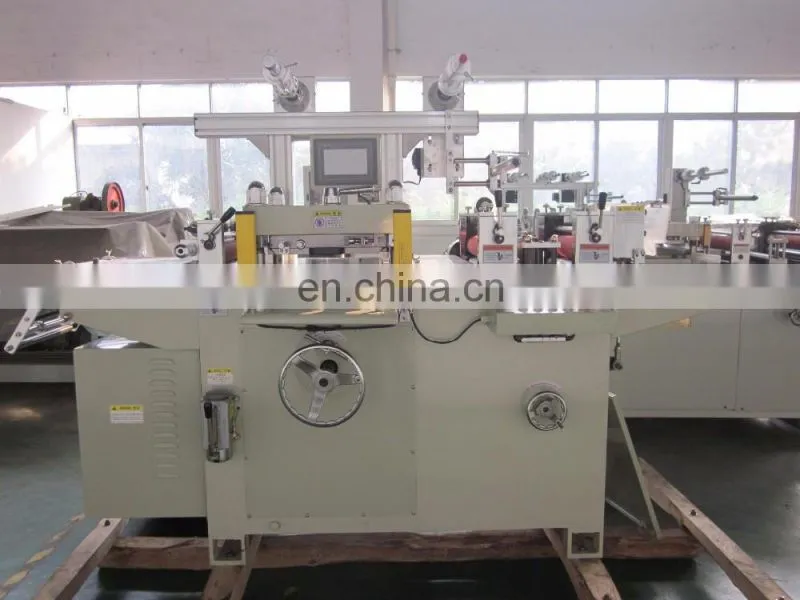

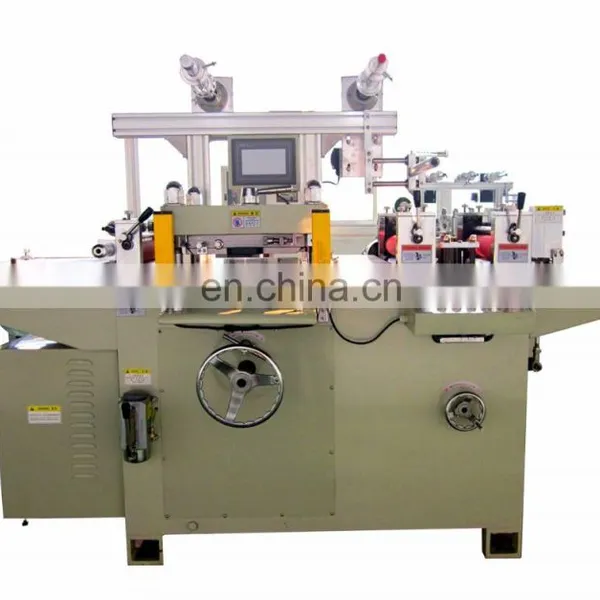

Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter photo-1

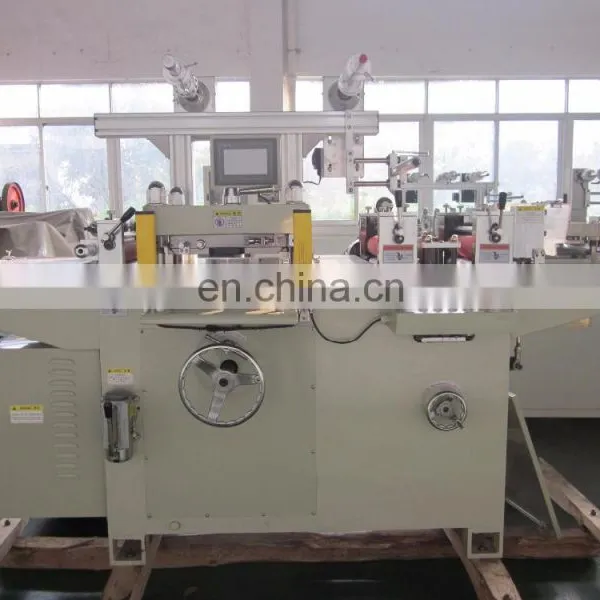

Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter photo-2

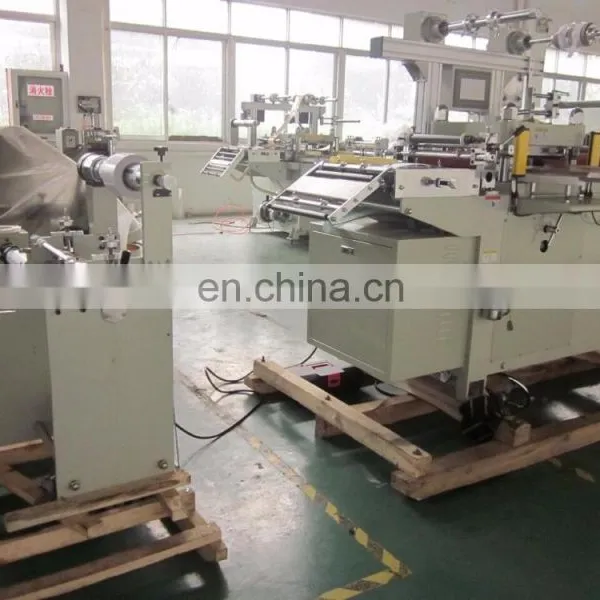

Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter photo-3
Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter photo-4
Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter



Functional characterisics:

This machine is suitable for all kinds of roll material die cutting.It with independent unwinding machine and rewinding machine.With automatic computer control and servo motor control, servo motor pulling and pushing material, more precise of unwinding.It with touch screen operation to set the die cutting datas ,and with hand operation switches also , easy operation.The soft rubber roller and polished Aluminum guiding roller not scratch the materials .



Standard function:

Unwinding ------ air suction -------- die cutting (kiss cut )---- waste scrap rewind ---------- roll rewind or sheet cut



Optional functions:

1. Hot stamping
2. Punching
3. Laminating
4. Adding conveyor belt
5. Full-cut for die cutting



Scope applicable:

On a variety of electronic appliances special pads, silicone paste, hook and loop ,

conductive plastic, strong double-sided adhesive, 3M,
Sony special stickers, backlit screen, and other electronics industry, IT industry membrane switch,
Automotive manufacturing used in the stickers products. aluminum foil, copper foil, PVC, PET, kraft paper, sponge jacket, pearl sheathed etc



Main Parameters:

Model DP-320B DP-420B
Max Feeding Width ( mm ) 320 420
Cutting Area ( mm ) 320*300 420*400
Cutting Speed ( T/M) 30-170 30-170
Position Accuracy ( mm ) ±0.1 ±0.1
Power of Main Engine ( kw ) 2.2 3
Size ( mm ) 2300*1250*1500 2400*1290*1610
Voltage (V ) 380 380





Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die CutterAutomatic Roll to Roll Label/Tradmark Die Cutting Machine/Die CutterAutomatic Roll to Roll Label/Tradmark Die Cutting Machine/Die CutterAutomatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter



Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter

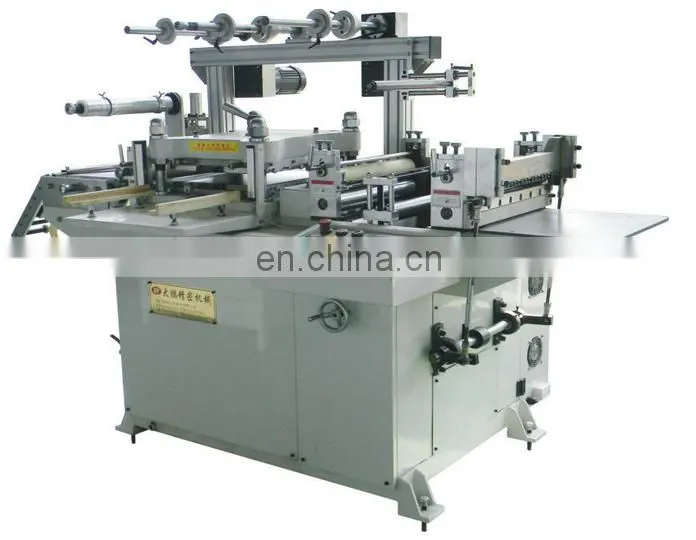

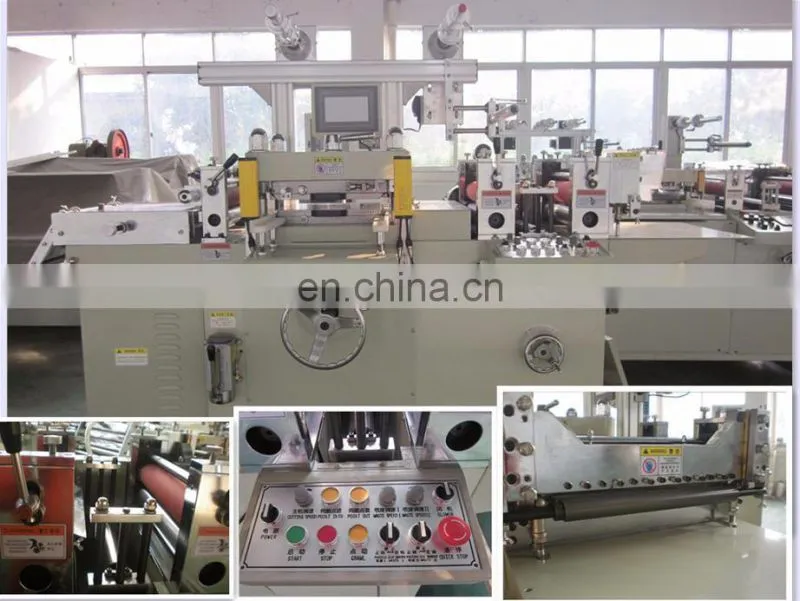

Other more function can be get as below:





Automatic Roll to Roll Label/Tradmark Die Cutting Machine/Die Cutter
