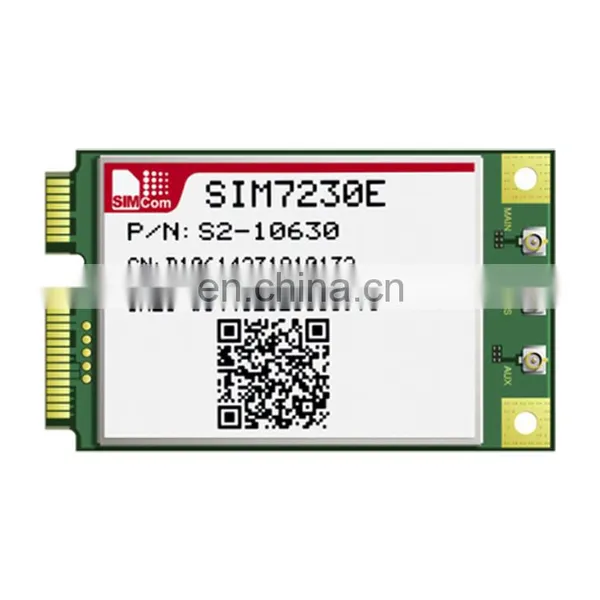

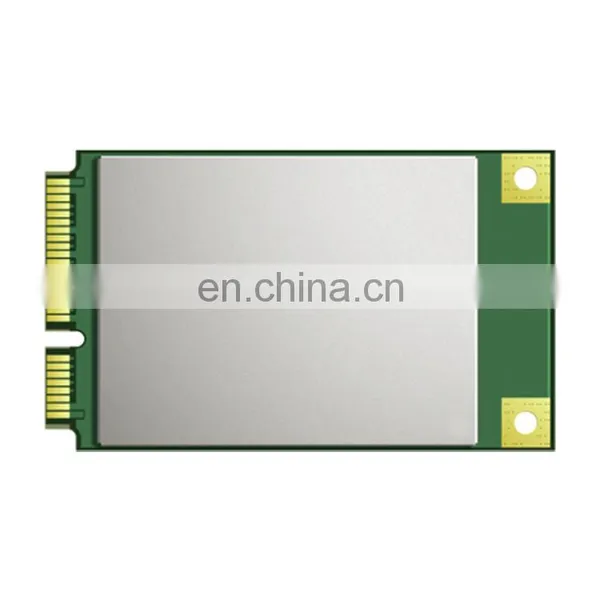

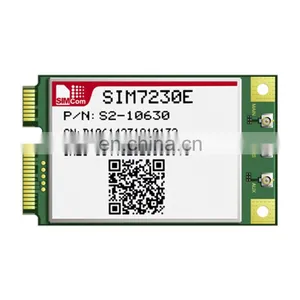

SIMCOM SIM7230E 4G LTE Cellular Module Evaluation Development Board SIM7230E PCIe
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM7100E LTE Module, 4G Module Cat.3, Mini PCIe Form FactorNegotiableMOQ: 1 -
SIMCom 4G Module, SIM7100ENegotiableMOQ: 1
-
Lower Cost 4G Cat1 SIM7500E Multi-band LTE-FDD/EDGE/GSM/GPS/GNSS Module With LGA/Mini-PCIE InterfaceNegotiableMOQ: 1
-
Multi-Band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LTE CAT4 Mini PCIE SIM7600A-HNegotiableMOQ: 1
-
SIM7500E-H-PCIE Multi-band Module (SIM7500X: SIM7500E SIM7500SA/SIM7500A/SIM7500V/SIM7500JE/SIM7500JC/SIM7500SA)NegotiableMOQ: 1
Description
SIMCom presents an ultra compact and reliable wireless module SIM7230E which is based on Qualcomm MDM9225 multiplemode LTE platform. SIM7230E is a complete multi-band LTE/ HSPA+/ HSPA/ UMTS/ EGDE/ GPRS/ GSM/ GNSS PCIE module designed with very powerful
processors integrating application core:ARMv7 Cortex? A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex- M3 core, allowing customer to benefit from small dimensions and cost-effective product solutions.
Featuring an industry-standard PCI Express Mini Card standard with a USB 2.0 interface, the SIM7230E delivers GSM/ GPRS/ EDGE/ WCDMA/ LTE-FDD performance for Data Transmission with low power consumption in high-speed Download and upload.
General features
-Five-Band LTE-FDD 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7) MHz
-Tri-Band UMTS/HSDPA/HSPA+ 900(B8)/1800(B3)/2100(B1) MHz Dual-Band GSM/GPRS/EDGE 900/1800 MHz
-GPRS multi-slot class 12
-EDGE multi-slot class 12
-Output power
UMTS 900/2100: 0.25W
GSM900: 2W
DCS1800: 1W
-Control Via AT Commands or Gobi API
-Supply voltage range: 3.3V
-Operation temperature: -40℃ to +80℃
-Dimension: 51*30*4.55mm
-Weight: TBD
-LTE FDD/Rel-9 Cat4/Rel-10 Cat4
-UTMS,
-HSPA+ DC-HSPA+,Rel-10 HSPA+ including DCHSPA+MIMO and DCHSUPA
-GSM GSM R99,GPRS,EDGE
- GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
•LTE
- Uplink up to 50Mbps,
- Downlink up to 150Mbps
•HSPA+
- Uplink up to 11 Mbps,
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
•CSD
Other features
-USB Driver for Microsoft Windows 2000/XP/Vista
-USB Driver for Win7/Win8
-USB Driver for Windows CE/Mobile
-USB Driver for Linux 2.6/Android
-USB Driver for MAC
-RIL supporting for Android/Windows CE/Mobile
-Automatic installation
-Linux API SDK
-Firmware update via USB
-TCP/IP/IPV4/V6 Multi-PDP,MT PDP
-FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
-eCall Ready
-Jamming detection support
-Gobi SDK to the Win7/Win8/Linux
-Source code of the PC manager of the device for reference
Interfaces
-PCI Express Mini Card
-USB 2.0
Certifications
-CE(TBD)
-ROHS(TBD)
-REACH(TBD)
-GCF(TBD)
processors integrating application core:ARMv7 Cortex? A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex- M3 core, allowing customer to benefit from small dimensions and cost-effective product solutions.
Featuring an industry-standard PCI Express Mini Card standard with a USB 2.0 interface, the SIM7230E delivers GSM/ GPRS/ EDGE/ WCDMA/ LTE-FDD performance for Data Transmission with low power consumption in high-speed Download and upload.
General features
-Five-Band LTE-FDD 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7) MHz
-Tri-Band UMTS/HSDPA/HSPA+ 900(B8)/1800(B3)/2100(B1) MHz Dual-Band GSM/GPRS/EDGE 900/1800 MHz
-GPRS multi-slot class 12
-EDGE multi-slot class 12
-Output power
UMTS 900/2100: 0.25W
GSM900: 2W
DCS1800: 1W
-Control Via AT Commands or Gobi API
-Supply voltage range: 3.3V
-Operation temperature: -40℃ to +80℃
-Dimension: 51*30*4.55mm
-Weight: TBD
-LTE FDD/Rel-9 Cat4/Rel-10 Cat4
-UTMS,
-HSPA+ DC-HSPA+,Rel-10 HSPA+ including DCHSPA+MIMO and DCHSUPA
-GSM GSM R99,GPRS,EDGE
- GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
•LTE
- Uplink up to 50Mbps,
- Downlink up to 150Mbps
•HSPA+
- Uplink up to 11 Mbps,
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
•CSD
Other features
-USB Driver for Microsoft Windows 2000/XP/Vista
-USB Driver for Win7/Win8
-USB Driver for Windows CE/Mobile
-USB Driver for Linux 2.6/Android
-USB Driver for MAC
-RIL supporting for Android/Windows CE/Mobile
-Automatic installation
-Linux API SDK
-Firmware update via USB
-TCP/IP/IPV4/V6 Multi-PDP,MT PDP
-FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
-eCall Ready
-Jamming detection support
-Gobi SDK to the Win7/Win8/Linux
-Source code of the PC manager of the device for reference
Interfaces
-PCI Express Mini Card
-USB 2.0
Certifications
-CE(TBD)
-ROHS(TBD)
-REACH(TBD)
-GCF(TBD)
