SIM800H SIMCOM GSM / GPRS Module Support BT FM Embedded AT
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GSM/GPRS Wireless Module SIM800C, New & Original in Stock SIMCOM SIM800CNegotiableMOQ: 1 -
SIMCOM SIM800H GPRS GSM Module Which Can Transmit Voice, SMS and Data Information With Low Power ConsumptionNegotiableMOQ: 1
-
SIMCOM SIM868 GSM GPS 2G Module, GPRS/GSM+GNSS Module SIM868 2G ModuleNegotiableMOQ: 1
-
SIMCOM SIM800C GSM GPRS ModuleNegotiableMOQ: 1
-
SIM800C The Smallest and Cheapest SIMCOM GSM GPRS ModuleNegotiableMOQ: 1
Description
GSM/GPRS Module

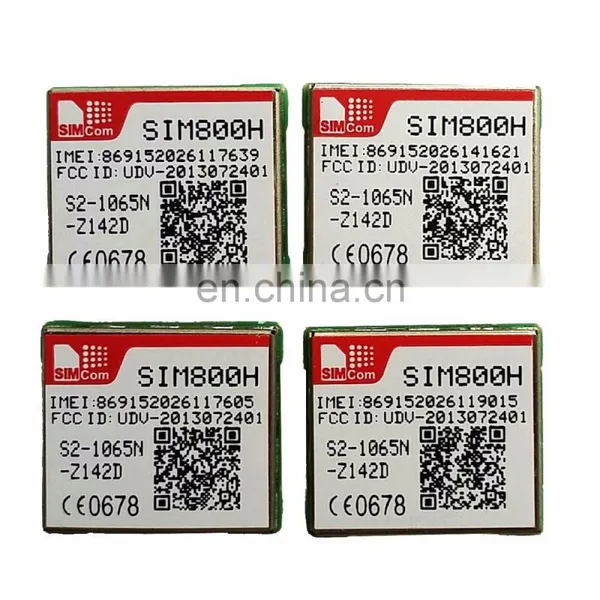

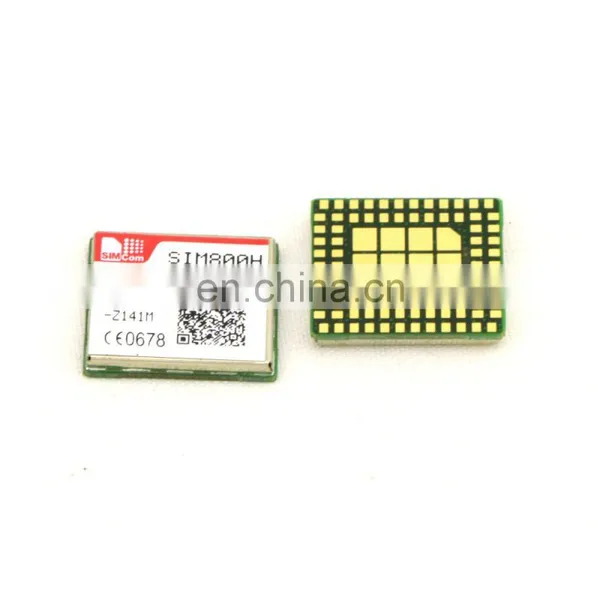

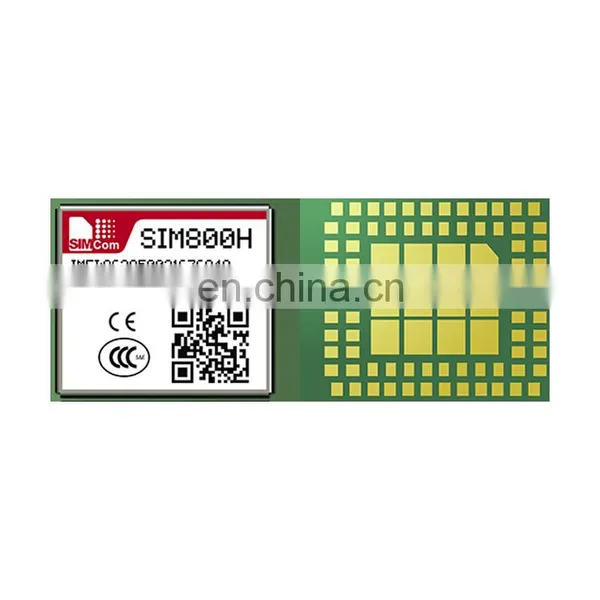

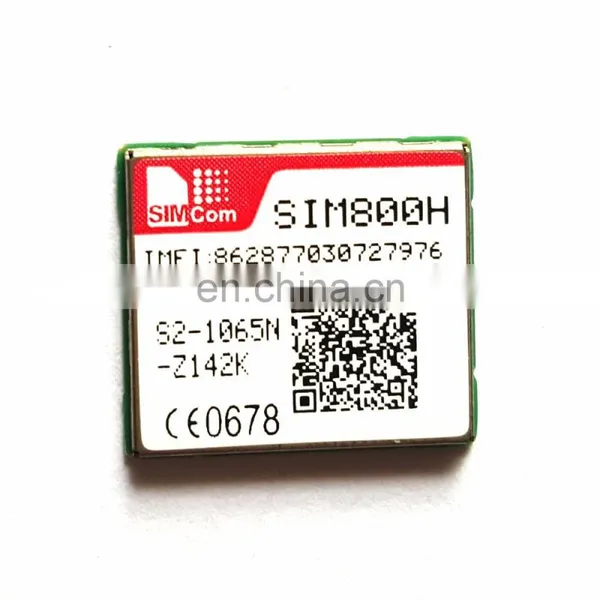

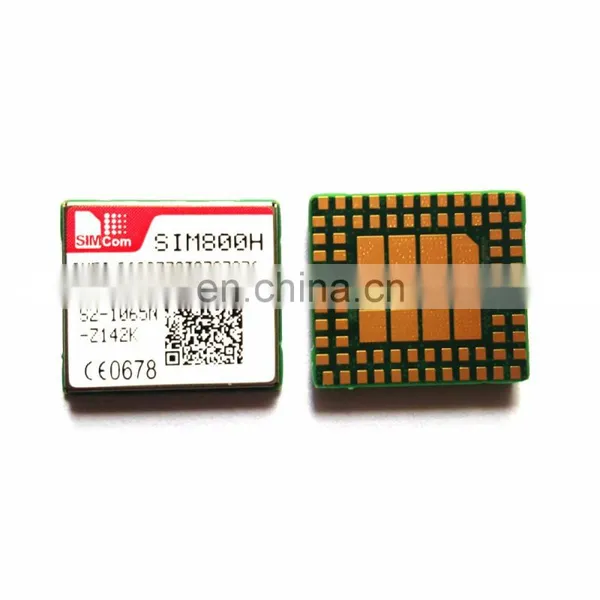

• SIM800H is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer applications.
• SIM800H support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design.
• Featuring Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS
•Embedded AT (optional)
Specifications for voice
•Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•Hands-free operation
（Echo suppression）
Interfaces
88 LGA pads including:
•Analog audio interface
•PCM interface
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•FM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command interface
Certifications(Plan)
•CE
•GCF
•FCC
•ROHS
•REACH
