Home > Chemicals > Fiberglass Products > Other Fiberglass Products > Molded Fiberglass Reinforced Plastic (FRP) Square Mesh Molded Grating

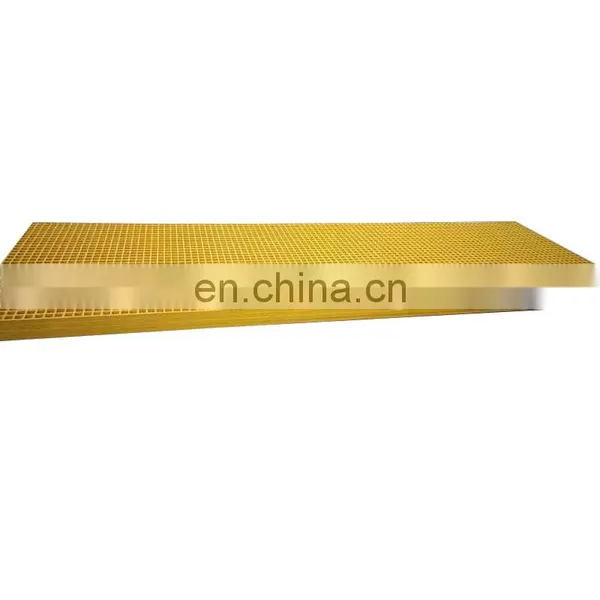

Molded Fiberglass Reinforced Plastic (FRP) Square Mesh Molded Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Used Electrician FRP 3-9 Steps Industrial Platform Fiberglass FRP Step Ladders & Handrail SystemsNegotiableMOQ: 1 -
FRP Fiberglass Beams Channels Angles Tubing Flat Sheet Structural Shapes FabricationNegotiableMOQ: 1
-
High Strength Surface Drainage Frp Pultrusion Pultruded Frp Grating/PaltformNegotiableMOQ: 1
-
Mold Fiberglass Reinforced Plastic Frp Grating for Walking WayNegotiableMOQ: 1
-
High Quality Fiberglass Pultruded Pipe FRP GRP Profiles FRP Pultrusion TubeNegotiableMOQ: 1
Product Details
Molded Fiberglass Reinforced Plastic (FRP) Square Mesh Molded Grating
Molded Square Mesh Grating
Our most popular FRP product, molded square mesh grating is available in 1”, 1-1/2”, and 2” depths. The 1” and 1-1/2” deep
products are produced with a 1-1/2” square mesh while the 2” deep products are produced with a 2” square mesh. The square pattern of the panels provides bi-directional strength and facilitates easy layout and fabrication.
Our most popular FRP product, molded square mesh grating is available in 1”, 1-1/2”, and 2” depths. The 1” and 1-1/2” deep
products are produced with a 1-1/2” square mesh while the 2” deep products are produced with a 2” square mesh. The square pattern of the panels provides bi-directional strength and facilitates easy layout and fabrication.
Micro-Mesh Molded Grating
The 1/2” square opening of Micro-Mesh molded FRP gratings is ADA conforming and makes them popular for applications in the public way. Available in 1” or 1-1/2” depths, Micro-Mesh has bi-directional strength which facilitates efficient layout and fabrication.
Available in the full range of resins offered for molded products, Micro-Mesh surface options are concave meniscus, optional
smooth (sanded) surface, or optional coarse or fine grit surfaces.
The 1/2” square opening of Micro-Mesh molded FRP gratings is ADA conforming and makes them popular for applications in the public way. Available in 1” or 1-1/2” depths, Micro-Mesh has bi-directional strength which facilitates efficient layout and fabrication.
Available in the full range of resins offered for molded products, Micro-Mesh surface options are concave meniscus, optional
smooth (sanded) surface, or optional coarse or fine grit surfaces.
Molded Rectangular Mesh Grating
Available in 1” deep, 1” x 4” pattern, rectangular mesh FRP gratings are commonly used for walkways and trench applications. When selecting rectangular mesh grating it is important to specify the span (rectangular opening) of the grating perpendicular to the
supporting structure.
All products are available with the concave meniscus surface or the optional grit surface (coarse or fine grit).
Available in 1” deep, 1” x 4” pattern, rectangular mesh FRP gratings are commonly used for walkways and trench applications. When selecting rectangular mesh grating it is important to specify the span (rectangular opening) of the grating perpendicular to the
supporting structure.
All products are available with the concave meniscus surface or the optional grit surface (coarse or fine grit).
Specification(mm) |
Panel size(mm) |
Weight(kg) |
Customize |
38*38*25 |
1220*3660 |
54 |
yes
|
38*38*30 |
1220*3660 |
70 |
|
38*38*38 |
1220*3660 1000*4007
|
88 81
|
|
50*50*50 |
1220*3660 |
98 |
|
19*19*38*38*30 |
1075*3626 |
72 |
|
38*38*65 |
1030*4040 |
141 |
|
40*40*40 |
1010*4040 |
81 |
|
19*19*38*38*38 |
1220*3660 |
92 |
|
25*25*50*50*30 |
1220*3660 |
62 |
Product Details Show
Smooth surface of frp grating
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Gritted surface of frp grating
Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
Concove surface of frp grating
Frp grating with concave surface can customized size
Yellow, green, black, grey, transparent, etc .Customized color are available.
Yellow, green, black, grey, transparent, etc .Customized color are available.
Product Displays
Our producing types of frp grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.
Our factory
Related products
Contact us
If you are intersted in 38*38*30 heavy duty offshore grating floor GRP FRP walkway plastic grating, please feel free to contact us!
