Customizable Fiberglass Ground Grid Car Wash Room Trench Grid Cover Farming FRP Grid Tree Grate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Reinforce Plastic Molded Walkway Floor Pigeon Lofts Frp Fiberglass GratingNegotiableMOQ: 1 -
Light Weight Fiberglass Plastic Reinforced Walkway Frp Grating FRP Car Wash Trench Frp Drainage Grating Floor PanelNegotiableMOQ: 1
-
Glass Fiber Reinforced Plastic Industrial Flume Cover Plate Water GrilleNegotiableMOQ: 1
-
Fiber Sheet Price With Heavy Load 400mm Width FRP Plates Walkway Roof for Solar SystemNegotiableMOQ: 1
-
30mm Thickness Fiberglass Pigeon Loft Floor Pigeon RacingNegotiableMOQ: 1
Product Description
Customizable Fiberglass ground grid car wash room trench grid cover Farming FRP grid tree grate
What Is FRP Grating?
FRP Grating (Fiberglass Reinforced Plastic) is also known as glass reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That’s why you frequently see FRP used around saltwater for walkways, docks, and hand rails. FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it. FRP is a structural product that can be weight bearing between spans.
Work with our fiberglass grating service to ensure your flooring, handrails, walls and decks both indoors and out are fully
protected against a wide range of uses and environments.
FRP Grating (Fiberglass Reinforced Plastic) is also known as glass reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That’s why you frequently see FRP used around saltwater for walkways, docks, and hand rails. FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it. FRP is a structural product that can be weight bearing between spans.
Work with our fiberglass grating service to ensure your flooring, handrails, walls and decks both indoors and out are fully
protected against a wide range of uses and environments.
Resin: Ortho Polyester (GP), Iso polyester (ISO) , Vinyl ester (VE) , Phenolic

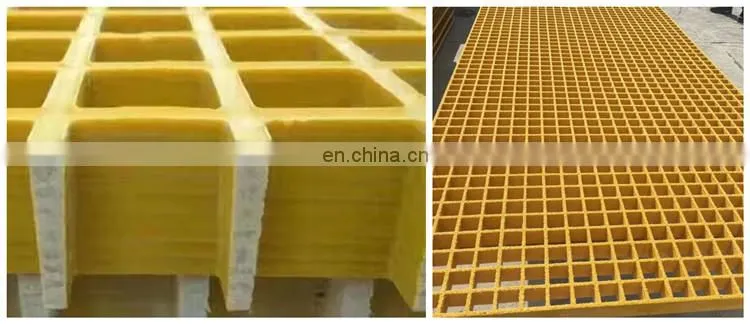

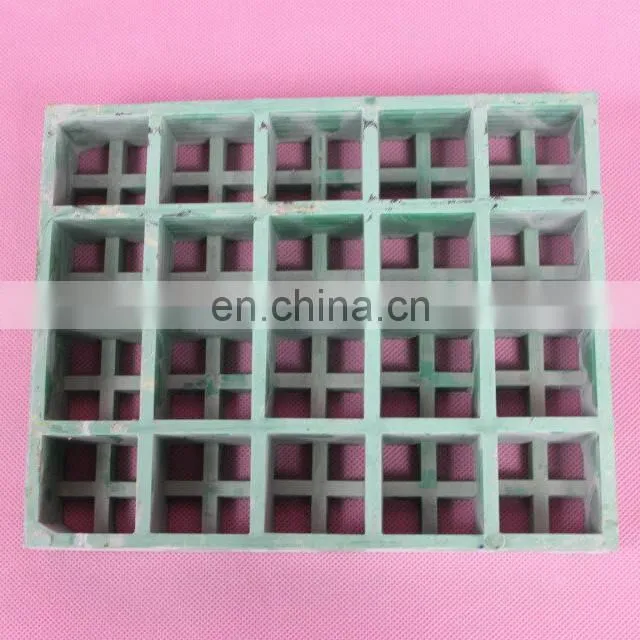

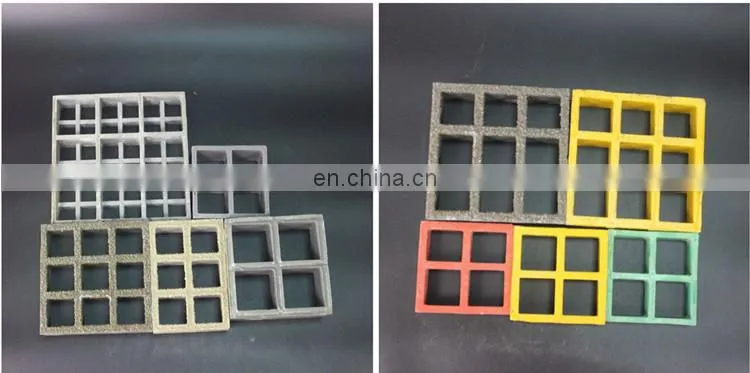

Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up) / 40x40mm (down), 19x19 / 38x38mm, 12.6x12.6x12.6/38.1x38.1mm
Surface: Grit top, concave, smooth, covered.
Chemical Resistance: VE > ISO > GP
Special grating: Static conductive grating, anti-static grating, translucent grating.

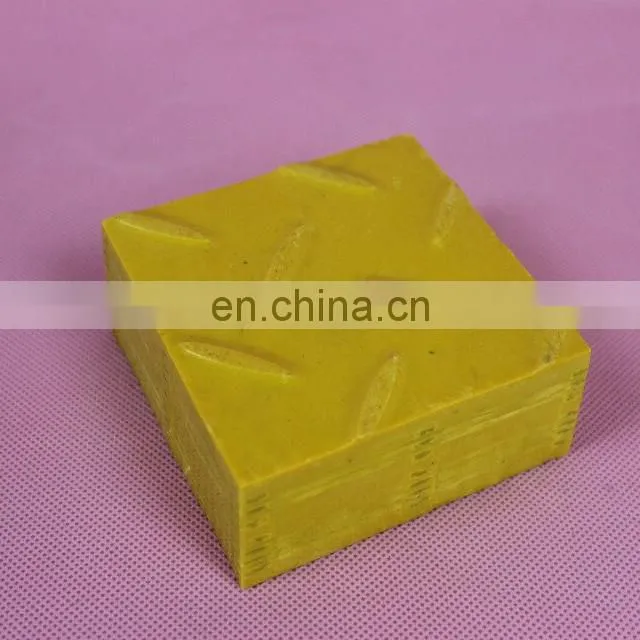

Covered grating: with 3-10mm FRP plate molded on the grating, top surface can be smooth, grit top, chequered plate (two designs)
Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up) / 40x40mm (down), 19x19 / 38x38mm, 12.6x12.6x12.6/38.1x38.1mm
Surface: Grit top, concave, smooth, covered.
Chemical Resistance: VE > ISO > GP
Special grating: Static conductive grating, anti-static grating, translucent grating.
Covered grating: with 3-10mm FRP plate molded on the grating, top surface can be smooth, grit top, chequered plate (two designs)
Resin Base |
Description |
Corrosion Resistance |
Available Colour |
Max.Oper.Tem |
Vinyl Ester |
Superior Corrosion Resistance and Fire Retardant |
Excellent |
Dark gray Orange Yellow |
110℃ |
Isophthalic |
Industrial Grade Corrosion Resistence and Fire Retardant |
Very Good |
Green Yellow Light Grey |
105℃ |
Orthophthalic |
Moderate Corrosion Resistence and Fire Retardant |
Normal |
Green Light Grey |
70℃ |

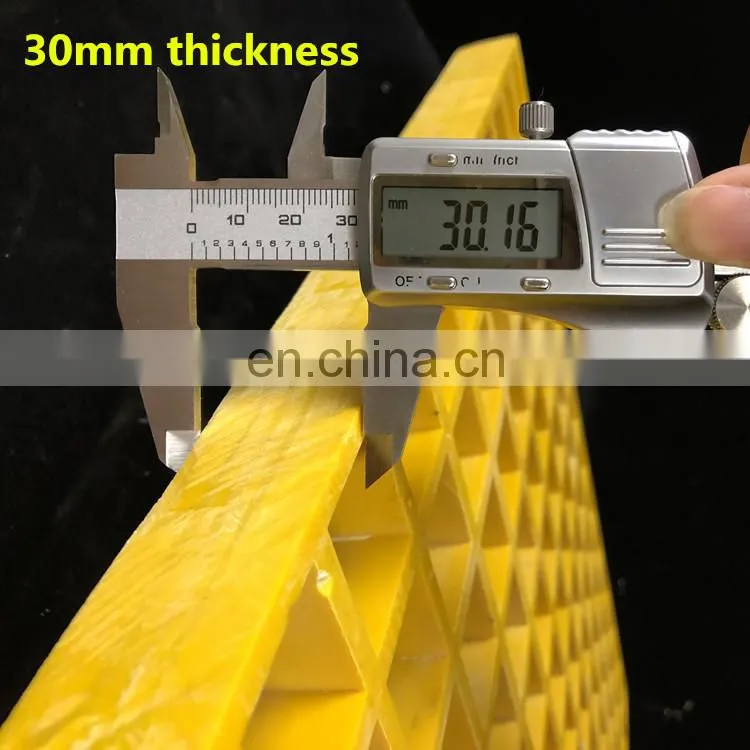

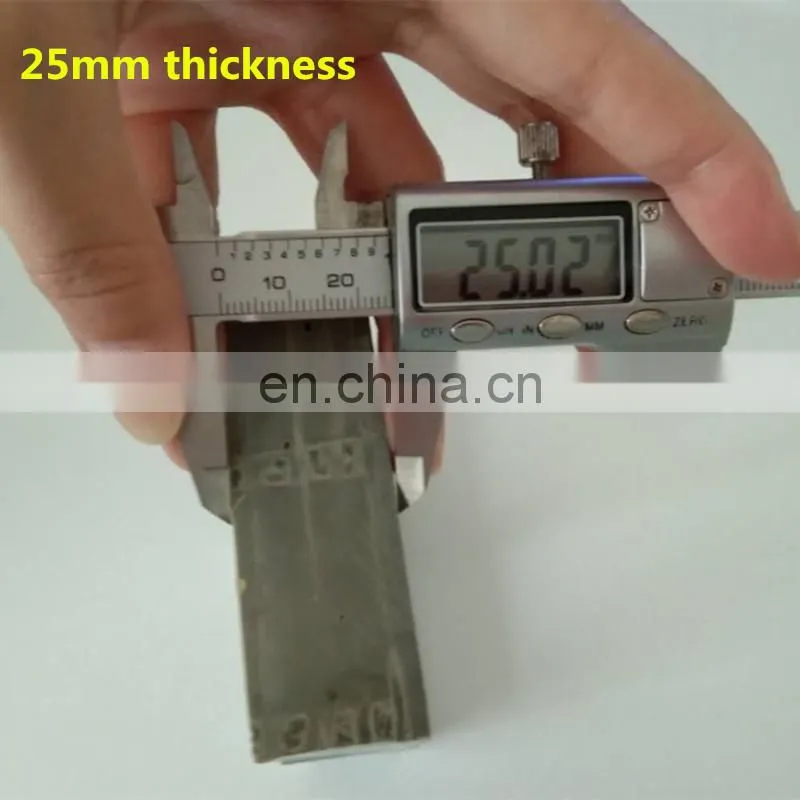

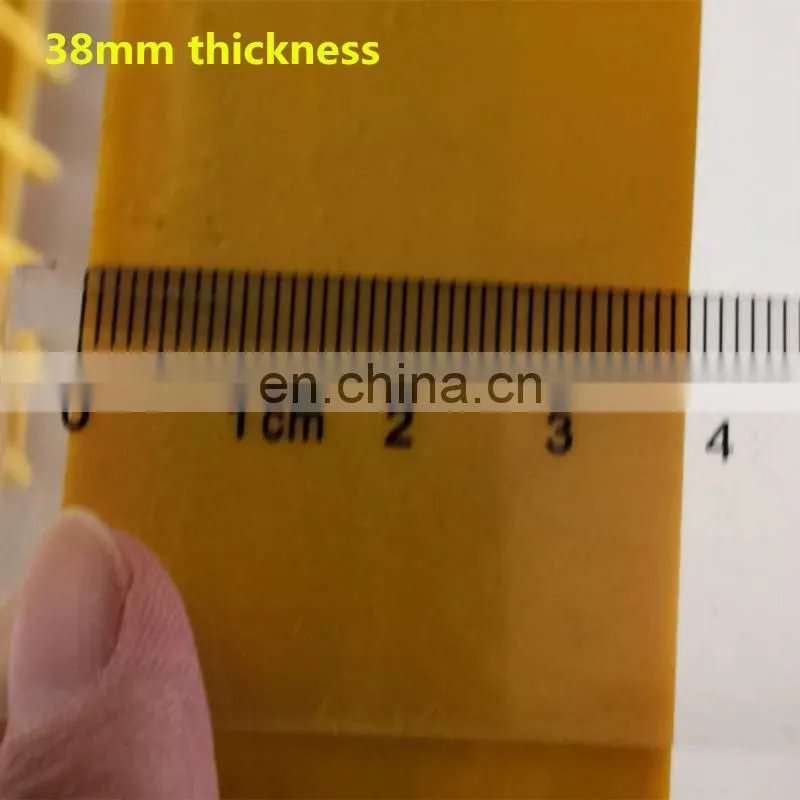

Frp grating Thickness:any between 12.6mm to 63mm (such as 12.6mm, 15mm, 20mm, 25mm, 30mm, 33mm, 38mm, 40mm, 50mm, 63mm)

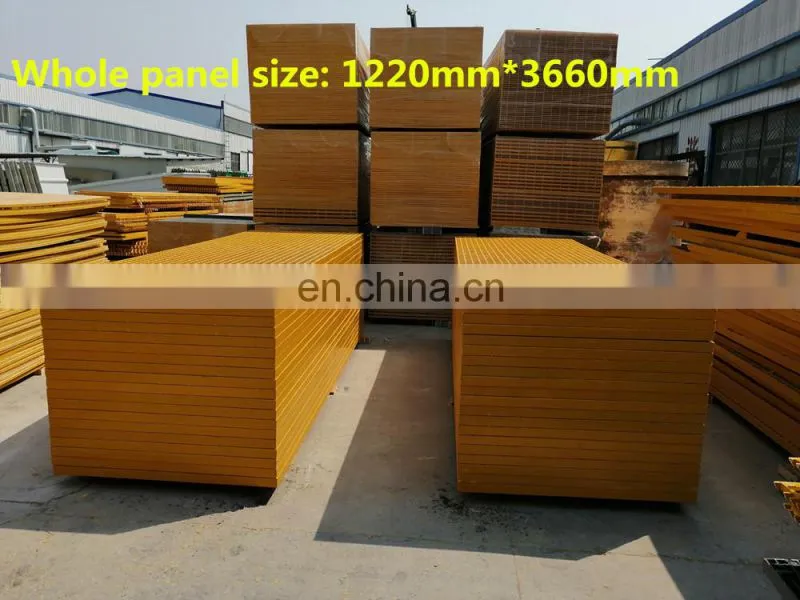

Panel size: 3’x8’, 3’x10’, 3’x12’, 4’x8’,4x10’, 4’x12, 5’x13’,

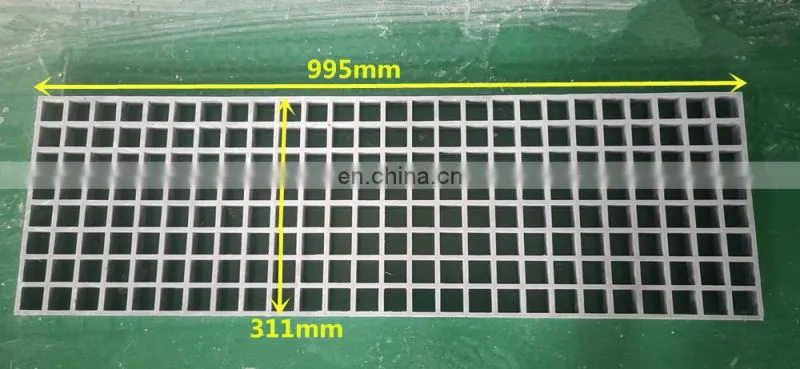

We can also cut into any size less than the above panel size.

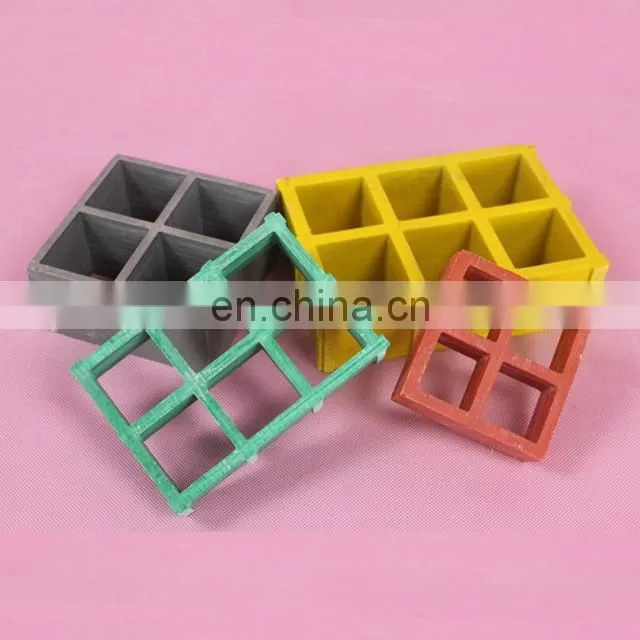

FRP grating Color: Green, yellow, grey, red, black, or any option to you
You can choose the colors according to the usage of the fiberglass grating
Install clips: Type M, L ,C , J from stainless steel 316L
The clips can fix the panel by panel well.
New Strength from FRP Grating:
Versus structural timber: FRP is resistant to warping, rotting and decay due to moisture and water exposure. Insects are also less able to damage FRP compared to many industrial woods. Versus structural metals: fiberglass reinforced plastic grating will not rust like steel or dent in low-impact situations like aluminum often does.
Versus conductors: FRP is also a poorer conductor of electricity, providing safety to installers and future workers standing on the FRP flooring and grating. The material is also a non-sparking flooring that can help reduce the risk of electrical shock.
Versus structural timber: FRP is resistant to warping, rotting and decay due to moisture and water exposure. Insects are also less able to damage FRP compared to many industrial woods. Versus structural metals: fiberglass reinforced plastic grating will not rust like steel or dent in low-impact situations like aluminum often does.
Versus conductors: FRP is also a poorer conductor of electricity, providing safety to installers and future workers standing on the FRP flooring and grating. The material is also a non-sparking flooring that can help reduce the risk of electrical shock.
FRP grating advantage:
● Corrosion Resistance
● Anti-slippery
● Light Weight but High Loaded Strength
● Various Sizes and Colors Available
● Easy Installation and Maintenance
● Corrosion Resistance
● Anti-slippery
● Light Weight but High Loaded Strength
● Various Sizes and Colors Available
● Easy Installation and Maintenance
Customizable Fiberglass ground grid car wash room trench grid cover Farming FRP grid tree grate
FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Welcome your inquiry about FRP grating anytime.
