High Strength Durable GRP/FRP Molded Mesh Walkway Floor Grating Plastic Fiberglass Anti-slip Grate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP Fiberglass Lattice Panels Frp Checkered Plate for DeckNegotiableMOQ: 1 -
38*38mm Mesh Size Frp Plastic Composite Molded Floor Grating Anti-slip Fiberglass Panel Frp GratingNegotiableMOQ: 1
-
Molded Gratings | FRP Grating | Fibergrate Fiberglass Reinforced Plastic GratingNegotiableMOQ: 1
-
38*38*30 Composite Fiberglass Plastic Walkway GratingNegotiableMOQ: 1
-
Plastic Grid Sheets Pigeons Floor Plastic Grid PanelNegotiableMOQ: 1
Product Description
High Strength Durable Molded Pultruded Mesh Walkway floor Fiberglass FRP/GRP grating plastic Anti-slip Grate
Glassfiber reinforced plastic (FRP) grid and fiberglass reinforced plastic plate, is a kind of glass fiber reinforced material,
unsaturated polyester resin as matrix, through special processing and become a kind of plate material, with lots of blank spaceFRP gratings can be used as structure materials, used as a corrosion environment of ship deck stair floor trench cover platform plank road with corrosion such as flame retardant non-magnetic insulated colorful sample a variety of alternative style form, etc
unsaturated polyester resin as matrix, through special processing and become a kind of plate material, with lots of blank spaceFRP gratings can be used as structure materials, used as a corrosion environment of ship deck stair floor trench cover platform plank road with corrosion such as flame retardant non-magnetic insulated colorful sample a variety of alternative style form, etc
We can produce many color of Fiberglass FRP/GRP grating plastic Anti-slip Grate, such as yellow, red, green, blue, white,black We also accept customized color, if you need other colors, please give me the color card number, we can produce it as your required
Fiberglass FRP/GRP grating plastic Anti-slip Grate is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Our product passes a whole series of well known third party tests with the fire and mechanical properties, and the product sells well all over the world and has a good reputation.
Specification
FRP grating Resin Systems |
||||||||||||
Resin type |
Resin Base |
Description |
Corrosion Resistance |
Flame Spread Rating A STM E84 |
Available color |
Max.order Temp |
||||||
VEFR-20 |
Vinyl Ester |
superior corrosion resistance and fire retardant |
Excellent |
Class1, 20 or less |
Yellow, green, white , black, blue, orange |
230oF |
||||||
IFR-25 |
Isophthalic polyester |
Industrial Grade Corrosion Resistance and fire retardant |
very good |
Class1,25 or less |
Dark Gray, green |
221oF |
||||||
FG-20 |
Isophthalic polyester |
Food grade corrosion resistance and fire retardant |
Very good |
Class 1, 20 or less |
Light gray, light green |
221oF |
||||||
CFR-25 |
Orthophthalic polyester |
Moderate corrosion resistance and fire retardant |
Moderate |
Class1,5 or less |
Green yellow light gray drak gray |
212oF |
||||||
MP-4 |
Phenolic |
Low smoke and superior fire resistance |
very good |
Class 1,10 or less |
Reddish-brown |
356oF |
||||||
IFR-10 |
Isophthalic polyester |
Industrial Grade Corrosion Resistance and Extra fire retardant |
very good |
Class 1,10 or less |
custom |
221oF |
||||||
Fiberglass FRP/GRP grating plastic Anti-slip Grate Surface Type:we have many different surface, such as Concave surface,gritted surface. Flat surface,solid top gritted surface, solid top checker plated surface and so on
Specifications(mm) |
a*b(mm) |
weight(kg) |
mesh size: 38*38mm thickness:25mm |
1220*3660 |
54 |
mesh size 38*38mm, thickness:30mm |
1220*3660 |
70 |
mesh size 38*38mm , thickness:38mm |
1220*3660
1000*4007
|
88
81
|
mesh size 50*50mm, thickness:50mm |
1220*3660 |
98 |
mesh size :19*19*38*38 thickness:30mm |
1075*3626 |
72 |
mesh size :38*38mm thickness:65mm |
1030*4040 |
141 |
mesh size 40*40mm thicikness:40mm |
1010*4040 |
81 |
mesh size 19*19*38*38 thickness:38mm |
1220*3660 |
92 |
mesh size 25*25*50*50 thickness:50mm |
1220*3660 |
62 |

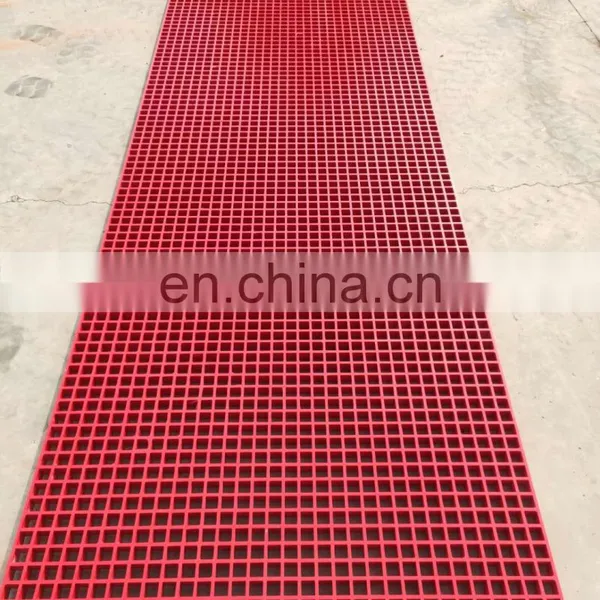

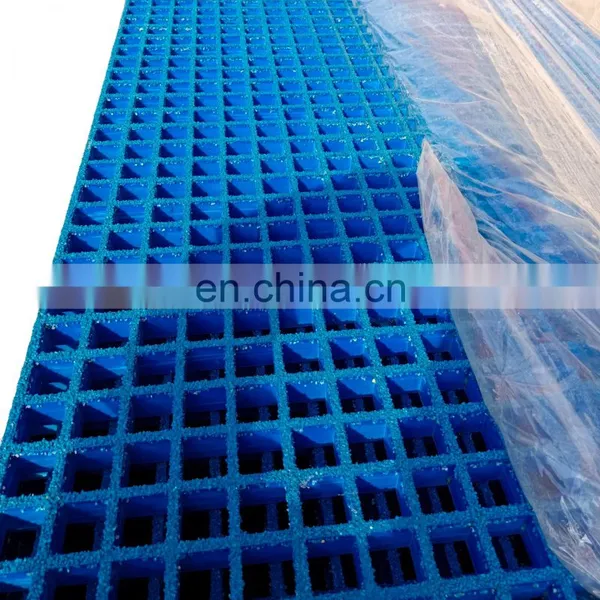

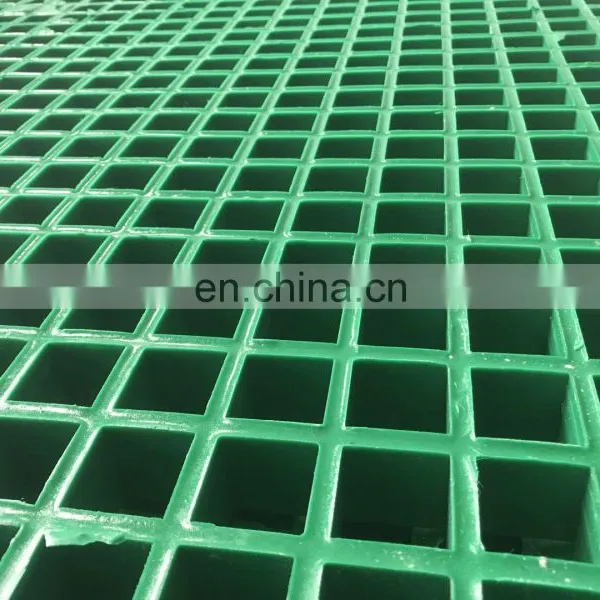

product displays
Accessories
Product production process
Fiberglass FRP/GRP grating plastic Anti-slip Grate production process
Our Factory
Process &Packing
After sales service
1.Provide install video if necessary and other install documents2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
FAQ
1, high quanlity and best price Our company is Professional manufacturer , The materials we import it from South Asia uaually
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the drift eliminator you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the drift eliminator you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
