Underground Galvanized Steel Frame Duct Rod Fiber Glass Wire Cable Snake Running Rod Duct Rodder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
13mm Cable Rodder Fiberglass Fish Conduit Cable Pulling Duct RoddersNegotiableMOQ: 1 -
30m Fish Tape Fiber Cable Puller Wire Puller ElectricNegotiableMOQ: 1
-
4mm 30m Fiberglass Electrical Tools Fish Tape /wire_pullerNegotiableMOQ: 1
-
Electric Fiberglass Fish Tape /communication Wire PullerNegotiableMOQ: 1
-
3mm Electrical Fish Tape Wire PullerNegotiableMOQ: 1
Product Description
Underground Galvanized Steel Frame Duct Rod Fiber Glass Wire Cable Snake Running Rod duct rodder
Duct Rodders are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature. This type of rod has high tensile strength and flexibility. It was covered by a high density polyethylene engineering plastic as its protect layer, which make duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, which make them safe for use in cable occupied duct.
High Density polyethylene (Grade: for the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating. Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.
High Density polyethylene (Grade: for the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating. Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.
Product name |
11mm Fiberglass cable guide duct rodder with wheels FRP duct rod |
Material |
Fiberglass + ABS |
Color |
Red, green, blue, yellow, black, white and so on, accept customized color. |
Rod diameter |
4mm-18mm |
Rod length |
50-500m |
Frame size |
1300mm*450mm*1330mm, 1200mm*420mm*1220mm, 980mm*350mm*1000mm, 680mm*240mm*700mm, 420mm*180mm*400mm |
Density |
>1.9g/m³ |
Diameter tolerance |
±0.10mm |
Work situation temperature |
-40ºC~+80ºC |
Min pulling strength |
4000N±5% |

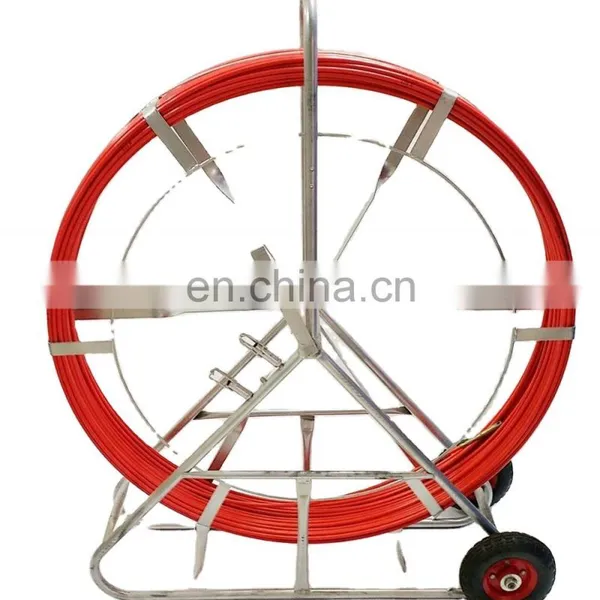

we have 3 type frame, please check next picture. we accept customized frame.
11mm Fiberglass cable guide duct rodder with wheels FRP duct rod Frame and reel information:
1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand.
2. Tilting type handle, convenient for pushing and pulling.
3. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
4. Frame color: According to customer requirements
1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand.
2. Tilting type handle, convenient for pushing and pulling.
3. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
4. Frame color: According to customer requirements
Color: red, green, blue, yellow, black, white and so on, accept customized color.
Size: Rod diameter:4mm-18mm rod length:10m-1000m
Size: Rod diameter:4mm-18mm rod length:10m-1000m
1,High-quality inner core
No-alkali sand high-density fiber with glass fiber reinforced plastic, strong and durable, longer life
No-alkali sand high-density fiber with glass fiber reinforced plastic, strong and durable, longer life
2,High-quality plastic steel wire and meter mark
The new type has higher hardness, full flexibility and durability
The new type has higher hardness, full flexibility and durability
3,Thickened steel pipe
Thicker steel pipe, not easy to rust, export quality, longer service life
Thicker steel pipe, not easy to rust, export quality, longer service life
4,Wear-resistant rubber wheels
Non-slip and wear-resistant rubber wheels, easy to implement, durable and wear-resistant, longer use time
Non-slip and wear-resistant rubber wheels, easy to implement, durable and wear-resistant, longer use time
5,Frame
Reinforced steel frame easily push and pull
Reinforced steel frame easily push and pull
6,Copper head
Durable , smooth and strong do not fall off
Durable , smooth and strong do not fall off
Product details
11mm Fiberglass cable guide duct rodder with wheels FRP duct rod,also called fiberglass duct rodder,is a powerful auxiliary tool used for rope traction in the pipe.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow
channel. Glass fiber reinforced plastic wire threading appliance has the advantages of saving time, saving
effort and improving efficiency. It is selected as the special tool for pulling cables and optical cables in many fields such as telecommunications, power industry and construction. It also can measure the length of the pipeline, pipe cleaning, acceptance of pipeline.
Duct Rodder is composed of fiber glass rod, which is extruded by fiber glass and high strength resin at high temperature.High temperature strength and bending properties, which make it go through narrow pipes easily. Outer protect layer is made of ABS, which has good anti-UV capability. Its surface has the advantage of smooth, wear-resistant and long service. The fiberglass rod is the basic element of the duct rodder, large proportion of high quality glass fiber (80%) is added. Fiberglass duct rodder is enhanced with ABS coating and copper wire to ensures its stability under shear stress. Also polyester resin is embedded together to form a compact bound core. We can add copper wire and steel wire inside the fiberglass rod to make the rod traceable and electric.
Duct rodder frame, used to place, push and draw back the fiberglass rod, commonly is composed of six components: fiberglass rod, copper head, rod guide, rod grapple, grip,steel frame. The welded frame, made of high quality steel, is strong enough to withstand the weight of the fiberglass rod. With powder coated or galvanized, the frame is rust resistant and corrosion resistant. At the same time, duct rodder with different color available can meet customers' various requirements.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow
channel. Glass fiber reinforced plastic wire threading appliance has the advantages of saving time, saving
effort and improving efficiency. It is selected as the special tool for pulling cables and optical cables in many fields such as telecommunications, power industry and construction. It also can measure the length of the pipeline, pipe cleaning, acceptance of pipeline.
Duct Rodder is composed of fiber glass rod, which is extruded by fiber glass and high strength resin at high temperature.High temperature strength and bending properties, which make it go through narrow pipes easily. Outer protect layer is made of ABS, which has good anti-UV capability. Its surface has the advantage of smooth, wear-resistant and long service. The fiberglass rod is the basic element of the duct rodder, large proportion of high quality glass fiber (80%) is added. Fiberglass duct rodder is enhanced with ABS coating and copper wire to ensures its stability under shear stress. Also polyester resin is embedded together to form a compact bound core. We can add copper wire and steel wire inside the fiberglass rod to make the rod traceable and electric.
Duct rodder frame, used to place, push and draw back the fiberglass rod, commonly is composed of six components: fiberglass rod, copper head, rod guide, rod grapple, grip,steel frame. The welded frame, made of high quality steel, is strong enough to withstand the weight of the fiberglass rod. With powder coated or galvanized, the frame is rust resistant and corrosion resistant. At the same time, duct rodder with different color available can meet customers' various requirements.
11mm Fiberglass cable guide duct rodder with wheels FRP duct rod Features and Benefits：
1. Strong non-conductive fiberglass rod construction
2. Copper plated drawing head
3. Good elasticity
4.Corrosion resistance is strong
5.Small and exquisite, carry convenience
1. Strong non-conductive fiberglass rod construction
2. Copper plated drawing head
3. Good elasticity
4.Corrosion resistance is strong
5.Small and exquisite, carry convenience
Related Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
